Tripod Adapter

An adapter for using Zivid 3D camera with a tripod.

Main  >  Product  >  3D Cameras  >  ZiVID > Tripod Adapter

Tripod Adapter

The adapter has a standard UNC 1/4″-20 female screw thread that is common for most consumer-grade tripods.

Features

  • 3 x M5 interface for Zivid Two
  • UNC 1/4-20 female screw thread
  • Weight: 23 g

In the box

  • 1 tripod adapter
  • 3 M5 screws
Vital Vision Pte Ltd logo 2022
Model NameTripod Adapter
Material Aluminium 6061-T6
Stainless steel screw

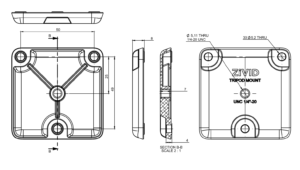

Size (LxWxH) 62 x 62 x 8 mm
Weight23 g
