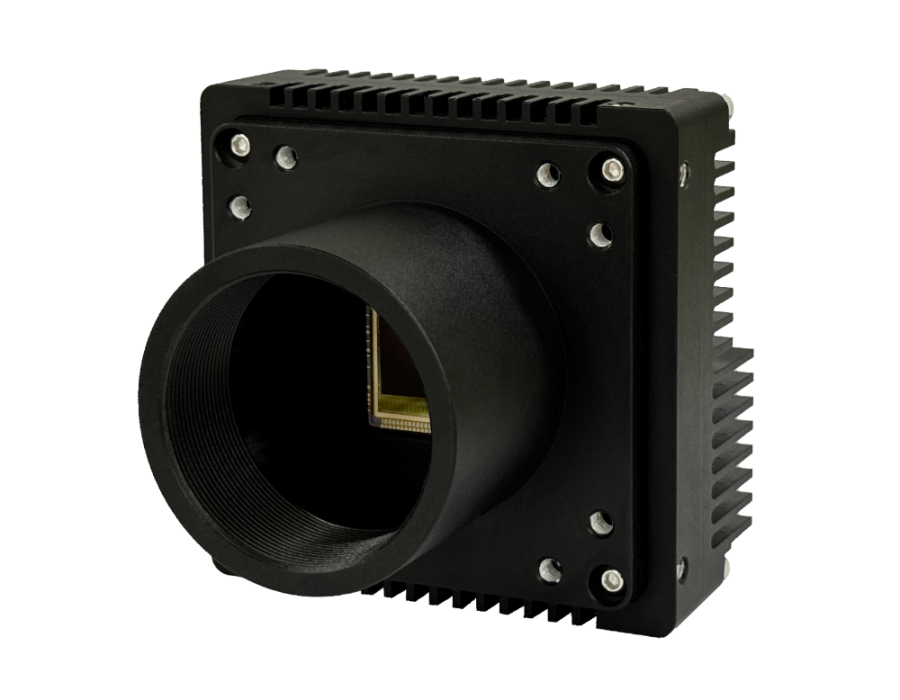

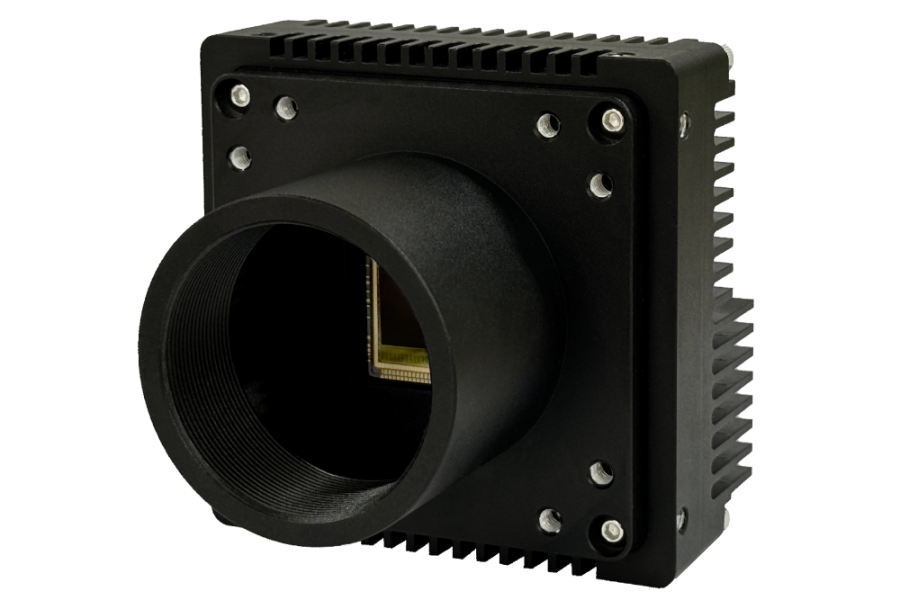

TS12MCL-65C
Highlight Features
- Global Shutter CMOS
- 4096 * 3072 pixels, 5.5μm * 5.5μm
- Frame rate up to 65fps
- High sensitivity and low noise
| Model | TS12MCL-65M | TS12MCL-65C |
|---|---|---|
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 28.16 mm | |
| Resolution | 4096 * 3072 | |
| Pixel Size | 5.5μm * 5.5μm | |
| Max Frame Rate | 65.28fps@8bit，52.53fps@10bit | |
| Bit Depth | 8/10 bit | |
| Dynamic Range | ≥54dB | |
| Data Rate | 826MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / Camera Link CC1 | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 26µs-1s (step: 10µs@8bit, 12µs@10bit) | |
| Analog Gain | 1/2/3/4x | |
| Digital Gain | 0.01-8.00x | |
| Lens Mount | M42 / F Mount | |
| Data Interface | Camera Link | |
| Power interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12-24V(±10%) 1A | |
| Power Consumption | 6.9 W | |
| Dimensions | 80mm x 80mm x 35.2mm (Without adapter) | |
| Operating Temperature | 0-55℃ | |
| Storage Temperature | -20-75℃ | |
