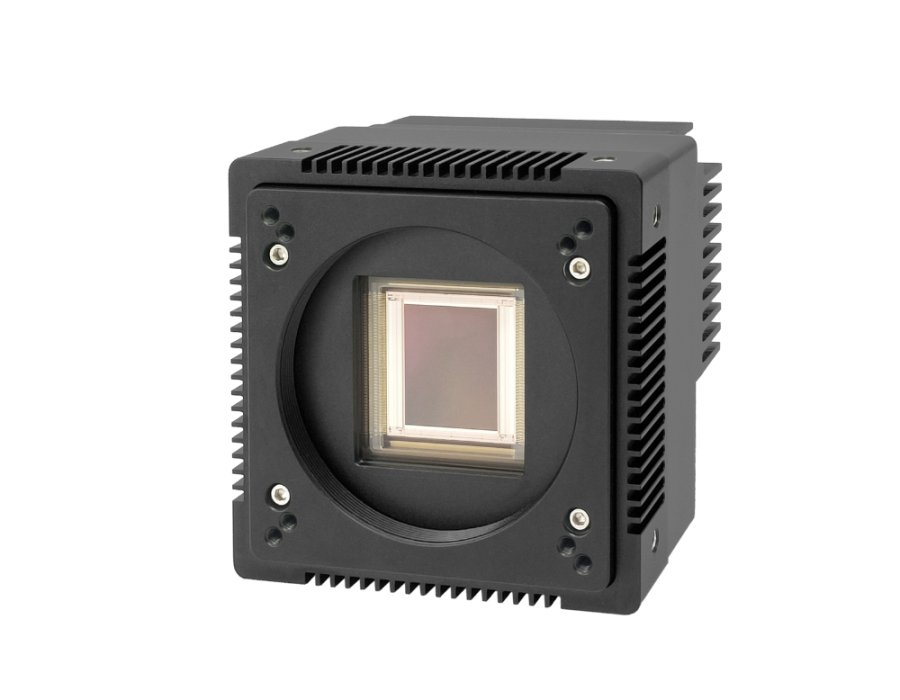

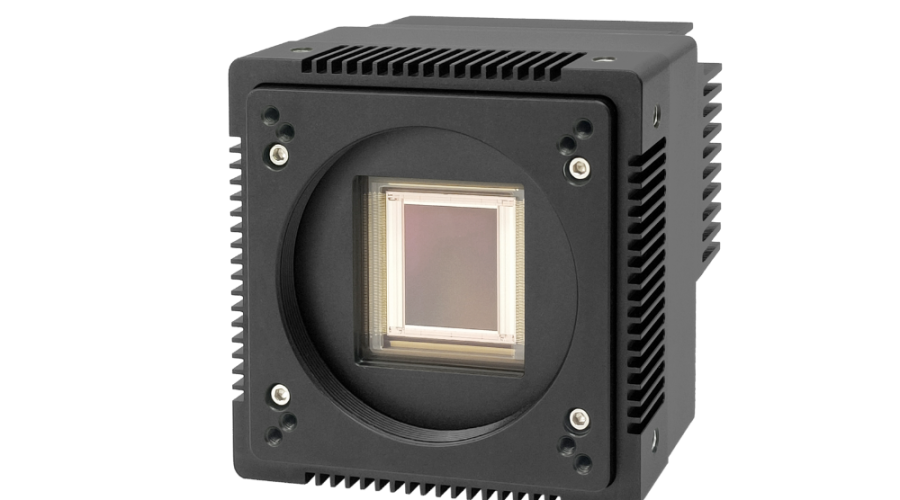

TS21MCXP12-230M
Highlight Features
- Global Shutter CMOS
- 5120 * 4096 pixels, 4.5μm * 4.5μm
- Frame rate up to 231fps
- High sensitivity and low noise
| Model | TS21MCXP12-230M | TS21MCXP12-230C |
|---|---|---|
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 29.50 mm | |
| Resolution | 5120 * 4096 | |
| Pixel Size | 4.5μm * 4.5μm | |
| Max Frame Rate | 231.05fps@8bit，179.60fps@10bit，152.44fps@12bit | |
| Bit Depth | 8/10/12 bit | |
| Dynamic Range | ≥65.7 dB | |
| Data Rate | 4795 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 1μs-10s(Step:1μs) | |
| Analog Gain | 1/2/4x | |
| Digital Gain | 0.004-8.000x | |
| Lens Interface | M58 * 0.75 | |
| Data Interface | CoaXPress12 | |
| Power Interface | HR10A-10R-12PB(71) (Male) | |
| Power Supply | DC12-24V(±10%) 2.5A | |
| Power Consumption | 18.0 W | |
| Dimensions | 80.0mm(W) x 80.0mm(H) x 62.3mm(D) | |
| Operating Temperature | 0-65℃ | |
| Storage Temperature | -20-75℃ | |
