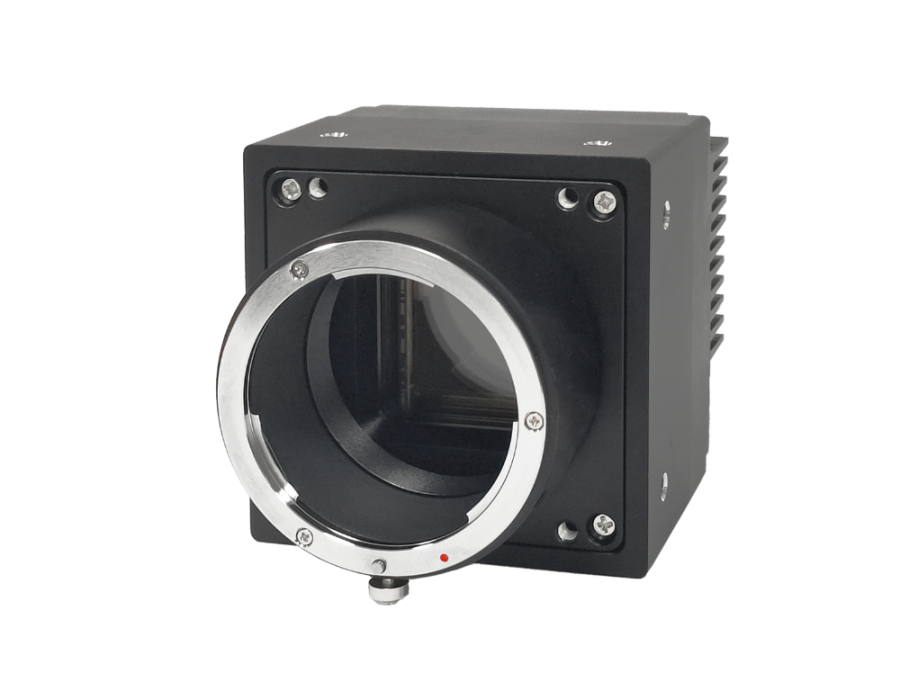

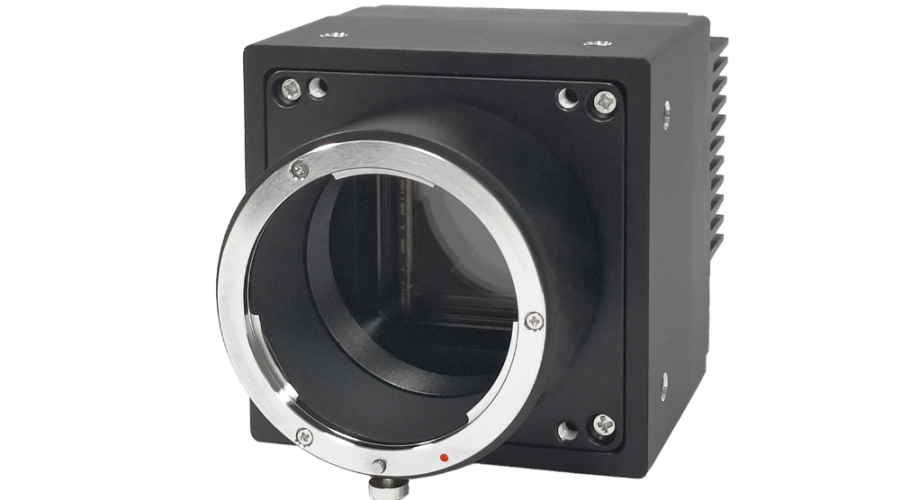

TS25MCXP-85M
Highlight Features
- Global Shutter CMOS
- 5120 * 5120 pixels, 4.5μm * 4.5μm
- Frame rate up to 85fps
- High sensitivity and low noise
| Model | TS25MCXP-85M |
|---|---|
| Sensor Type | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 32.58 mm |
| Resolution | 5120 * 5120 |
| Pixel Size | 4.5μm * 4.5μm |
| Max Frame Rate | 85.099fps@8bit;70.225fps@10bit |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥55 dB |
| Date rate | 2300 MB/s |
| Trigger Mode | Free run / External trigger |
| Trigger Source | External IO / CXP Trigger |
| Exposure Control | Program / Pulse Width |
| Exposure Time | 2μs-10s(Step:1μs ) |
| Analog Gain | 1/1.26/1.87/3.17x |
| Digital Gain | 0.001-8.000x |
| Lens Interface | M58 / F Mount |
| Data Interface | CoaXPress |
| Power Interface | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V 1.5A or PoCXP supply |
| Power Consumption | 9.5W(DC supply) or 10.0W(PoCXP supply) |
| Dimensions | M58 interface: 75mm x 75mm x 52.3mm F interface: 75mm x 75mm x 87.3mm |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
