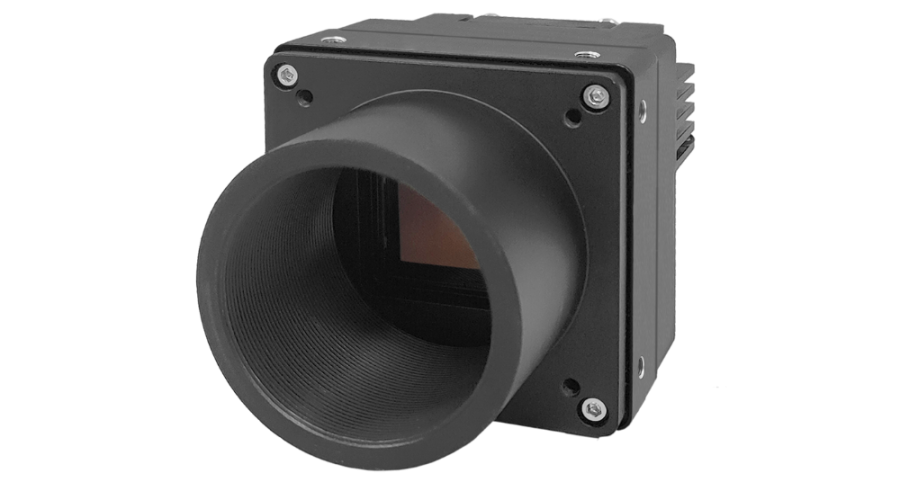

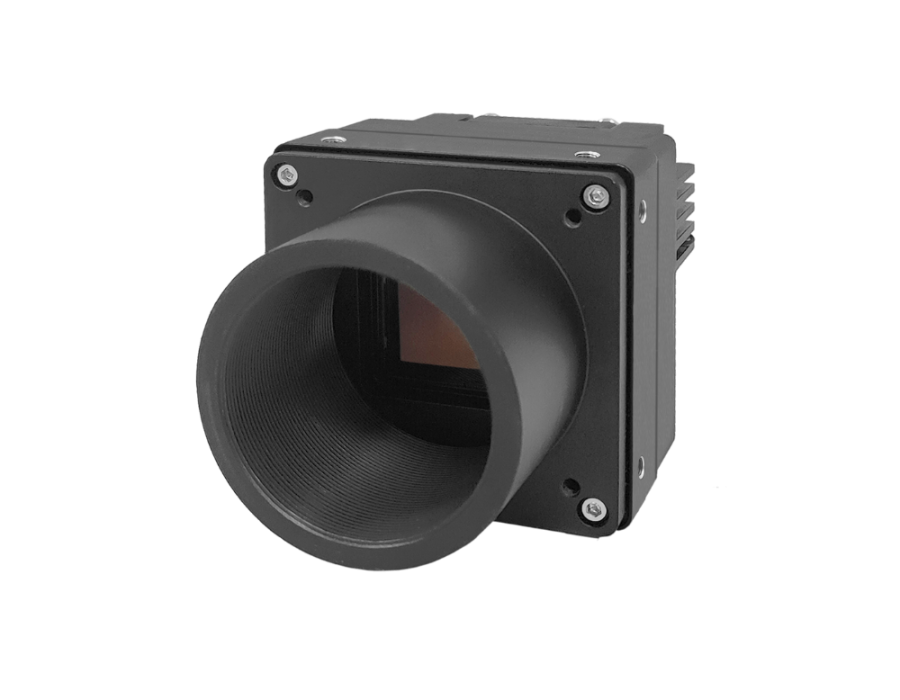

TS31MSCXP-35C
Highlight Features
- Global Shutter CMOS
- 6464 * 4852 pixels, 3.45μm * 3.45μm
- Frame rate up to 35fps
- High sensitivity and low noise
| Model | TS31MSCXP-35M | TS31MSCXP-35C |
|---|---|---|
| Sensor | IMX342 | |
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 27.88 mm | |
| Resolution | 6464 * 4852 | |
| Pixel Size | 3.45μm * 3.45μm | |
| Max Frame Rate | 35.85fps@8bit，30.57fps@10bit，25.52fps@12bit | |
| Data Format | 8/10/12 bit | |
| Dynamic Range | ≥70.8 dB | |
| Data Rate | 1200 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 5μs-10s(Step:6μs) | |
| Analog Gain | 0-24dB | |
| Digital Gain | 0.004-8.000x | |
| Lens Interface | M42 * 1 | |
| Data Interface | CoaXPress BNCx2 | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12-24V(±10%) 2A or PoCXP powered | |
| Power Consumption | 12.6W | |
| Dimensions | 62mm x 62mm x 62.48mm (without adapter lens) | |
| Operating Temperature | 0-55℃ | |
| Storage Temperature | -20-75℃ | |
