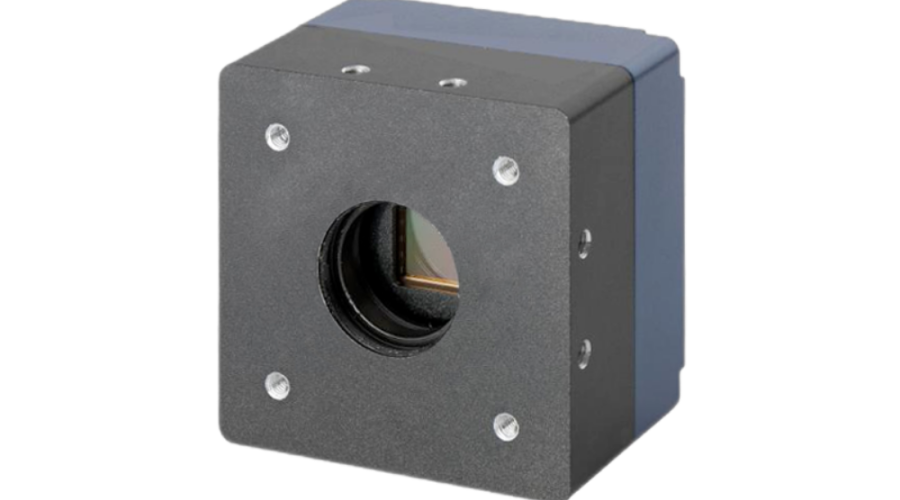

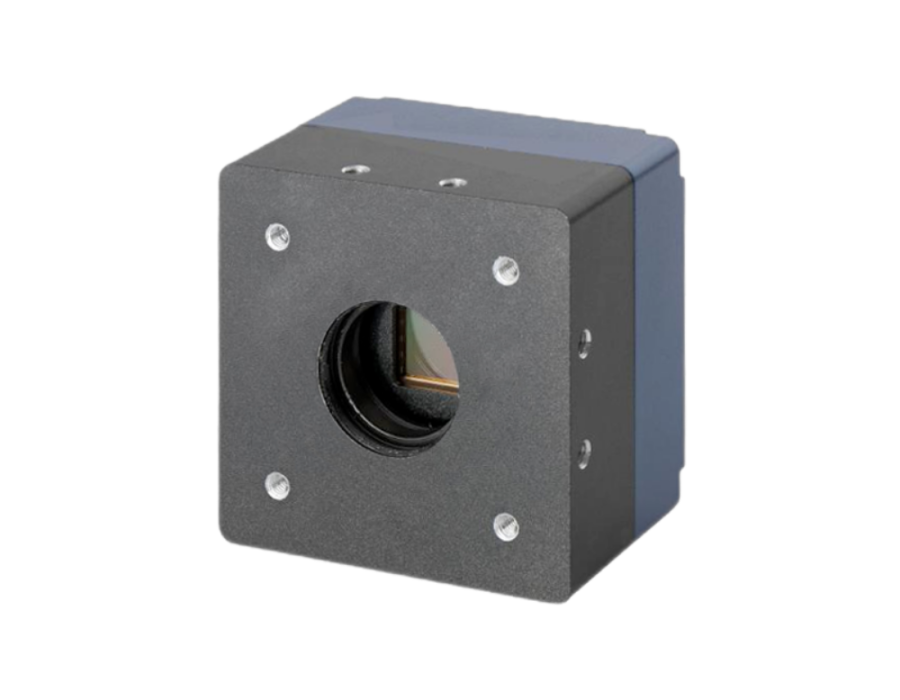

TS4MCL-180C
Highlight Features
- Global Shutter CMOS
- 2048 * 2048 pixels, 5.5μm * 5.5μm
- Frame rate up to 180fps
- High sensitivity and low noise
| Model | TS4MCL-180M | TS4MCL-180C |
|---|---|---|
| Sensor | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 15.93 mm | |
| Resolution | 2048 * 2048 | |
| Pixel Size | 5.5μm * 5.5μm | |
| Max Frame Rate | 179.58fps@10Tap, 149.65fps@8Tap, 45.24fps@4Tap, 22.65fps@2Tap | |
| Bit Depth | 8/10/12bit | |
| Dynamic Range | ≥54.6 dB | |
| Data Rate | 784 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / Camera Link CC | |
| Exposure Control | Timed, Pulse Width Control | |
| Exposure Time | 28μs-5s(Step:1μs) | |
| Analog Gain | 1-3.2x | |
| Digital Gain | 0.01-8.00x | |
| Lens Interface | C Mount | |
| Data Interface | Camera Link | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12V±10% 0.5A | |
| Power Consumption | 3.1 W | |
| Dimensions | 29mm x 29mm x 36.96mm (without adapter) | |
| Operating Temperature | 0-55℃ | |
| Storage Temperature | -20-75℃ | |
