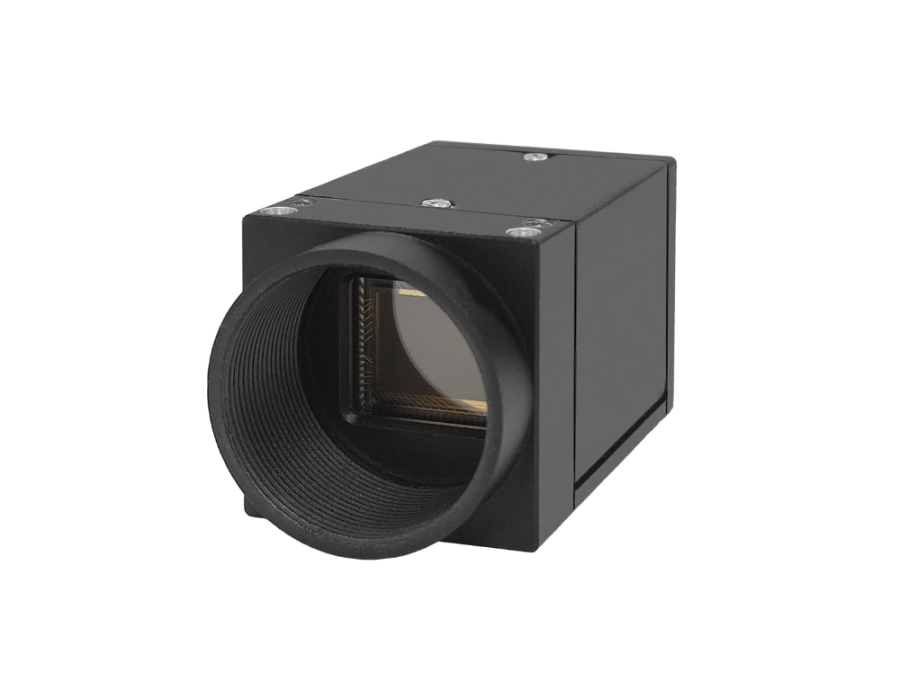

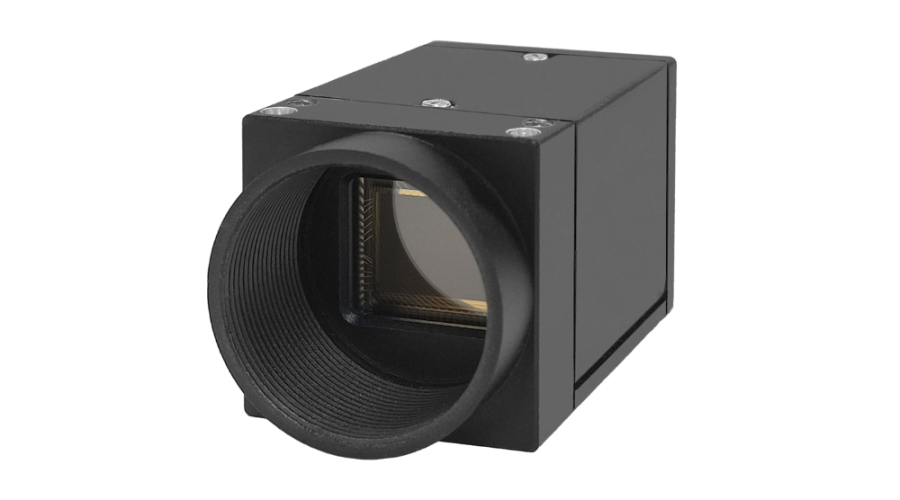

TS5M3CXP-105M
Highlight Features
- Global Shutter CMOS
- 2592 * 2048 pixels, 4.8μm * 4.8μm
- Full frame rate up to 105fps
- High sensitivity and low noise
| Model | TS5M3CXP-105M | TS5M3CXP-105C |
|---|---|---|
| Sensor | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 15.86 mm | |
| Resolution | 2592 * 2048 | |
| Pixel Size | 4.8μm * 4.8μm | |
| Max Frame Rate | 105fps@8bit，87fps@10bit | |
| Bit Depth | 8/10 bit | |
| Dynamic Range | ≥55 dB | |
| Data rate | 550 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | CXP Trigger | |
| Exposure Control | Pulse Width Control, Timed | |
| Exposure Time | 5μs-50s(Step:1μs) | |
| Analog Gain | 1/1.8x | |
| Digital Gain | 0.01-8.00x | |
| Lens Interface | C Mount | |
| Data Interface | CoaXPress | |
| Power Supply | PoCXP supply | |
| Power Consumption | 3.4 W | |
| Dimensions | 29mm(W) x 29mm(H) x 51.77mm(D) (without adapter) | |
| Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-75℃ | |
