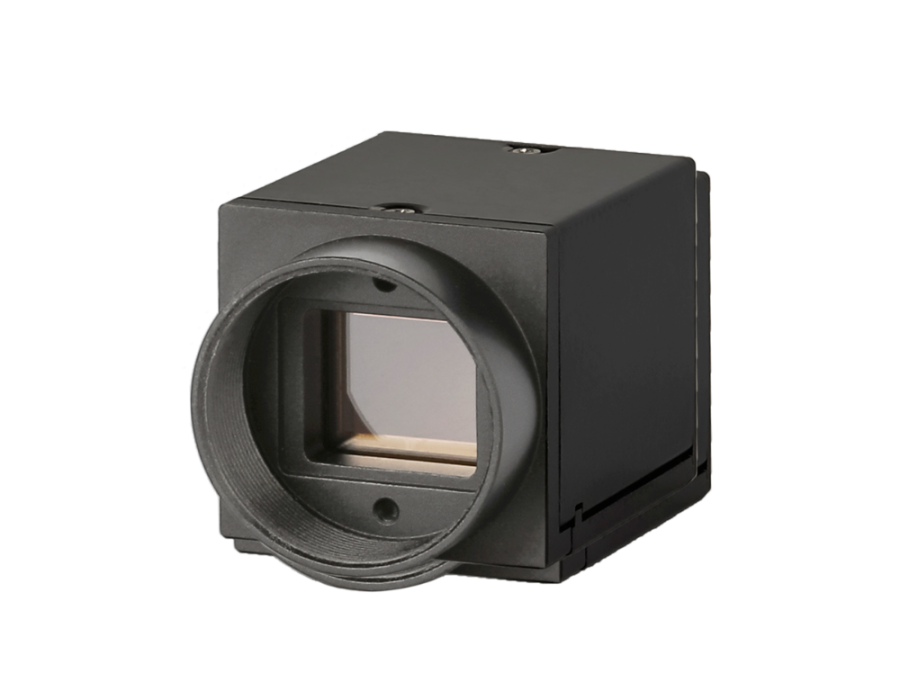

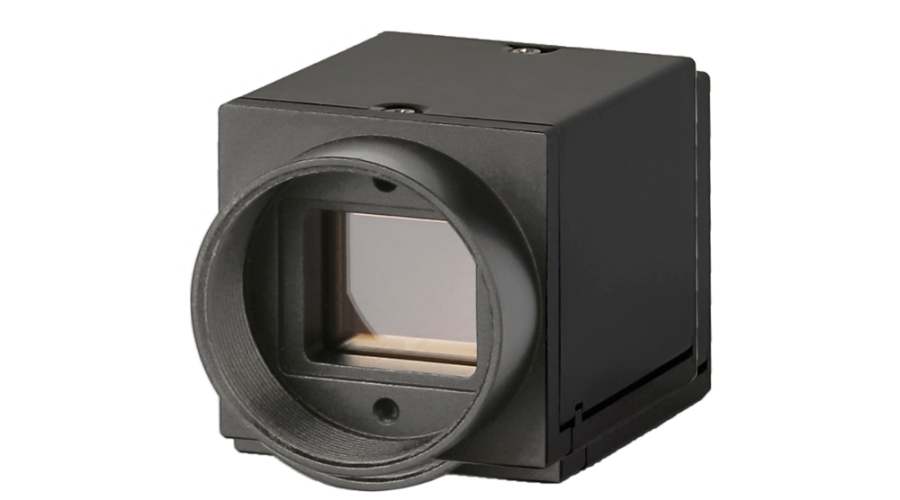

TS5MCL-156M
Highlight Features
- Global Shutter CMOS
- 2560 * 2048 pixels, 5μm * 5μm
- Frame rate up to 156fps
- High sensitivity and low noise
| Model | TS5MCL-156M |
|---|---|
| Sensor | Global Shutter CMOS |
| Image Mode | Mono |
| Optical Size | 16.39 mm |
| Resolution | 2560 * 2048 |
| Pixel Size | 5μm * 5μm |
| Max Frame Rate | 156 fps |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥54 dB |
| Data Rate | 818 MB/s |
| Trigger Mode | Free run / External trigger |
| Trigger Source | Software trigger / Camera Link CC / External IO |
| Exposure Control | Pulse Width Control, Timed |
| Exposure Time | 2μs-10s(Step:1μs) |
| Analog Gain | 1/2/4x |
| Digital Gain | 0.06-8.00x |
| Lens Interface | C Mount |
| Data Interface | Camera Link |
| Power Interface | M5 4-pin |
| Power Supply | DC12-24V(±10%) 1A |
| Power Consumption | 4.2 W |
| Dimensions | 29.0mm(W) x 29.0mm(H) x 43.88mm(D)(Without adapter) |
| Operating Temperature | 0-50℃ |
| Storage Temperature | -20-75℃ |
