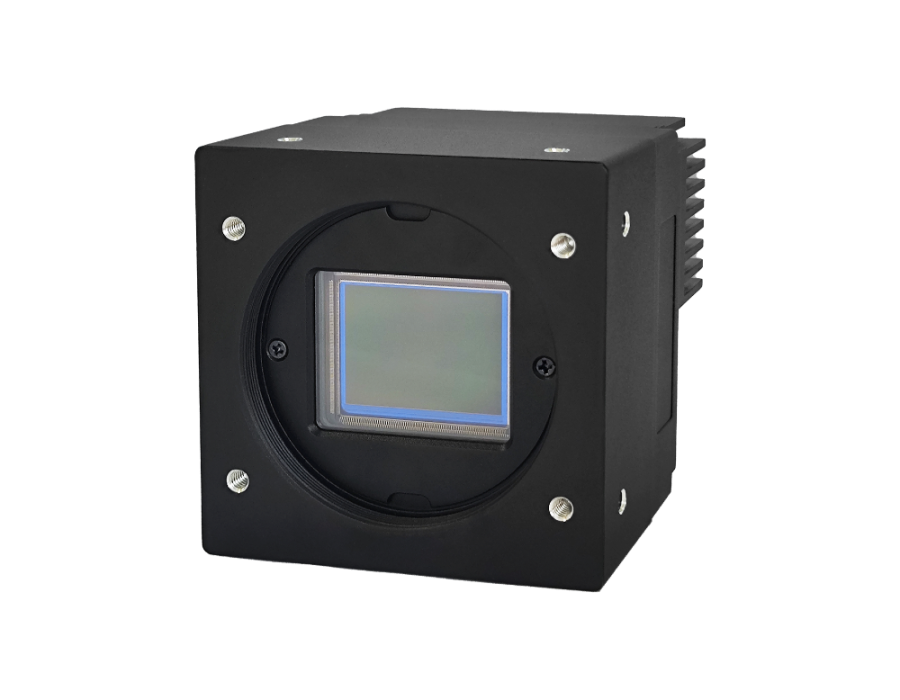

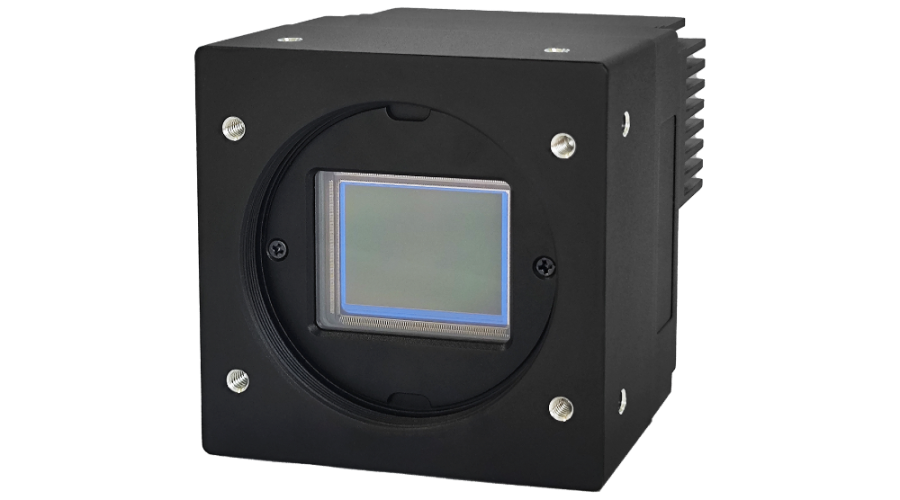

TS65MCXP-71M
Highlight Features
- GMAX3265, Global Shutter CMOS
- 9344 * 7000 pixels, 3.2μm * 3.2μm
- Frame rate up to 71fps
- 8/10 bit output
| Model | TS65MCXP-71M | TS65MCXP-71C |
|---|---|---|
| Sensor Type | GMAX3265 | |
| Image Mode | Mono | Color |
| Optical Size | 37.36 mm | |
| Resolution | 9344 * 7000 | |
| Pixel Size | 3.2μm * 3.2μm | |
| Max Frame Rate | 71.04fps@8bit ; 58.13fps@10bit | |
| Bit Depth | 8/10 bit | |
| Dynamic Range | ≥62 dB | |
| Data Rate | 4750MB/s | |
| Trigger Mode | Free Run / External Trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 12µs-10s (Step: 4µs@8bit, 5µs@10bit) | |
| Analog Gain | 0-32dB | |
| Digital Gain | 0.1-8.0x | |
| Lens Mount | M58 / F Mount | |
| Data Interface | CoaXPres12 | |
| Power Connector | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12V±10% 2.0A | |
| Power Consumption | 15.9 W | |
| Dimensions | 85.0mm(W) x 85.0mm(H) x 89.2mm(D) | |
| Operating Temperature | 0-65℃ | |
| Storage Temperature | -20-75℃ | |
