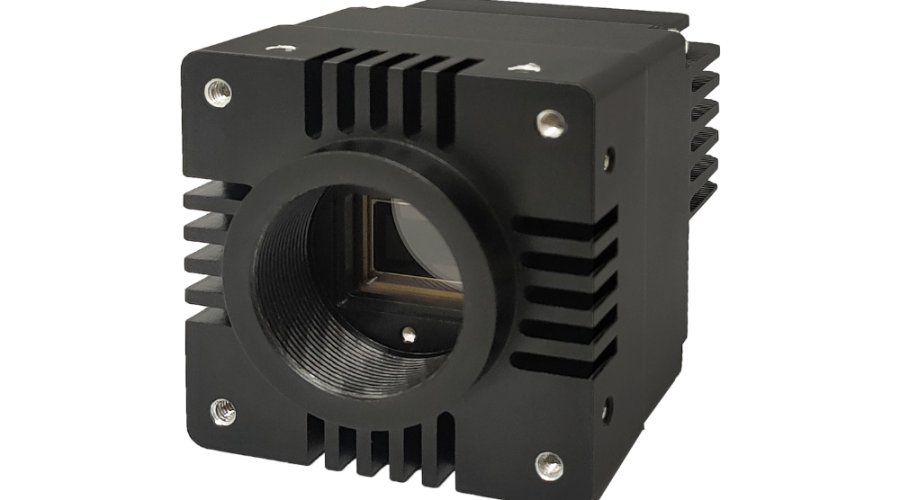

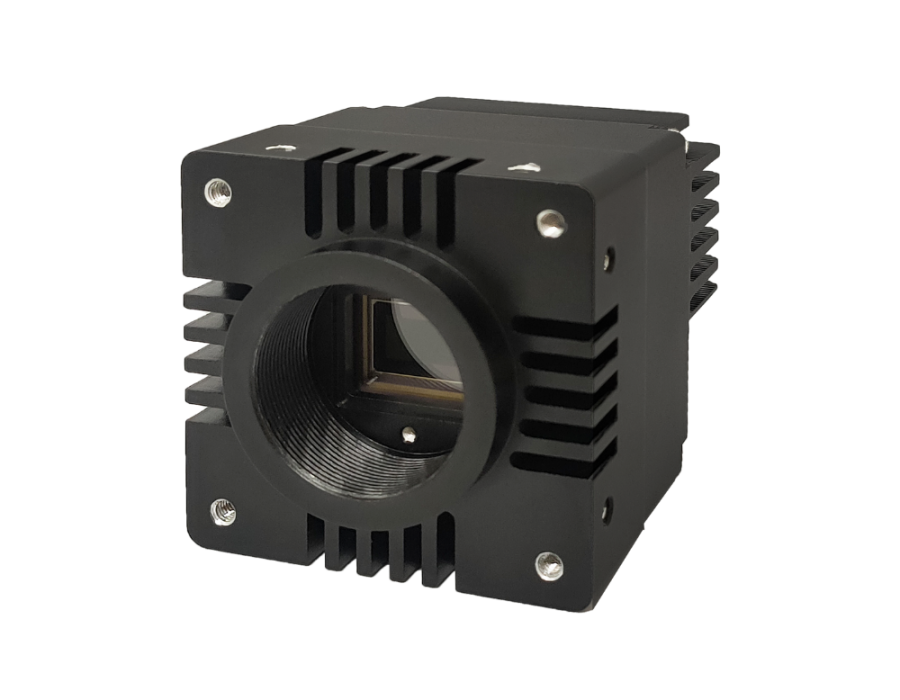

TS9MCXP12-260C
Highlight Features
- Global Shutter CMOS
- 4192 * 2160 pixels, 2.5μm * 2.5μm
- Frame rate up to 260fps
- High sensitivity and low noise
| Model | TS9MCXP12-260M | TS9MCXP12-260C |
|---|---|---|
| Sensor | GMAX2509 | |
| Sensor | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 11.79 mm | |
| Resolution | 4192 * 2160 | |
| Pixel Size | 2.5μm * 2.5μm | |
| Max Frame Rate | 261.56fps@8bit，211.28fps@10bit | |
| Bit Depth | 8/10 bit | |
| Dynamic Range | ≥62.0 dB | |
| Data Rate | 2390 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 2μs-10s(Step:0.01μs) | |
| Digital Gain | 0.001-8.000x | |
| Lens Interface | C Mount | |
| Data Interface | CoaXPress12 | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12-24V(±10%) 1.0A | |
| Power Consumption | 7.9W | |
| Dimensions | 50.0mm(W) x 50.0mm(H) x 56.6mm(D)(Without adapter) | |
| Operating Temperature | 0-55℃ | |
| Storage Temperature | -20-75℃ | |
