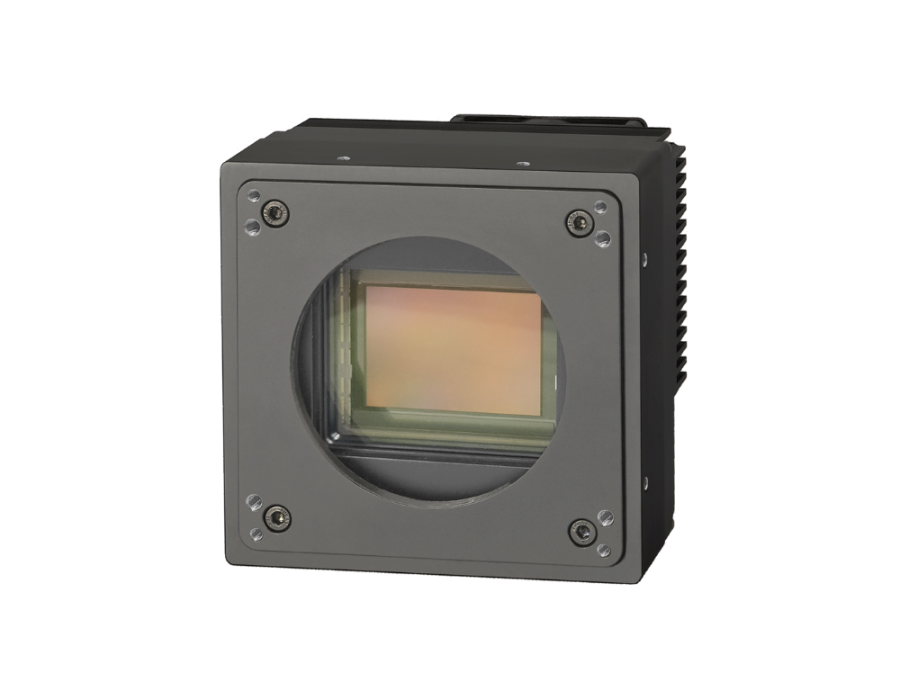

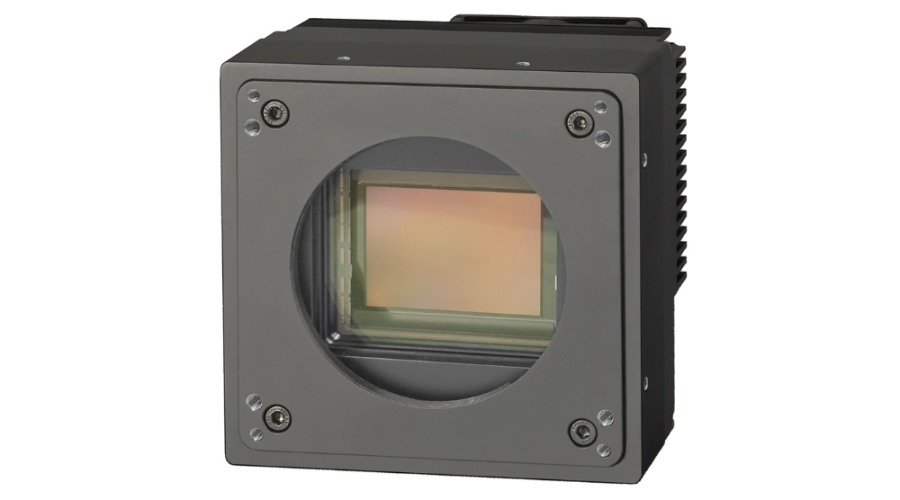

TTS127MSCXP10-22M
Highlight Features
- Global Shutter CMOS
- 13440 * 9536 pixels, 3.45μm * 3.45μm
- Frame rate up to 22.14fps
- 8/10/12 bit output
| Model | TTS127MSCXP10-22M | TTS127MSCXP10-22C |
|---|---|---|
| Sensor | IMX661 | |
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 56.85 mm | |
| Resolution | 13440 * 9536 | |
| Pixel Size | 3.45μm * 3.45μm | |
| Max Frame Rate | Binning1x1: 22.14fps@8/10bit, 18.98fps@12bit | Binning2x2/4x4: 42.43fps@8/10bit, 38.28fps@12bit |
| Bit Depth | 8/10/12 bit | |
| Dynamic Range | ≥71 dB | |
| Data Rate | 3547MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 443us~50s (Step: 8.91us@8/10bit, 10.43us@12bit) | |
| Analog Gain | 0-36 | |
| Digital Gain | 0.004~7.996 | |
| Lens Interface | M72 * 0.75 | |
| Data Interface | CoaXPress10 | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12V±10% 5A | |
| Power Consumption | TEC off: 23.1W | TEC on: 47.9W |
| Cooling Mode | Electronic refrigeration(12℃ below environment temperature)/ Fan refrigeration | |
| Dimensions | 111.0mm(W) x 111.0mm(H) x 91.6mm(D) | |
| Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-75℃ | |
