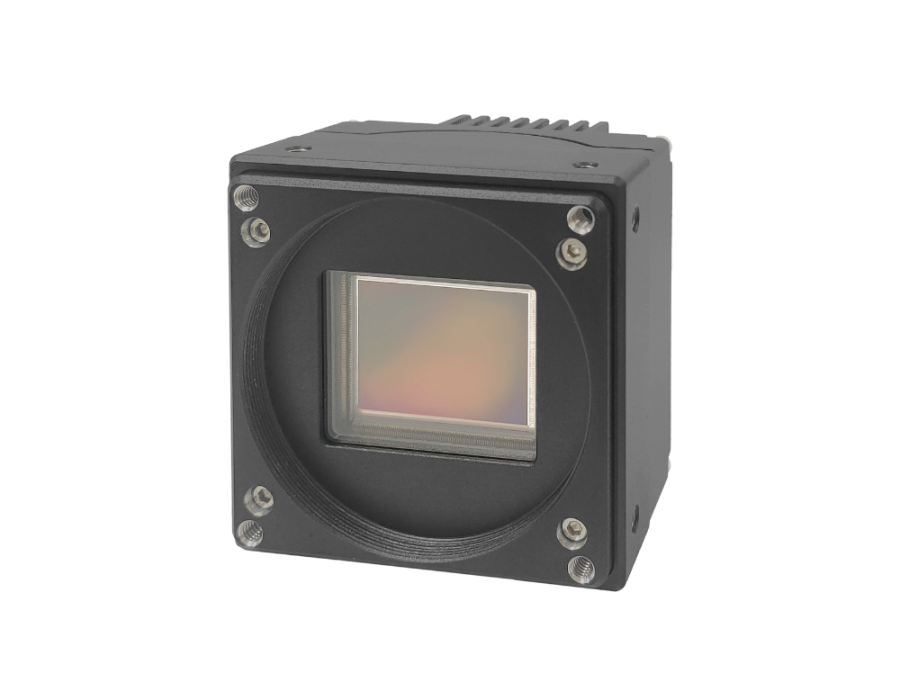

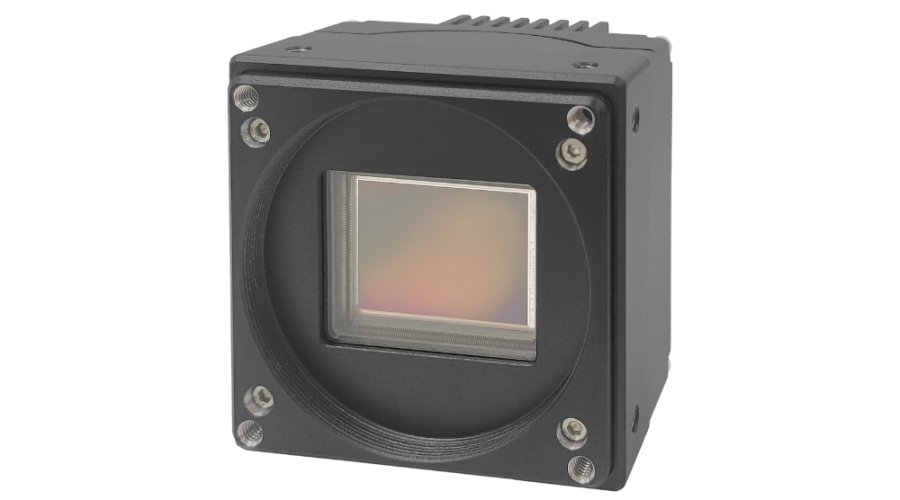

TTS151M2CL-5C
Highlight Features
- Rolling Shutter CMOS
- 14192 * 10640 pixels, 3.76μm * 3.76μm
- Frame rate up to 5.28fps
- 8/10/12/16bit
| Model | TTS151M2CL-5M | TTS151M2CL-5C |
|---|---|---|
| Sensor Type | Rolling Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 66.69 mm | |
| Resolution | 14192 * 10640 | |
| Pixel Size | 3.76μm * 3.76μm | |
| Max Frame Rate | 5.28 fps | |
| Bit Depth | 8/10/12/16bit | |
| Dynamic Range | ≥78 dB | |
| Data Rate | 797 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | Camera Link CC / External IO | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 88us~30s (Step: 35us@10Tap, 44us@8Tap, 88us@4Tap) | |
| Analog Gain | 0-96 | |
| Digital Gain | 0.01-8.00x | |
| Lens Interface | M72 * 0.75 | |
| Data Interface | Camera Link | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12V±10% 5A | |
| Power Consumption | 50.0 W | |
| Cooling Mode | Electronic refrigeration(20℃ below environment temperature)/ Fan refrigeration | |
| Dimensions | 111mm x 111mm x 105mm | |
| Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-75℃ | |
