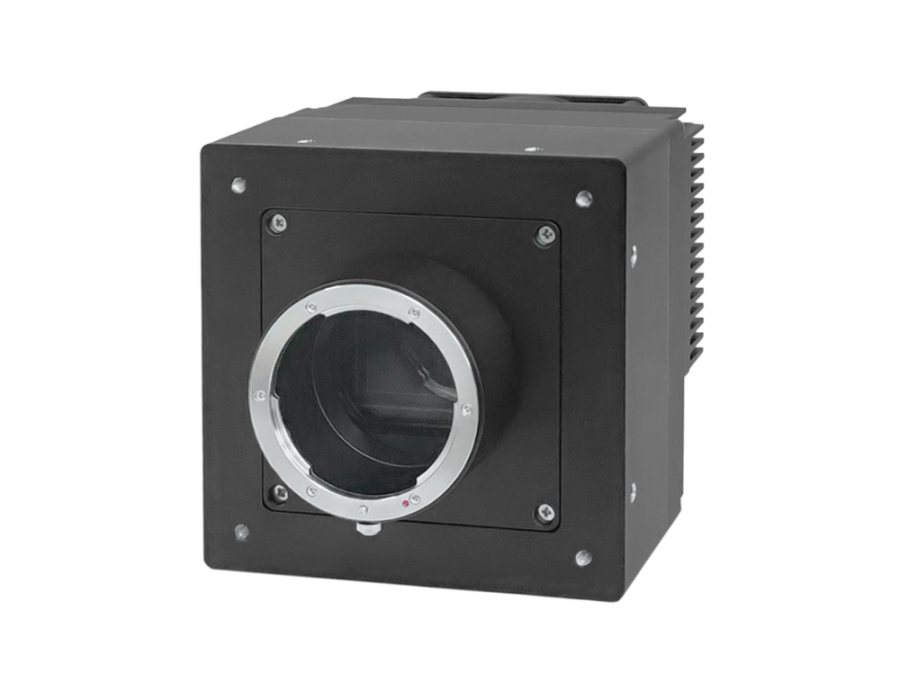

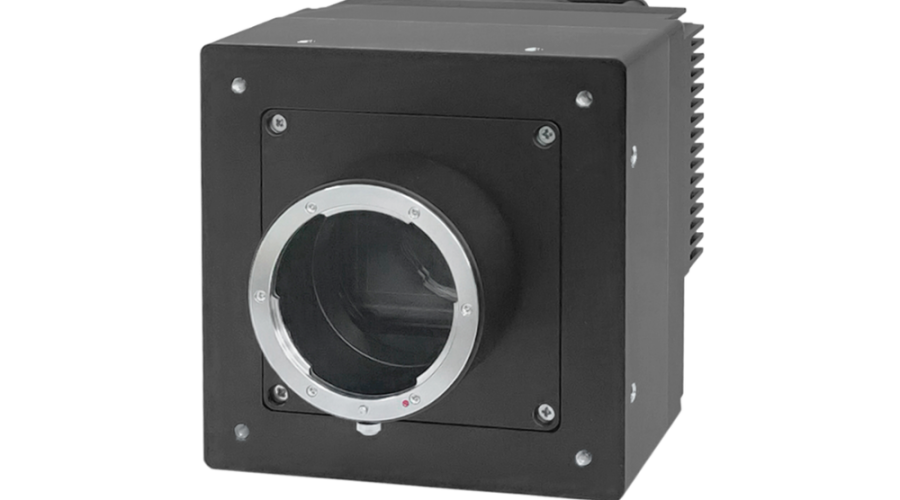

TTS61M2CL-13M
Highlight Features
- Rolling Shutter CMOS
- 9568 * 6380 pixels, 3.76μm * 3.76μm
- Frame rate up to 13.06fps
- 8/10/12 bit output
| Model | TTS61M2CL-13M | TTS61M2CL-13C |
|---|---|---|
| Sensor | IMX455 | |
| Sensor Type | Rolling Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 43.24 mm | |
| Resolution | 9568 * 6380 | |
| Pixel Size | 3.76μm * 3.76μm | |
| Max Frame Rate | 13.06 fps | |
| Bit Depth | 8/10/12 bit | |
| Dynamic Range | ≥75.8 dB | |
| Data Rate | 830 MB/s | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | Camera Link CC / External IO | |
| Exposure Control | Program / Pulse Width | |
| Exposure Time | 120μs-60s(Step:4tap/60μs;8tap/30μs;10tap/23.75μs) | |
| Analog Gain | 0-96 | |
| Digital Gain | 0.01-8.00x | |
| Lens Interface | F Mount | |
| Data Interface | Camera Link | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC12V±10% 5A | |
| Power Consumption | 50.0 W | |
| Cooling Mode | Electronic refrigeration(20℃ below environment temperature)/ Fan refrigeration | |
| Dimensions | 111.0mm(W) x 111.0mm(H) x 103.0mm(D)(Without ferrule) | |
| Operating Temperature | 0-50℃ | |
| Storage Temperature | -20-75℃ | |
