V2-BL-GM9K12X4

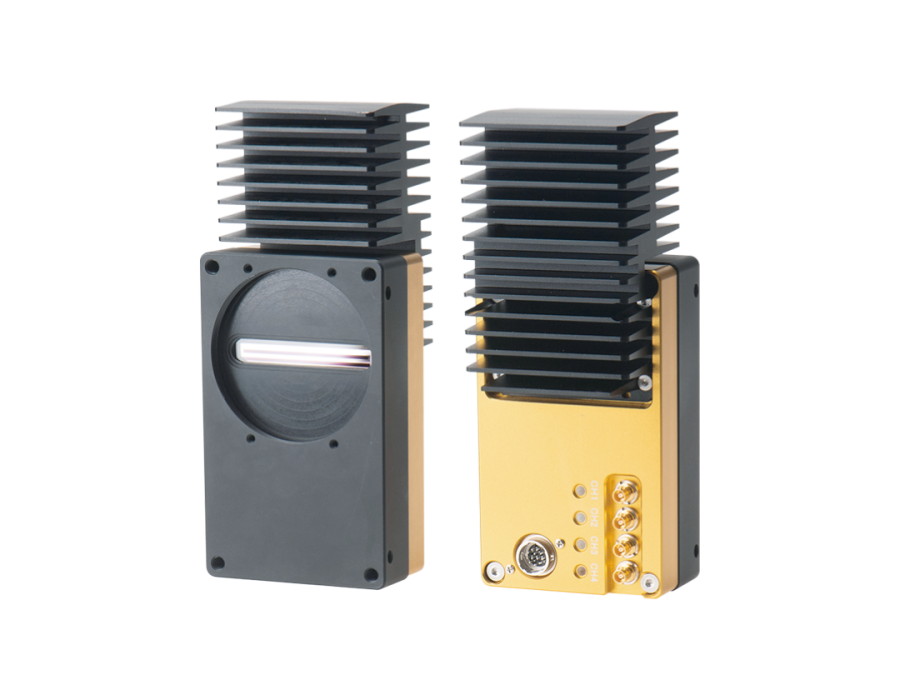

High-speed, high-sensitivity monochrome TDI line scan camera
Main > Product > Line Scan Cameras > BOPIXEL Line Scan Camera > BOPIXEL TDI Series > V2-BL-GM9K12X4
V2-BL-GM9K12X4
The Highlight Features
- High-speed, high-sensitivity monochrome TDI line scan camera
- Effective resolution: 9072
- Integrated dual bands: 256 levels and 32 levels respectively
- Maximum frame rate: 529kHz
- Lens mount: M58 / F / M72
- Interface: CoaXPress1.1, CXP-12×4
| Model Name | V2-BL-GM9K12X4 |
|---|---|
| Resolution | 9K |
| Sensor | GLT5009BSI |
| Spectrum | Mono |
| Frame Rate | 529kHz |
| Number Of Pixels HxV | 9072×288(256+32) |
| Pixel Size (um) | 5.0×5.0 |
| Lens Mount | M58/F/M72 |
| Connection | CXP-12/-10/-6/-3, MicroBNC connector × 4 |
