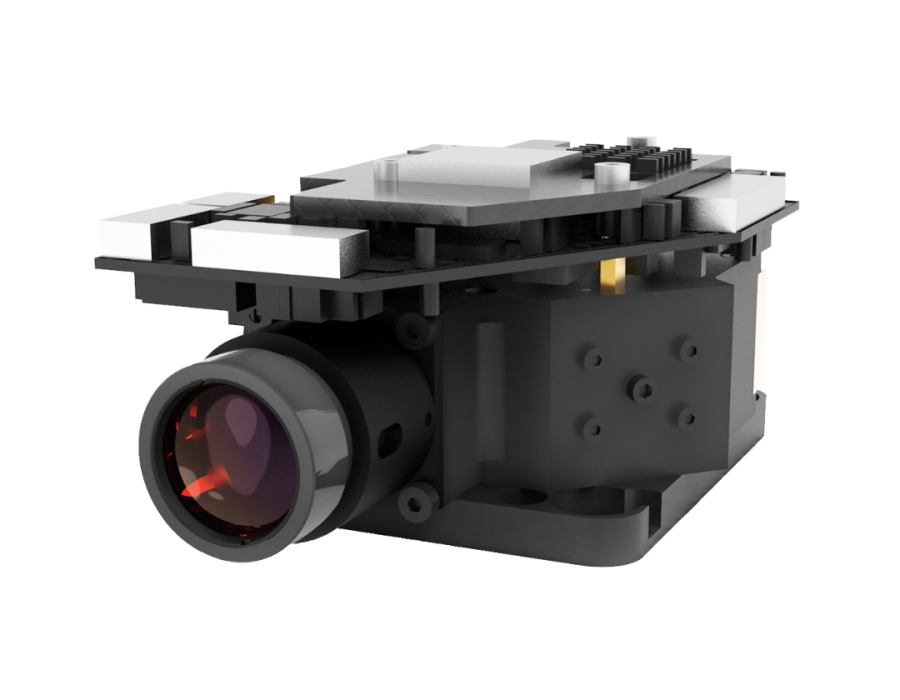

V2-OPR305100
High precision programmable structured light system
Main > Product > DLP Projector > BOPIXEL OPR305 Series > V2-OPR305100
V2-OPR305100
The Highlight Features
- DLP3010LC, 0.3 720p DMD
- Resolution is 1280×720
- High-precision small field of view projection, front projection/sham mode applicable to a wide range of scenes
- High-speed graphics rates up to 2487Hz (1-bit) and 272Hz (8-bit)
- High contrast ratio 1000:1, low distortion <0.05%, high uniformity >94%
- 459nm blue LED design
- Excellent temperature control system design
- The world’s smallest size DLP industrial projector
| Model Name | V2-OPR305100 |
|---|---|
| Working Distance（mm）MIN | 90 |
| Working Distance（mm）TYP | 100 |
| Working Distance（mm）MAX | 115 |
| Projection frame (mm) | 24.3×13.7 |
| Depth of field (mm) | ±4 |
| Throw Ratio | 4.12 |
| Accuracy（μm） | 19 |
| Mode | Front cast |
| Dimensions（mm） | 92×67×41 |
| Distortion | <0.05% |
| Light Source | Blu ray |
