V2F1000
High-performance Chromatic Confocal Controller with the highest measuring speed
Main > Product > Chromatic Confocal Sensor > V2F1000

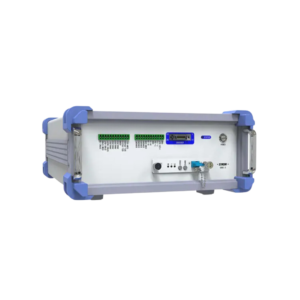

V2F1000
V2F1000 The controller enjoys an excellent signal-to-noise ratio and is suitable for high-dynamic detection. Excellent surface light compensation technology can adjust exposure time quickly to adapt to the fast-changing material’s surface reflectivity and ensure high-precision measurement.
| Model Name | V2F1000 |
|---|---|
| Communication interface | USB3.0/RS-232/485/422/ANALOG/IO |
| Current and voltage | 100V~240V AC 50/60Hz；0.1A |
| Type of light source | White LED |
| Number of measurement channels | 1 |
| Sampling rate | 72kHz |
| Power | Typical value 30W |
| Operating temperature | -20 ~ +60°C |
| Weight | 7500g |

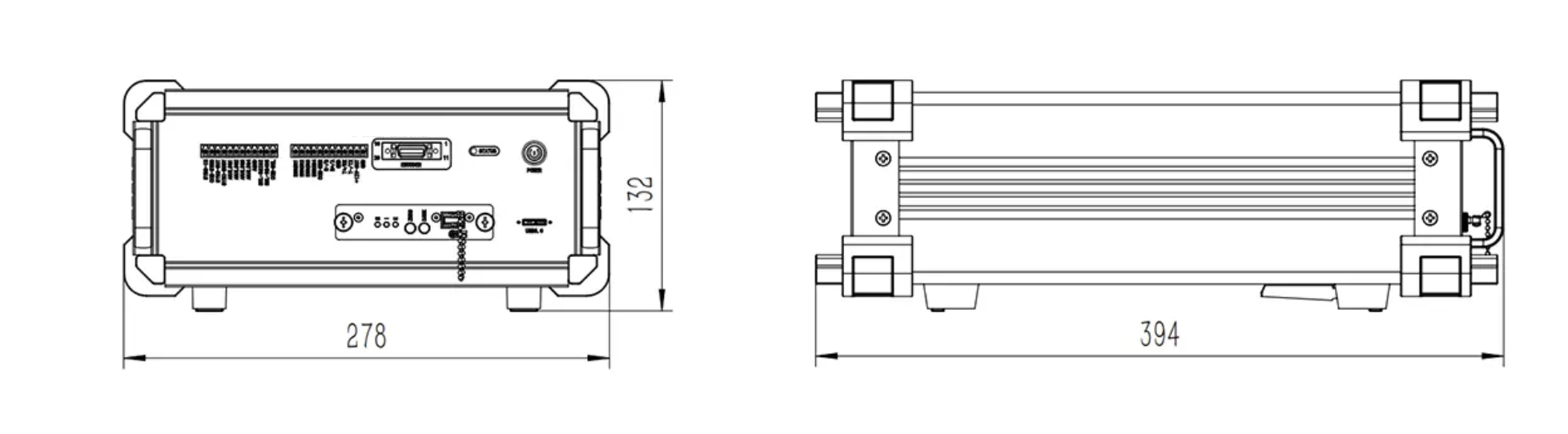

| Size | 394*278*132mm |
