V2U3-PCIE1XG211
2-port USB 3.0 to PCI Express x1 Gen2 Host Card
Main > Product > Frame Grabbers & Interface Cards > USB3 Frame Grabber > PCIe x1 > V2U3-PCIE1XG211

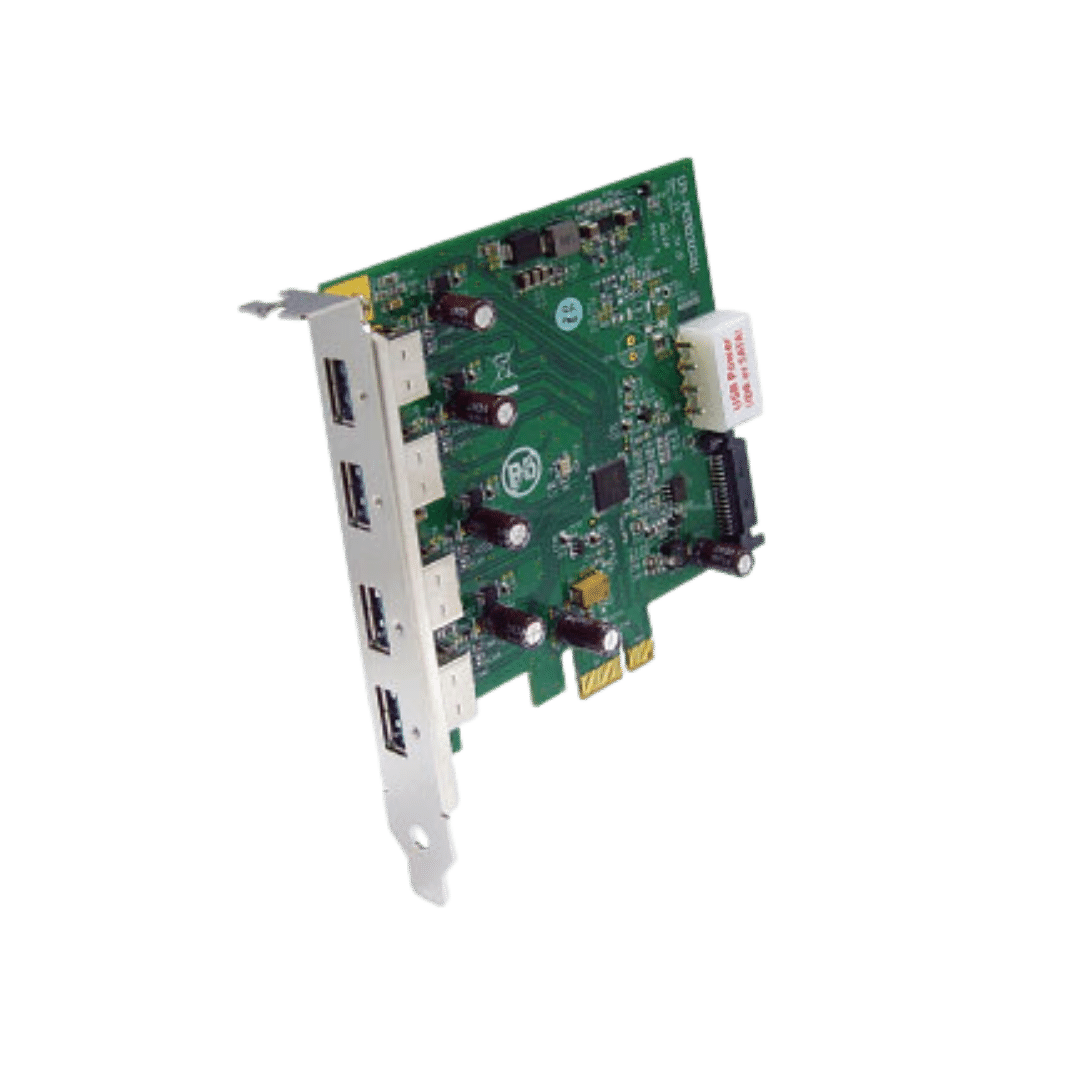

V2U3-PCIE1XG211
The V2U3-PCIE1XG211 is USB 3.0 to PCI Express x1 Gen 2 host card. It fully integrates an Extensible host Controller Interface (xHCI) engine, a 4-port 5Gbps USB 3.0 transceiver, a PCI Express endpoint controller and a 5Gbps PCI Express transceiver. V2U3-PCIE1XG211 implements the Universal Serial Bus 3.0 Specification Revision 1.0 and the Extensible Host Controller Interface (xHCI) Specification Revision 1.0, and complies with the PCI Express Rev 2.1 Specification at 5Gbps data rate, and the PCI Local Bus Specification Revision 2.2. V2U3-PCIE1XG211 is backward compatible for operation with USB 2.0 and USB 1.1 devices.
The V2U3-PCIE1XG211 features GoXtream™ xHCI Accelerator Engine, which maps the xHCI standard directly into a set of parallel functional units, providing acceleration of all xHCI operations while maintaining compatibility with existing software driver models.
V2U3-PCIE1XG211 supports the following Battery Charging Protocols.
- Supports USB Battery Charging Specification Revision 1.2 for Charging Downstream Ports (CDP).
- Supports USB Battery Charging via Chinese Telecom Standard YD/T 1591-2009.
- Supports Apple™ Charge
The Highlight Features
- Host Bus: PCIe x1 Gen 2 (5 Gb/s)
- Compliant with PCI Express Base Specification Revision 2.1
- 4-port USB 3.0 Host Controller (Fresco FL1100, USB IF TID 380000026)
- Compliant with Universal Serial Bus 3.0 specification Revision 1.0
- Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
- Supports UASP (USB Attached SCSI Protocol)
- USB 3.0 Cable Ports (A-type Receptacle, USB IF TID 360000003)
- Provides USB 3.0 cable port lock mechanism (IOI Standard: One Screwlock)
- Cable with One Screwlock Mechanism
- USB 3.0 Std- A Plug with one Jackscrew to Std-B Plug with Jackscrews Cable
- USB 3.0 Std-A Plug with one Jackscrew to Micro-B Plug with Jackscrews Cable
- GoXtream™ Architecture
- Switching fabric to sustain full bandwidth simultaneously for each USB3.0 port
- No firmware necessary
- WHQL certified driver support for Windows 8, Windows 7, Windows Vista and Windows XP
- Linux xHCI support under Linux kernel version 2.6.31 and after
| Model | V2U3-PCIE1XG211 |
|---|---|
| PCIe Host Bus | Single (x1) PCI Express Lane Supports PCI Express Specification Revision 2.1 at 5GT/s Supports PCI Bus Power Management Interface Specification revision 1.2 Support for Latency Tolerance Reporting (PCIe) |
| USB Features | Compliant with USB 3.0 Specification Revision 1.0 Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0 4 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps) Supports UASP (USB Attached SCSI Protocol) Supports xHCI debug capability Support for Ultra High-performance isochronous applications Support for Latency Tolerance Tolerance Messaging (USB) |
| Advanced Power Saving | Support all USB 3.0 Power States: U0, U1, U2 and U3 Support USB 2.0 Link Power management (LPM) USB-IF LPM PDK Standard PCIe Active State Power Management (ASPM) L0s and L1 |
| USB3 cable lock mechanism | Provides the threaded holes for the jack-screws of USB 3.0 A Plug w/Jackscrew lock Cable |
| USB Bus Power Input | V2U3-PCIE1XG211: Power Supply to the USB bus power may from the following source (A or B): A. From PCIe 12V (Step-Down) or 3.3Vaux (Step-Up) B. From Power Connector 5V only From Big IDE 4-pin DC Power Connector From SATA 15pin Power Connector U3-PCIE1XG211-13: Power Supply to the USB bus power may from the following source (A or B): A. From PCIe 12V (Step-Down) B. From Power Connector 5V only From Big IDE 4-pin DC Power Connector From SATA 15pin Power Connector |
| Battery Charging Protocols | Supports USB Battery Charging Specification Revision 1.2 for Charging Downstream Ports (CDP). Supports USB Battery Charging via Chinese Telecom Standard YD/T 1591-2009. Supports Apple™ Charge |
| Remote wake-up | V2U3-PCIE1XG211: Yes V2U3-PCIE1XG211-13: No |
- Computer with PCI Express slot (x1, x4, x8, x16)Note:
For the best performance (5.0 Gbps), U3-PCIE1XG211 should be installed in a PCIe Gen 2 compliant slot in the host computer. Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x8 or x16 slots.
A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput.
- If OS is Windows 8 or later , there are inbox driver for Fresco USB 3.0 Host Controller.
- Linux xHCI support under Linux kernel version 2.6.31 and after
- USB 3.0 Host Drivers
x86 (32-bit) and x64 (64-bit)- Windows XP
- Windows Vista
- Windows 7
- Windows 8 and 8.1
- 98mm(W) x 101mm[120mm](H)
- NW: 76.1g (Unit Package:147.6 g)
- CE Test: Pass
- UKCA Test: Pass
- FCC Test : Pass
- VCCI Test: Pass
- RCM Test: Pass
