V2U31X4-PCIE8XE102
Quad Channel 8-port Std-A USB 3.1 Gen 2 (10Gbps) to PCI Express x8 Gen 3 Host Card
Main > Product > Frame Grabbers & Interface Cards > USB3 Frame Grabber > PCIe x8 > V2U31X4-PCIE8XE102
V2U31X4-PCIE8XE102

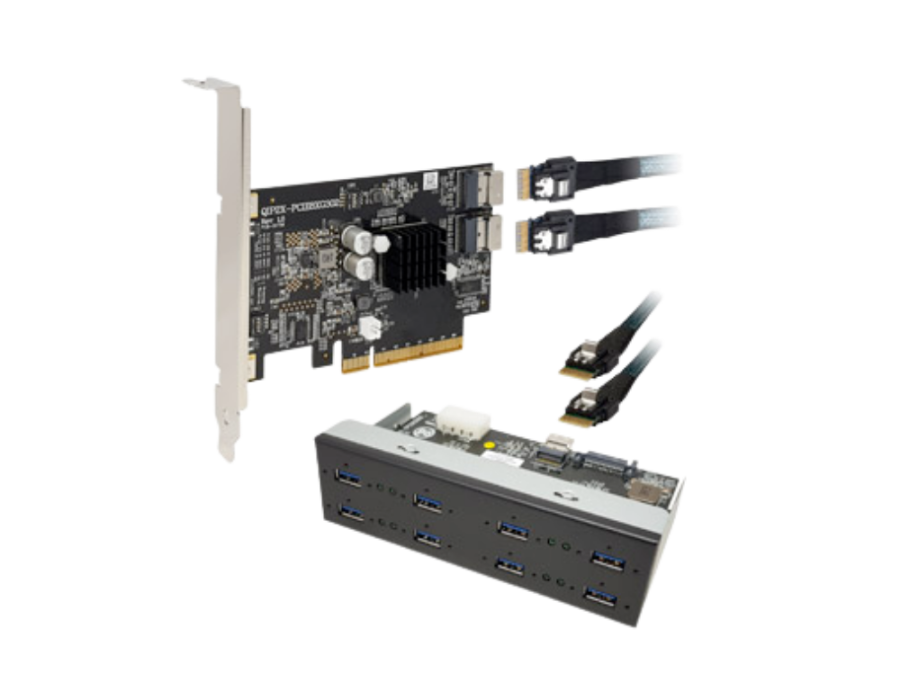

The V2U31X4-PCIE8XE102 is an Quad channel 8-port (2-port x4) USB 3.1 to PCI Express x8 Gen 3 Host Card.

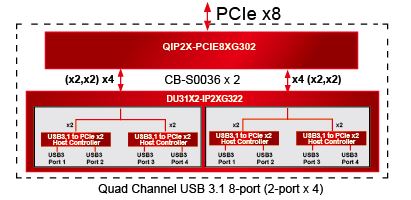

V2U31X4-PCIE8XE102 is integrated by the following three key parts (QIP2X-PCIE8XG302, DU31X2-IP2XG322, CB-S0036).
- QIP2X-PCIE8XG302
- Internal Dual PCIe x4 (two SFF-8654 Connectors) to PCIe x8 Gen 3 Switch Host Card
- DU31X2-IP2XG322
- Integrated four USB 3.1 Gen 2 (10Gbps) to PCIe x2 Gen 3 (8Gbps) Host Controllers (Asmedia ASM3142, USB IF TID 5080000010).
- Two CB-S0036
- SFF-8654 to SFF-8654 Cable,
Utilizing the standard PCI Express Switch, the 16-Lane/5-Port PCI Express Switch provides the most efficient fan-out solution for integrating Quad PCI Express to USB 3.1 Single Chip Host controllers into a small board design. Each USB 3.1 to PCI Express Single Chip Host controller takes advantages of 10 Gbps burst rate of 8-lane PCI Express bus in both directions and is fully compliant with PCI Express Base specification r3.0. This solution provides full PCI Express and USB 3.1 functionality and performance.
The Highlight Features
- Host Bus: PCIe x8 Gen 3 (8.0 GT/s)
- Compliant with PCI Express Base Specification Revision 3.0
- Four independent USB 3.1 Gen 2 (10Gbps) Host Controllers
- Compliant with Universal Serial Bus 3.1 specification Revision 1.0
- Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.1
- Eight USB 3.1 Cable Ports (A-type Receptacle)
- Provides USB 3.1 cable port lock mechanism
USB 3.1 Standard A-type lock mechanism - 5.25″ ODD Form Factor (DU31X2-IP2XG322)
| Model | V2U31X4-PCIE8XE102 |
|---|---|
| PCI Express | Two SFF-8654 4x 85ohm 38pin Connectors Each SFF-8654 Connector 4-lane PCI Express PCIe Gen 3 (8.0 GT/s) |
| USB Features | Up to USB 3.1 Gen 2 10Gbps Compliant with Universal Serial Bus 3.1 Specification Revision 1.0 Compliant with Universal Serial Bus Specification Revision 2.0 Compliant with USB Attached SCSI Protocol Revision 1.0 Support Multiple INs function Support USB 3.1 and USB 2.0 Link Power Management Support Control, Bulk, Stream, Interrupt, Isochronous transfer type Support independent port power control Support overcurrent detection Support Remote/Wakeup event Integrate Spread Spectrum Controller for USB3.1 interface Backward compatible with Legacy USB function and device Support the Debugport |
| Number of Ports | Eight USB 3.1 (Standard A-type Receptacle) cable ports |
| USB3 cable lock mechanism | Provides the threaded holes for the jack-screws of USB 3.1 A Plug w/Jackscrew lock Cable |
| USB Bus Power Input | DC 12V (Step-Down) from either Big IDE 4-pin DC Power Connector or/and SATA 15pin Power Connector |
Inbox driver for Windows 8 later, Linux (kernel 3.x.x later)
- CE Test: Pass
- UKCA Test: Pass
- FCC Test : Pass
- VCCI Test: Pass
- RCM Test: Pass
- QIP2X-PCIE8XG302
- 64mm(H) x 110mm(L)
- NW: 58.8g
- DU31X2-IP2XG322
- 5.25″ ODD Form Factor
- 146.6(W) x 42(H) x 71 (D) mm
- NW: 307.4g
