CIS VCC-2CXP2M
High speed frame rate and high resolution camera
Main > Product > Area Scan camera > CoaXpress Cameras > VCC-2CXP2M

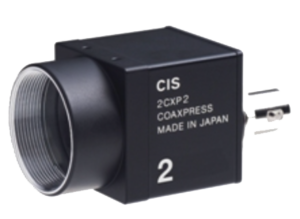

CIS VCC-2CXP2M
This product comes in high speed frame rate, high resolution and global shutter operation. VCC-2CXP2M product comes with only monochrome.
Support with
- Compact housing; 29mm cubic in size
- Global shutter type CMOS sensor (Monochrome)
- CoaXPress Ver. 1.0
- CXP-1 / CXP-2 / CXP-3
- Maximum cable length Approx. 100m (CXP-1 lane), Approx. 40m (CXP-3 lane)
- Partial scan function(ROI)
- Sub-sampling
- Exposure time, Gain setting
- External trigger operation(Fixed trigger shutter mode/Pulse width trigger shutter mode)
- Maximum cable length approx. 100m (CXP-1 lane), approx. 40m (CXP-3 lane)
- GenICam compliance
| Model | VCC-2CXP2M |
|---|---|
| Color/Mono | Mono |
| Resolution | 2M (1984×1264) |
| fps@Max. Resolution | 41.7(CXP1 ),84.5(CXP2),84.5(CXP3) |
| Output Format | MONO8/10 |
| Sensor Model Name | Python2000 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 |
| Effective Pixels | 1984 × 1264 |
| Pixel Size (μm) | 4.8×4.8 |
| Pixel Clock (MHz) | 72M |
| Power Requirement | PoCXP |
| Shutter Variable Range | 110 – 27,256μs |
| Interface | CXP-1/2/3 |
| Lens Mount | C Mount |
| Weight (g) | 50 |
| Dimensions (W) x (H) x (D)mm | 29×29×29 |
