JAI WA-1000D-CL
Dual SWIR Line Scan Camera
Main > Product > SWIR Cameras > SWIR Line Scan Cameras > Wave Series Camera >WA-1000D-CL

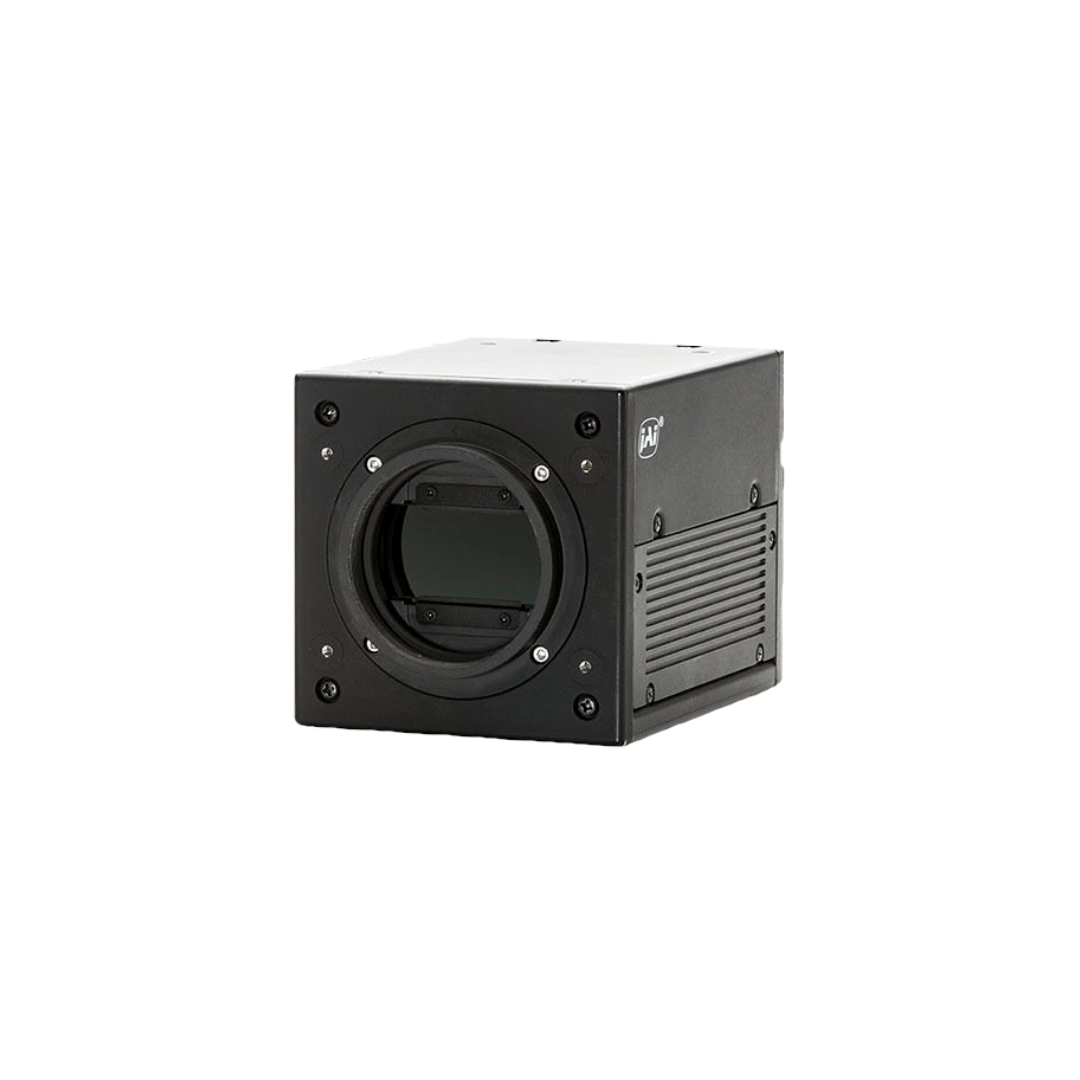

JAI WA-1000D-CL
JAI SWIR camera technology can enhance current machine vision systems with imaging beyond what is possible when imaging the visible and/or the near infrared light spectrum. The Wave camera can provide lots of extra “hidden” vision data.
With two separate imaging channels, Wave Series cameras leverage subtle differences in absorptive and reflective properties at specific wavelengths to sort or analyze substances in ways that aren’t possible using a single spectral band.
With a single optical path feeding two prism-mounted imagers, Wave Series cameras have no moving parts to wear out like filter wheel cameras, and can precisely align the dual spectral images even when objects are moving at high speeds.
| Model | WA-1000D-CL |
|---|---|
| Type | Line Scan |
| Color / Mono | Multispectral |
| Light Spectrum | SWIR |
| Resolution WxH | 1024 x 1 px |
| Cell Size WxH | 25.0 x 25.0 µm |
| Frame rate / Line rate | 39 kHz |
| Pixel clock | 6.67 MHz |
| Line rate (max) | 39kHz (39,230 line/sec) |
| Sensor sensitivity | 280nV/e- (conversion gain) |
| Sensor width | 25.6 mm |
| Synchronization | Internal X-tal or external trigger |
| S/N ratio | >50 dB on green with gain = 0 dB |
| Digital video output | Dual Base Configuration: 2x8-bit, 2x10-bit, 2x12-bit 2-Tap Medium Configuration: 2x8-bit, 2x10-bit,2x12-bit |
| Input signal | Trigger (Camera Link, TTL/75 Ω) |
| Output signal | Camera Link: LVAL - DVAL - EEN Hirose 12-pin: XEEN |
| Gain | Master mode: 1ch: 0dB to +11dB 2ch: -3dB to +3dB Individual mode: 1ch/2ch: 0dB to +11dB |
| Correction | Pixel gain correction, Flat shading correction, LUT/Gamma correction |
| Trigger modes | Pulse width control, No-Shutter, Shutter select |
| Programmable exposure | 20.38 μs to 1.995ms in 149.9ns increments |
| Pulse width control | 20.38μs to 1 s (Camera Link) 50μs to 1 s (12-Pin connector) |
| Lens mount | M52 Mount |
| Operating temperature | -5 to +45 |
| Operating humidity | +20 to +80% non-condensing |
| Vibration | 3G (20Hz to 200Hz, XYZ direction) |
| Shock | 50G |
| Regulations | CE (EN61000-6-2, EN61000-6-3), RoHS/WEEE, IEC/EN61000-4-3 FCC Part15 Class B IEC61000-4-2 Level 4 (contact discharge = 8 kV, air discharge = 15 kV) |
| Power | DC+12V to 24V ± 10% 820 mA ±10% +12V |
| Dimensions (H x W x D) | 90 mm x 90 mm x 117 mm (without connector and lens mount protrusion) |
| Weight | 910 g |
