Zivid 2+ MR60

The Zivid 2+ product is a structured-light 3D camera meticulously designed for the most demanding machine vision applications. Crafted specifically for industrial environments, the Zivid 2+ camera deliver state-of-the-art performance with unwavering reliability.

The Highlight Features

Technical Specification

Model Name	Zivid 2+ MR60
3D technology	Structured light
Imaging	2448 x 2048 (5.0 MP) Native 3D Color
Point cloud output	3D (XYZ) + Color (RGB) + SNR
Exposure Time	1.677ms
Aperture	f/2.1 to f/32
Gain	1x to 16x
Projector Brightness	0.25 - 2.5x (3D capture mode) 0.0x - 2.5x (2D capture mode) 1x = 360 lumens 2.5x = 900 lumens
Calibration	Factory Calibrated
Safety and EMC	CE, CB, EN62368, FCC CLASS B, KC
Typical Capture Time	100ms - 1s
Focus Distand(mm)	600
Optimal Working Distance(mm)	350 - 900
Recommended Working Distance (mm)	300 - 1100
Field of View (mm)	570 x 460 at 600
Spatial Resolution (mm)	0.24 at 600 4.07 x 10-5 per distance (z) in mm

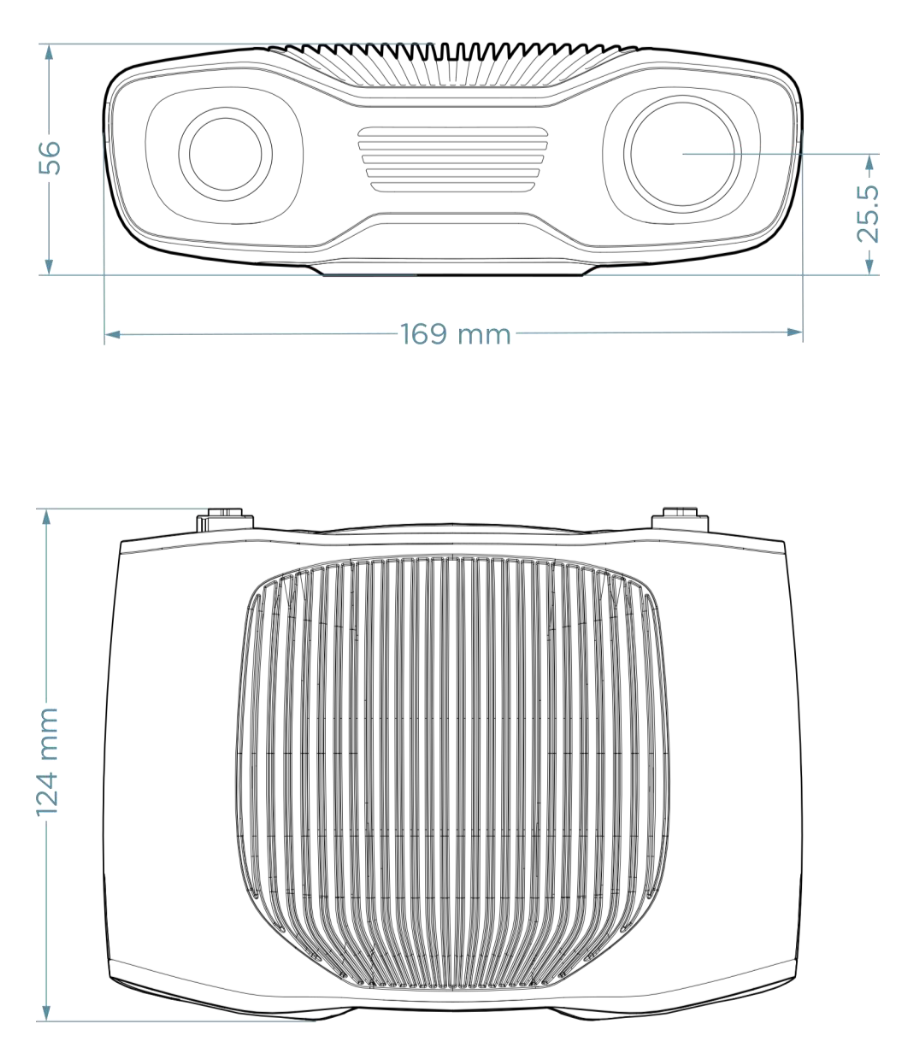

Size (mm)	169 x 124 x 56
Weight (g)	1000
Environmental	IP65, 5g Sinusoidal, 15g shock
Operating Temperature	0°C - 40°C
Storage Temperature	-20°C - 60°C
Power Connection	M12-5
Power Adapter	24C - 5A, DC EU, US and UK power plug options.
