3DPIXA compact 15µm f/11

Precision in high-resolution 3D and color

Main  >  Product  >  3D Cameras  >  Chromasens 3DPIXA Page  > 3DPIXA compact 15µm f/11

3DPIXA compact 15µm f/11

The 3DPIXA is ideally for fast and precise 3D measurements. With its unique combination of line scan camera technology and fast 3D stereo calculation on graphics cards, the 3DPIXA compact 15µm f/11 simultaneously delivers 3D data and color images. All types of illumination can be used for image capturing with 3DPIXA.



CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size10 μm x 10 μm
InterfacesCamera Link Base/Medium
External I/O
Serial (RS-232)
Power supply (Hirose)
Power supply24 V DC +/- 10% 16 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS
Optical resolution (µm/pixel)15
Field of view (mm)40
Number of pixel2666
Height resolution (µm)*4
Height range (mm)**3.5
Free working distance (mm)99.6
Maximum speed (mm/s)310
Line frequency (kHz)21.2

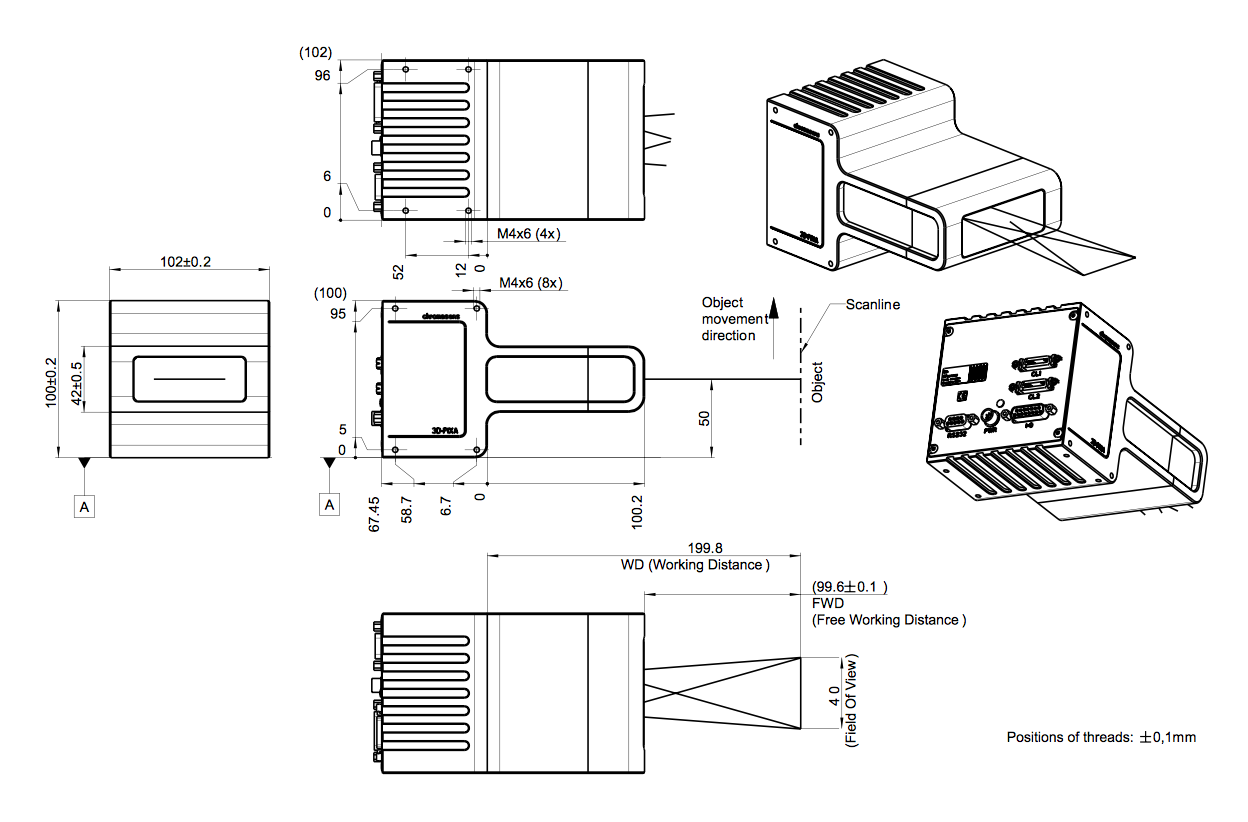

Dimensions LxWxH (mm)167.65 x 102 x 100
