3DPIXA compact 30µm f/11

Precision in high-resolution 3D and color

Main  >  Product  >  3D Cameras  >  Chromasens 3DPIXA Page  > 3DPIXA compact 30µm f/11

3DPIXA compact 30µm f/11

The 3DPIXA compact 30µm f/11 is ideally for fast and precise 3D measurements. The combination of line scan camera technology and fast 3D stereo calculation on graphics cards enables the 3DPIXA to simultaneously deliver 3D data and color images. All types of illumination can be used for image capturing with 3DPIXA.



CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size5.6 μm x 5.6 μm
InterfacesCamera Link Base/Medium
Serial (RS-232)
External I/O
Power supply (Hirose)
Power supply24 V DC +/- 10% 16 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS



Optical resolution (µm/pixel)30
Field of view (mm)105
Number of pixel3500
Height resolution (µm)*10
Height range (mm)**11.2
Free working distance (mm)173.6
Maximum speed (mm/s)630
Line frequency (kHz)21.2

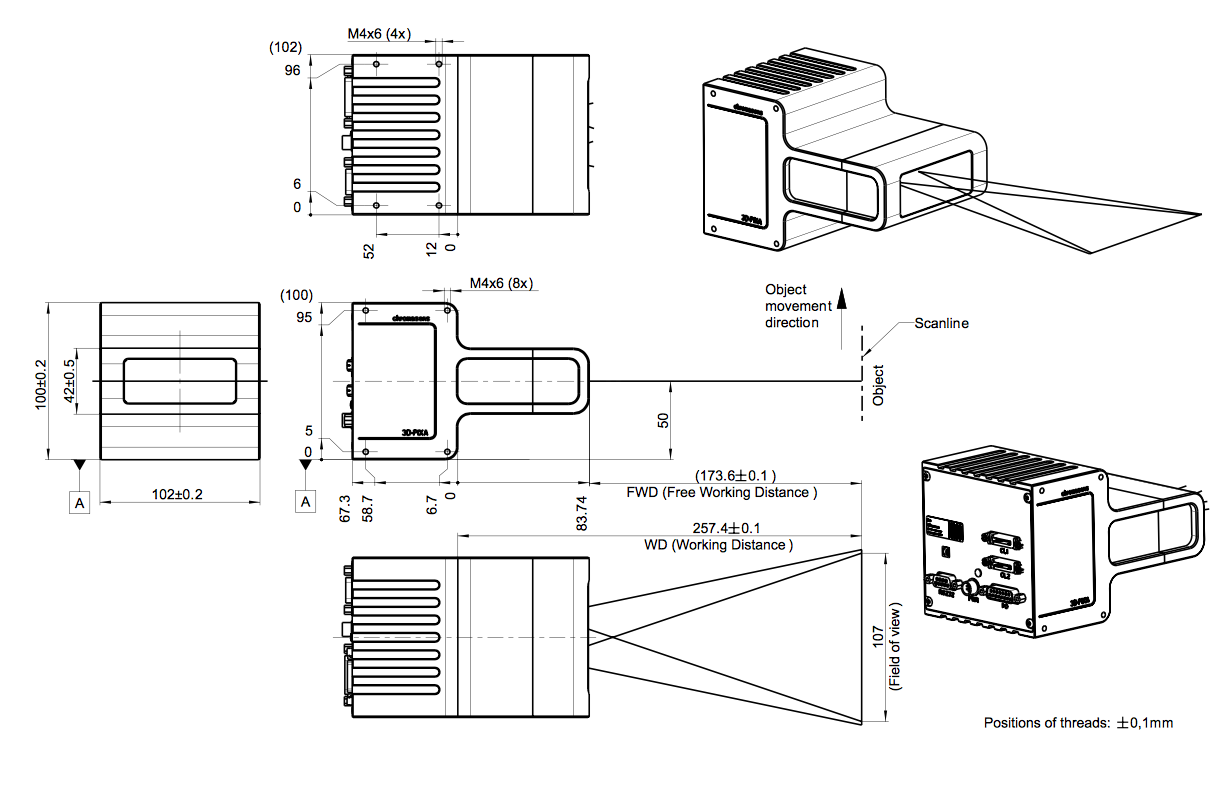

Dimensions LxWxH (mm)151.04 x 102 x 100
