3DPIXA pro dual 30µm

The combination of line scan camera technology with fast 3D stereo computation on graphics cards.

Main  >  Product  >  3D Cameras  >  Chromasens 3DPIXA Page  > 3DPIXA pro dual 30µm

3DPIXA pro dual 30µm

The Chromasens 3DPIXA pro dual 30µm combines modern line scan camera technology with fast 3D stereo computation on graphics cards. The stereo line scan camera delivers 3D data and colour images simultaneously. This technology allows the use of lighting that is optimized for the application.



CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size10 μm x 10 μm
InterfacesCamera Link Base/Medium
External I/O
Serial (RS-232)
Power supply (Hirose)
Power supply24 V DC +/- 10% 38 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS



Optical resolution (µm/pixel)30
Field of view (mm)210
Number of pixel7000
Height resolution (µm)*5
Height range (mm)**11.2
Free working distance (mm)383.3
Maximum speed (mm/s)891
Line frequency (kHz)29,7

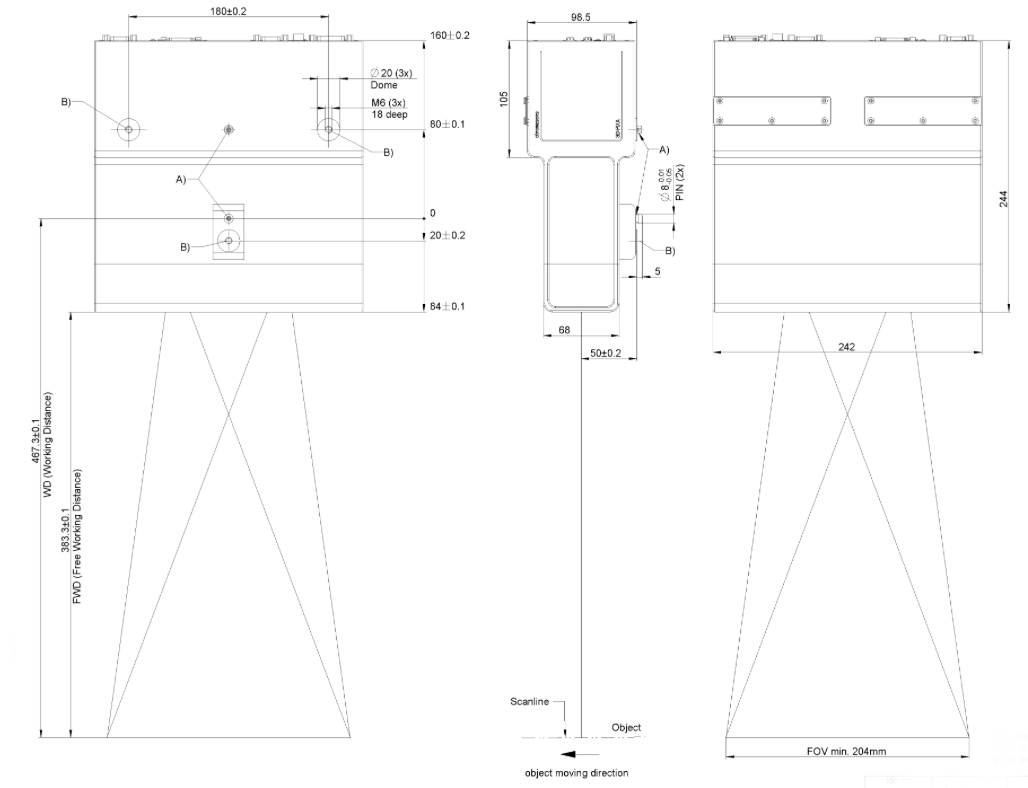

Dimensions LxWxH (mm)244 x 99 x 242
