3DPIXA wave compact 8µm
The 3DPIXA is ideally suited for fast and precise 3D measurements. With its unique combination of line scan camera technology and fast 3D stereo calculation on graphics cards, the 3DPIXA simultaneously delivers 3D data and color images. In principle, all types of illumination can be used for image capturing with 3DPIXA.
| Model Name | 3DPIXA wave compact 8µm |
|---|---|
| Camera | Stereo camera with lenses (factory calibrated) |
| Sensor | Tri-linear CCD line-sensor (RGB) |
| Active pixel size | 5.6 μm x 5.6 μm |
| Interfaces | Camera Link Base/Medium/Full, External I/O, Serial (RS-232), Power supply (Hirose) |
| Power supply | 24 V DC +/- 10% 40 W |
| Trigger mode | Free run / external trigger |
| Operating temperature | 0°C to 60°C, 32°F to 140°F (housing temperature) |
| Additional accessories | Chromasens Corona II illumination |
| Certifications | CE, RoHS |
| Optical resolution (µm/pixel) | 8 |
| Field of view (mm) | 36 |
| Number of pixel | 4500 |
| Height resolution (µm)* | 2.25 |
| Height range (mm)** | 1.32 |
| Free working distance (mm) | 155 |
| Maximum speed (mm/s) | 147 |
| Line frequency (kHz) | 18.4 |

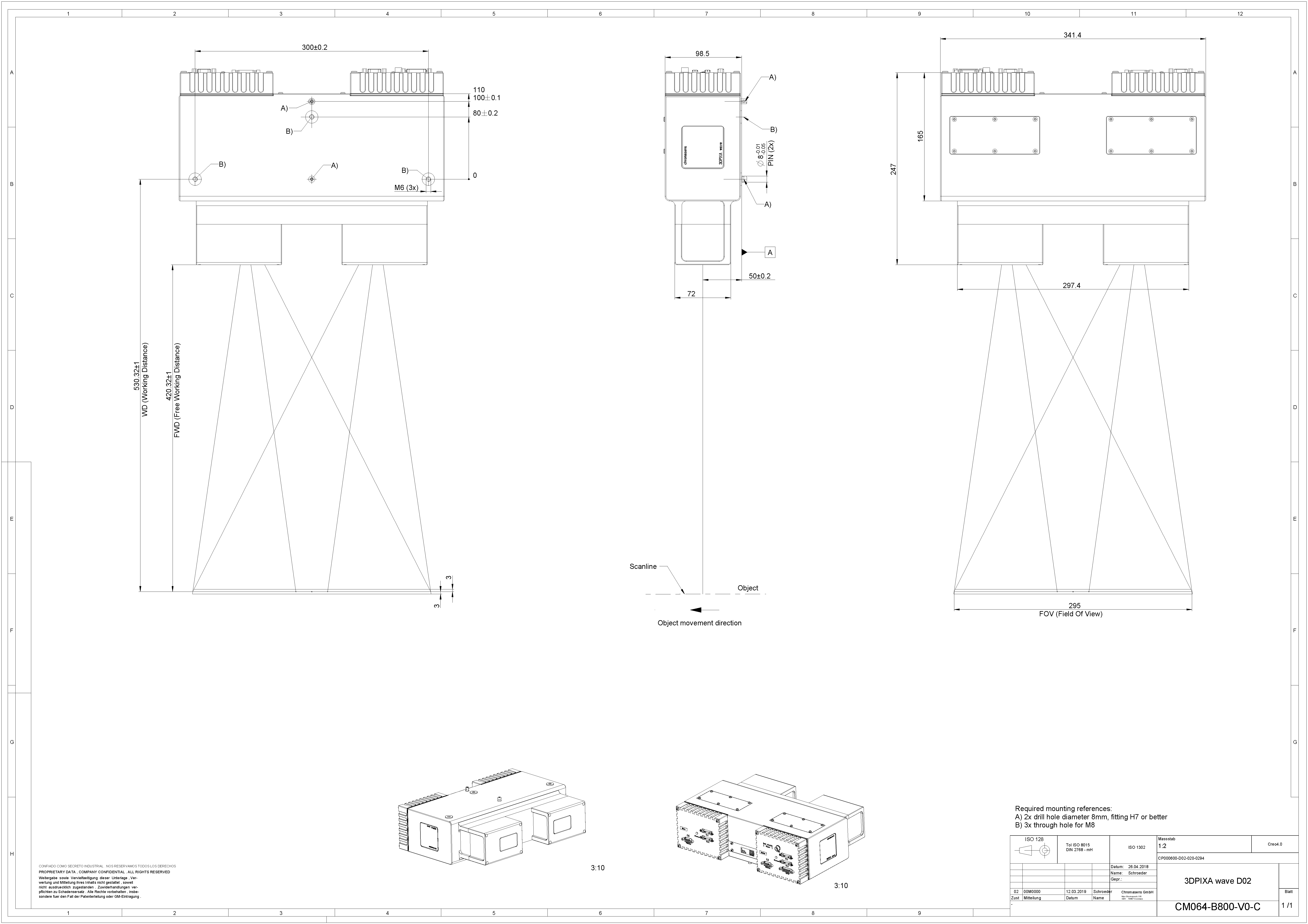

| Dimensions LxWxH (mm) | 228x100x114 |
