3DPIXA wave dual 30µm

The combination of line scan camera technology with fast 3D stereo computation on graphics cards.

Main  >  Product  >  3D Cameras  >  Chromasens 3DPIXA Page  > 3DPIXA wave dual 30µm

3DPIXA wave dual 30µm

Chromasens 3DPIXA wave dual 30µm combines line scan camera technology with fast 3D stereo computation on graphics cards. The stereo camera delivers 3D data and colour images simultaneously.





CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size5.6 μm x 5.6 μm
InterfacesCamera Link Base/Medium
External I/O
Serial (RS-232)
Power supply (Hirose)
Power supply24 V DC +/- 10% 40 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS



Optical resolution (µm/pixel)30
Field of view (mm)450
Number of pixel15,000
Height resolution (µm)*5.87
Height range (mm)**12,9
Free working distance (mm)612.4
Maximum speed (mm/s)552
Line frequency (kHz)18.4

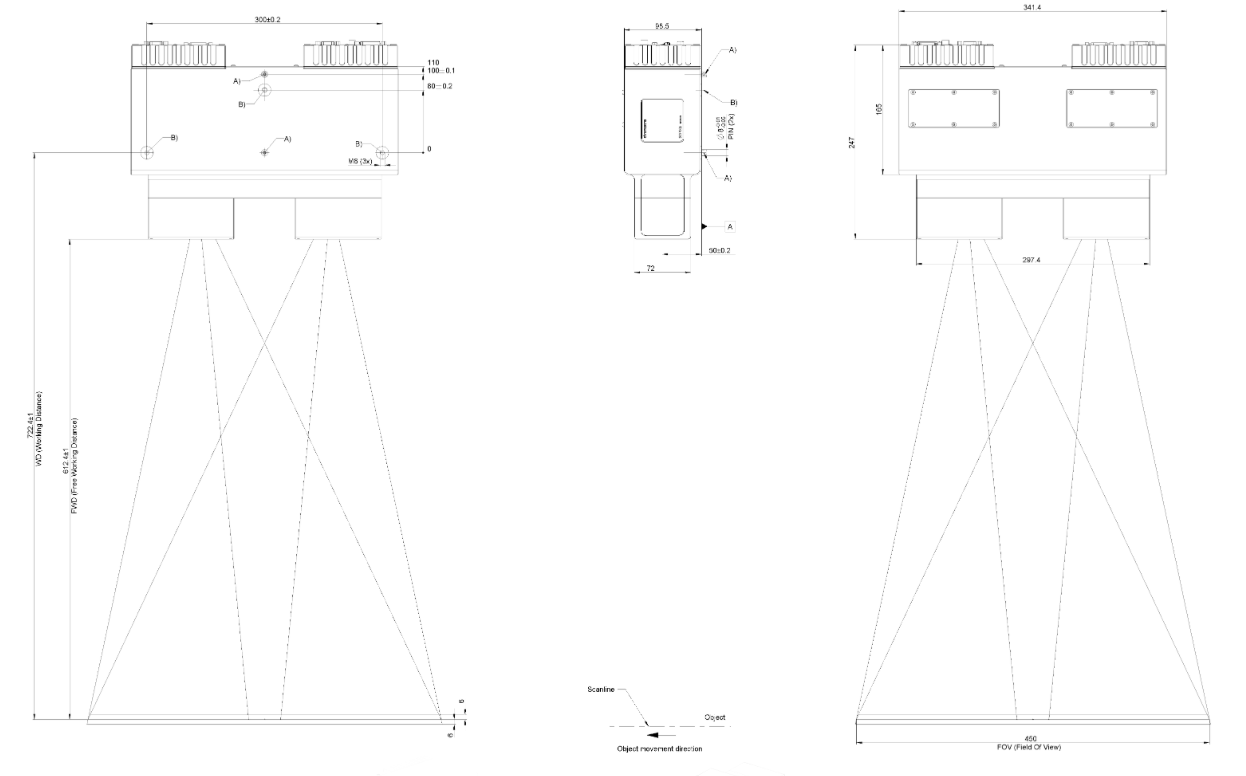

Dimensions LxWxH (mm)247 x 99 x 341
