3DPIXA wave dual 7µm

A very wide detection range of 100mm.

Main  >  Product  >  3D Cameras  >  Chromasens 3DPIXA Page  > 3DPIXA wave dual 7µm

3DPIXA wave dual 7µm

Chromasens 3DPIXA wave dual 20µm combines state-of-the-art line scan camera technology with fast 3D stereo computation on graphics cards. The stereo line scan camera delivers 3D data and colour images simultaneously. This technology allows the use of lighting that is optimized for the application.

CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size5.6 μm x 5.6 μm
InterfacesCamera Link Base/Medium
External I/O
Serial (RS-232)
Power supply (Hirose)
Power supply24 V DC +/- 10% 40 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS
Optical resolution (µm/pixel)6.8
Field of view (mm)100
Number of pixel14700
Height resolution (µm)*0.44
Height range (mm)**0.9
Free working distance (mm)140.4
Maximum speed (mm/s)124
Line frequency (kHz)18.4

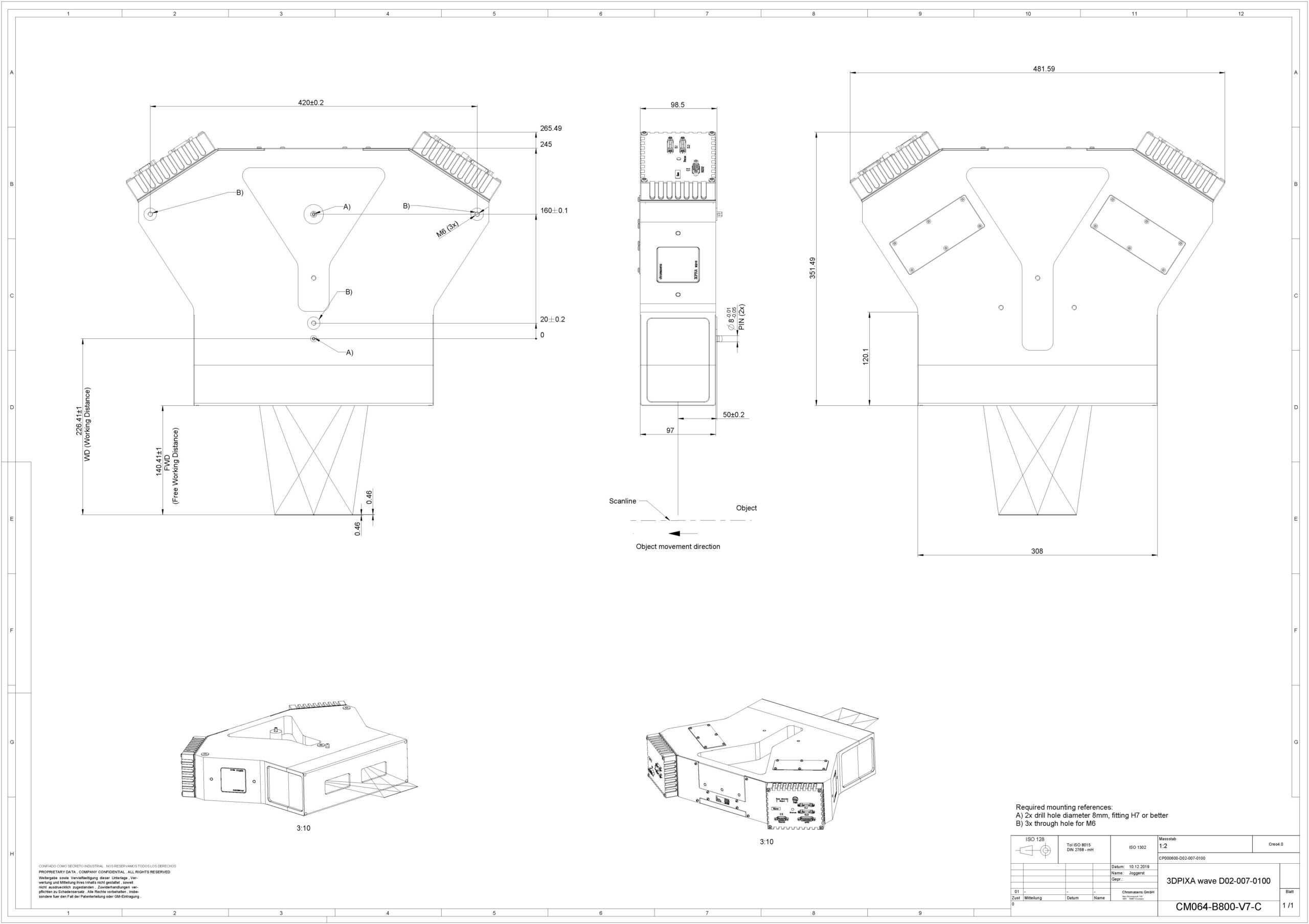

Dimensions LxWxH (mm)482 x 99 x 352
