V2CF1000
V2CF1000 has broken through the limitations of traditional measurement methods and provided an optical measurement solution with higher accuracy and faster speed than the traditional ones for Industry 4.0. It can conduct a high-precision 3D inspection with submicron precision for complex objects like transparent glass, film, lithium batteries, 3C electronics products, and semiconductor components.
| Model Name | V2CF1000 |
|---|---|
| Measurement range (mm) | 3 |
| Z-repeatability (μm) | 0.1 |
| Number of data points/X | 2048 |
| Stand-off distance (mm) | 16 |

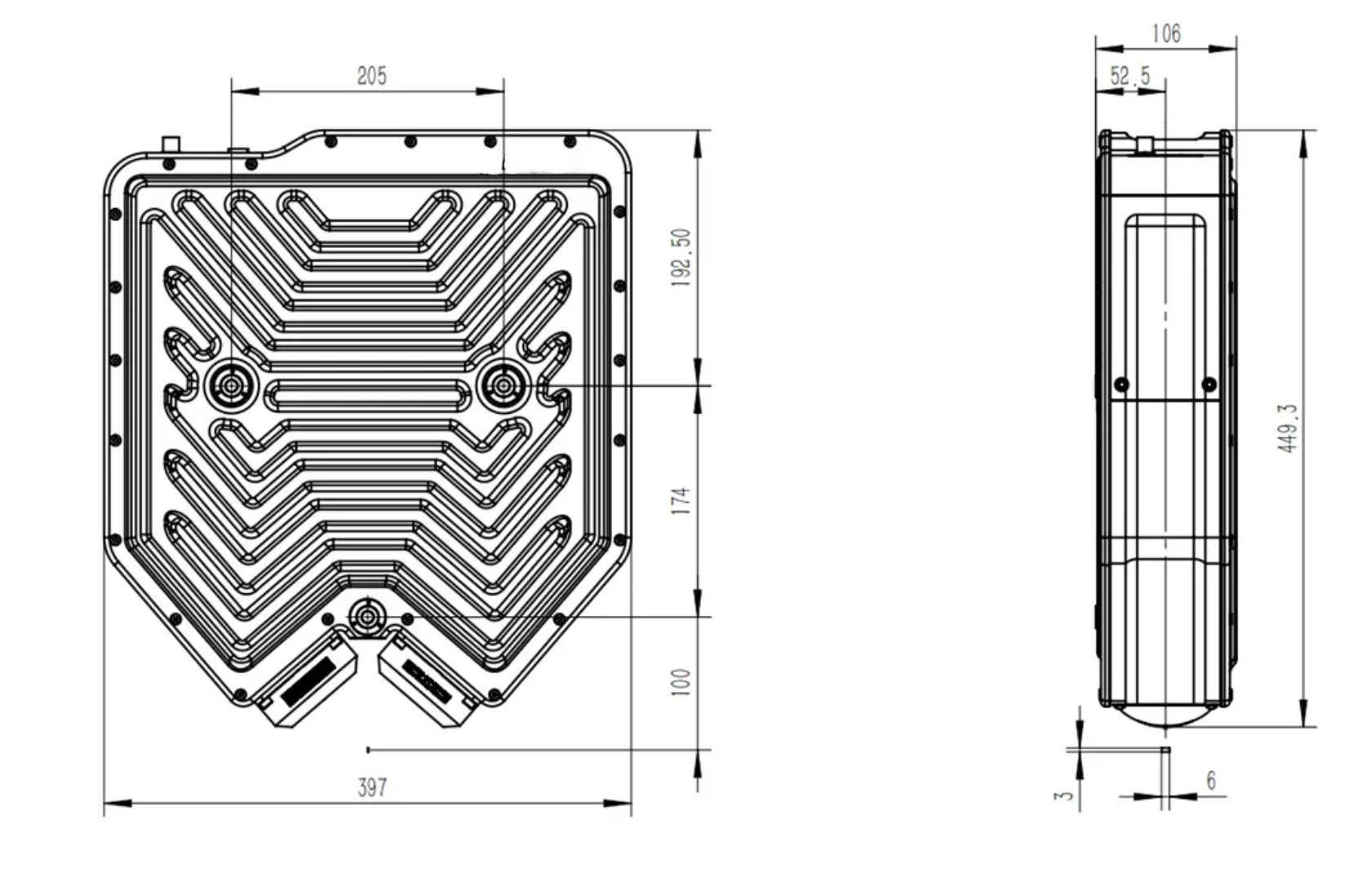

| Dimensions (H*W*D) (mm) | 449.3*397*106 |
| Ingress protection level (EN 60529) | IP55 |
| PC Connectivity | 40G Fibre Optic |
| Field of View (mm) | 6 |
| X-resolution (μm) | 2.9 |
| Max. scan rate (Hz) | 35000 |
| Scan rate of full measurement range（Hz） | 5000 |
| Max. surface slope on mirror (deg) | ±20.5 |
| Weight (kg) | 19 |
| Power | 24 VDC，3A |
| Digital input | Optocoupler input and output |
