Alvium 1800 U-1236M

Versatile USB camera with IMX304 CMOS sensor

Main  >  Product  >  Area Scan camera  >  USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U-1236M

Alvium 1800 U-1236M

Alvium 1800 U-1236 with Sony IMX304 runs 22.0 frames per second at 12.4 MP resolution.

Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.

  • IMX304 CMOS sensor
  • ALVIUM image processing
  • USB3 Vision
  • Various hardware options
Model Alvium 1800 U-1236M
InterfaceUSB3 Vision
Resolution4112 (H) × 3008 (V)
SensorSony IMX304
Sensor typeCMOS
Shutter modeGlobal shutter
Sensor sizeType 1.1
Pixel size3.45 μm × 3.45 μm
Max. frame rate at full resolution22 fps at ≥ 300 MByte/s, Mono8
ADC12 Bit
Image buffer (RAM)256 KB
Non-volatile memory (Flash)1024 KB

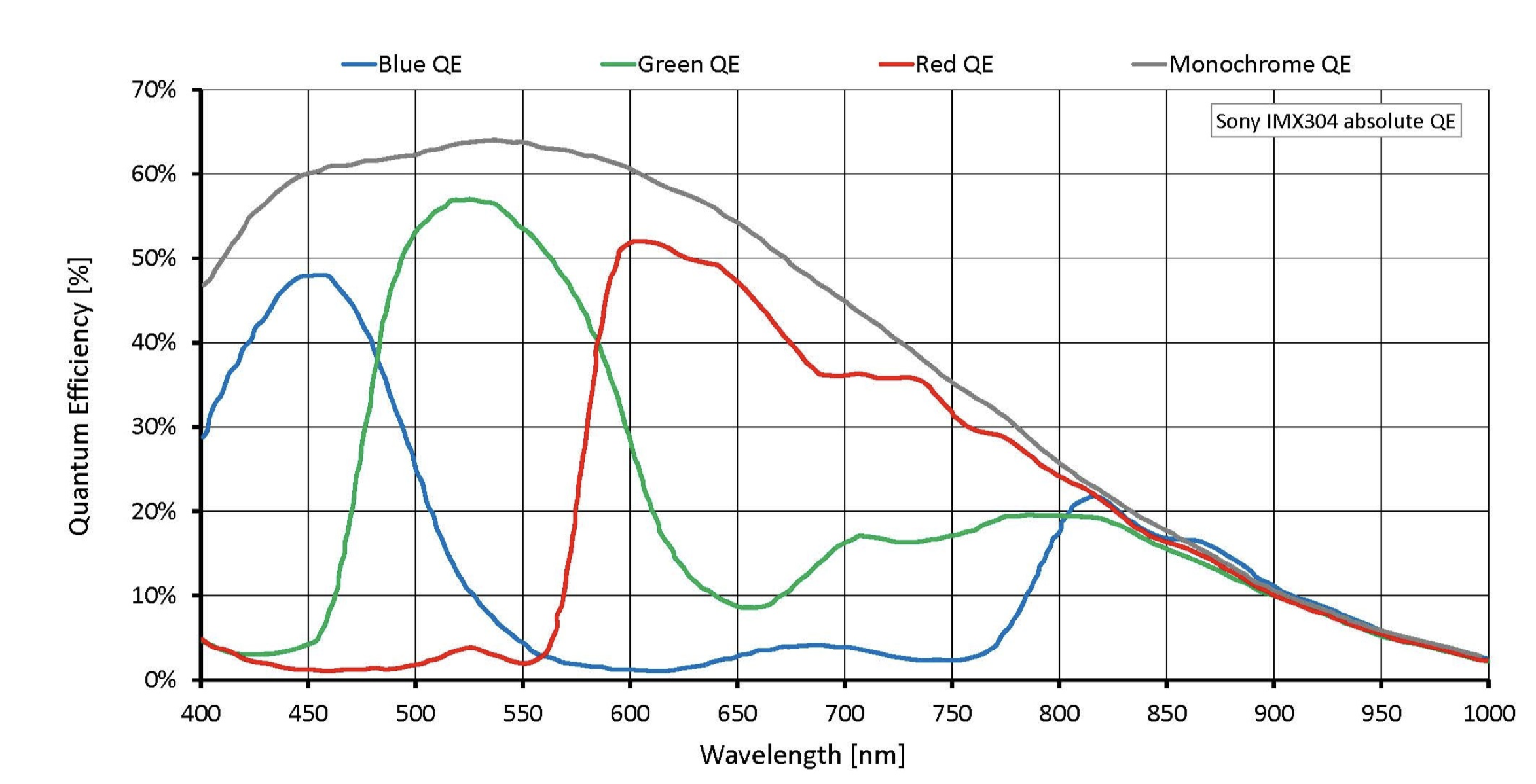

Quantum efficiency at 529 nm64 %
Temporal dark noise2.7 eˉ
Saturation capacity10400 eˉ
Dynamic range72 dB
Absolute sensitivity threshold2.7 eˉ
Bit depthMax. 12 Bit
Monochrome pixel formatsMono8, Mono10, Mono10p, Mono12, Mono12p
TTL I/Os4 programmable GPIOs
Operating temperature+5 °C to +65 °C (housing)
Power requirements (DC)Power over USB 3.1 Gen 1 | External power 5.0 V
Power consumptionUSB power: 2.9 W (typical) | Ext. power: 3.1 W (typical)
Regulations2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU Regulations (RoHS); FCC Class B digital device; CAN ICES-003 (B) /
NMB-3 (B

Configure Your Camera

Closed Housing

ClosedHousingC-Mount

1800 U-1236M   C-Mount

Order code : V214698

ClosedHousingC-Mount90°

1800 U-1236M   C-Mount

Order code : V214712

Open Housing

Open Housing

1800 U-1236M  C-Mount

Order code :  V214704

OpenHousingC-Mount90°

1800 U-1236M   C-Mount

Order code : V214718

Bareboard Housing

BareBoard

1800 U-1236M

Order code : V214696

BareBoard90°

1800 U-1236M

Order code : V214710
