Alvium 1800 U-1240C

Versatile USB camera with IMX226 CMOS sensor

Main  >  Product  >  Area Scan camera  >  USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U-1240C

Alvium 1800 U-1240C

Alvium 1800 U-1240 with Sony IMX226 runs 29.0 frames per second at 12.2 MP resolution.

Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.

  • IMX226 CMOS sensor
  • ALVIUM image processing
  • USB3 Vision
  •  Various hardware options
Model Alvium 1800 U-1240C
InterfaceUSB3 Vision
Resolution4024 (H) × 3036 (V)
SensorSony IMX226
Sensor typeCMOS
Shutter modeGlobal reset and Rolling shutter
Sensor sizeType 1/1.7
Pixel size1.85 μm × 1.85 μm
Optical FilterType Hoya C5000 IR cut filter
Max. frame rate at full resolution29 fps at 375 MByte/s, Mono8
ADC10 Bit
Image buffer (RAM)256 KB
Non-volatile memory (Flash)1024 KB

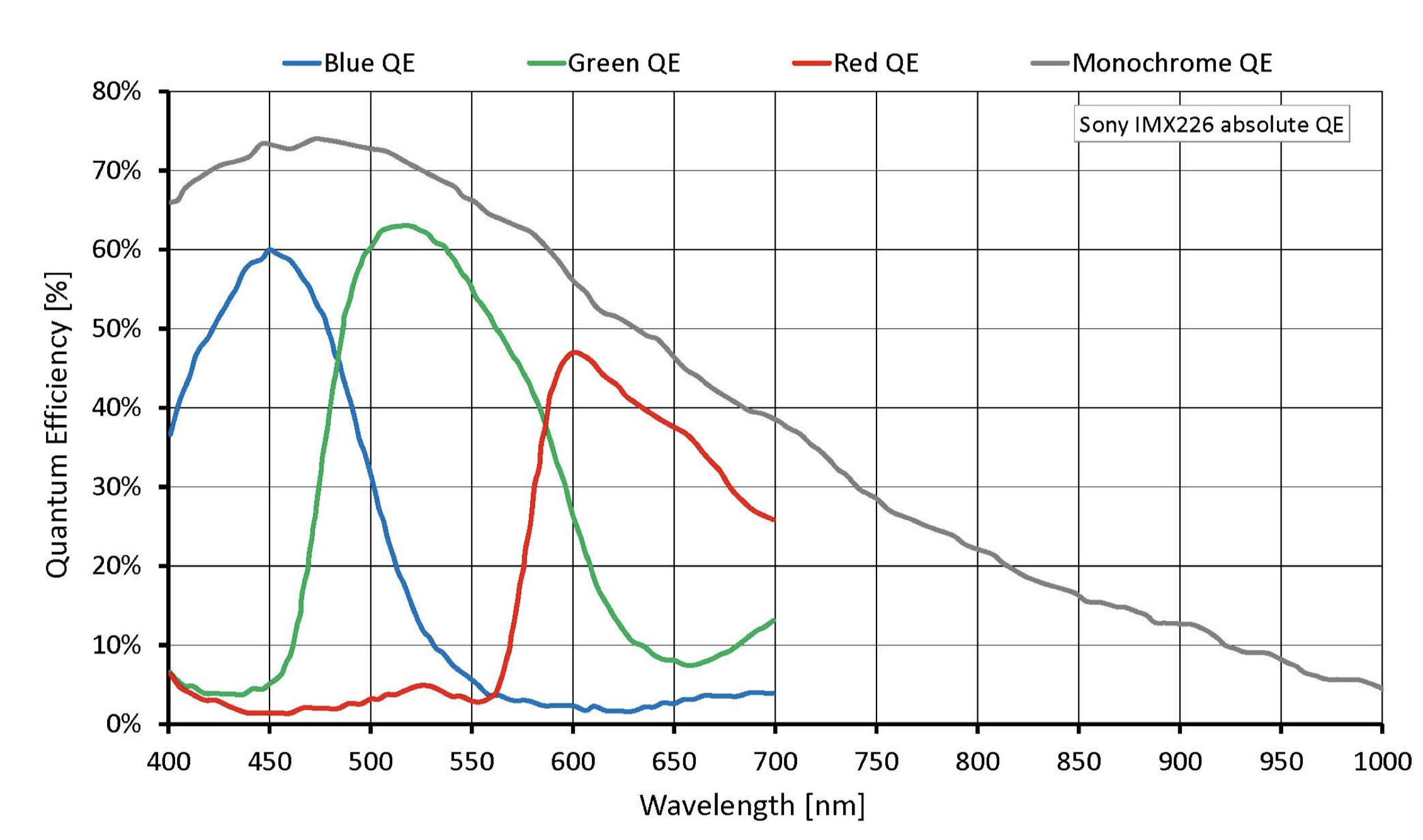

Quantum efficiency at 529 nm74 %
Temporal dark noise4.8 eˉ
Saturation capacity10500 eˉ
Dynamic range65 dB
Absolute sensitivity threshold6.3 eˉ
Bit depthMax. 10 Bit
Monochrome pixel formatsMono8, Mono10, Mono10p
YUV color pixel formatsYCbCr411_8_CbYYCrYY, YCbCr422_8_CbYCrY, YCbCr8_CbYCr
RGB color pixel formatsBayerRG8, BayerRG10, BayerRG10p, BGR8, RGB8 (default)
TTL I/Os4 programmable GPIOs
Operating temperature+5 °C to +65 °C (housing)
Power requirements (DC)Power over USB 3.1 Gen 1 | External power 5.0 V
Power consumptionUSB power: 3.1 W (typical) | Ext. power: 3.3 W (typical)
Regulations2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU Regulations (RoHS); FCC Class B digital device; CAN ICES-003 (B) /
NMB-3 (B

Configure Your Camera

Closed Housing

ClosedHousingC-Mount

1800 U-1240C   C-Mount

Order code : V214805

ClosedHousingCS-Mount

1800 U-1240C CS-Mount

Order code : V214806

ClosedHousingS-Mount

1800 U-1240C   S-Mount

Order code : V214807

ClosedHousingC-Mount90°

1800 U-1240C   C-Mount

Order code : V214819

ClosedHousingCS-Mount90°

1800 U-1240C  CS-Mount

Order code : V214820

ClosedHousingS-Mount90°

1800 U-1240C  S-Mount

Order code : V214821

Open Housing

Open Housing

1800 U-1240C  C-Mount

Order code :  V214811

OpenHousingCS-MountStandard

1800 U-1240C CS-Mount

Order code :  V214812

OpenHousingS-MountStandard

1800 U-1240C   S-Mount

Order code :  V214813

OpenHousingC-Mount90°

1800 U-1240C   C-Mount

Order code : V214825

OpenHousingCS-Mount90

1800 U-1240C   CS-Mount

Order code : V214826

OpenHousingS-Mount90°

1800 U-1240C   S-Mount

Order code : V214827

Bareboard Housing

BareBoard

1800 U-1240C

Order code : V214801

BareBoard90°

1800 U-1240C

Order code : V214815
