Alvium 1800 U-319M

Versatile USB camera with IMX265 CMOS sensor

Main  >  Product  >  Area Scan camera  >  USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U-319M

Alvium 1800 U-319M

Alvium 1800 U-319 with Sony IMX265 runs 53.0 frames per second at 3.2 MP resolution.

Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.

  • IMX265 CMOS sensor
  • ALVIUM image processing
  • USB3 Vision
  • Various hardware options
Model Alvium 1800 U-319M
InterfaceUSB3 Vision
Resolution2064 (H) × 1544 (V)
SensorSony IMX265
Sensor typeCMOS
Shutter modeGlobal shutter
Sensor sizeType 1/1.8
Pixel size3.45 μm × 3.45 μm
Max. frame rate at full resolution53 fps at ≥ 200 MByte/s, Mono8
ADC12 Bit
Image buffer (RAM)256 KB
Non-volatile memory (Flash)10400 eˉ

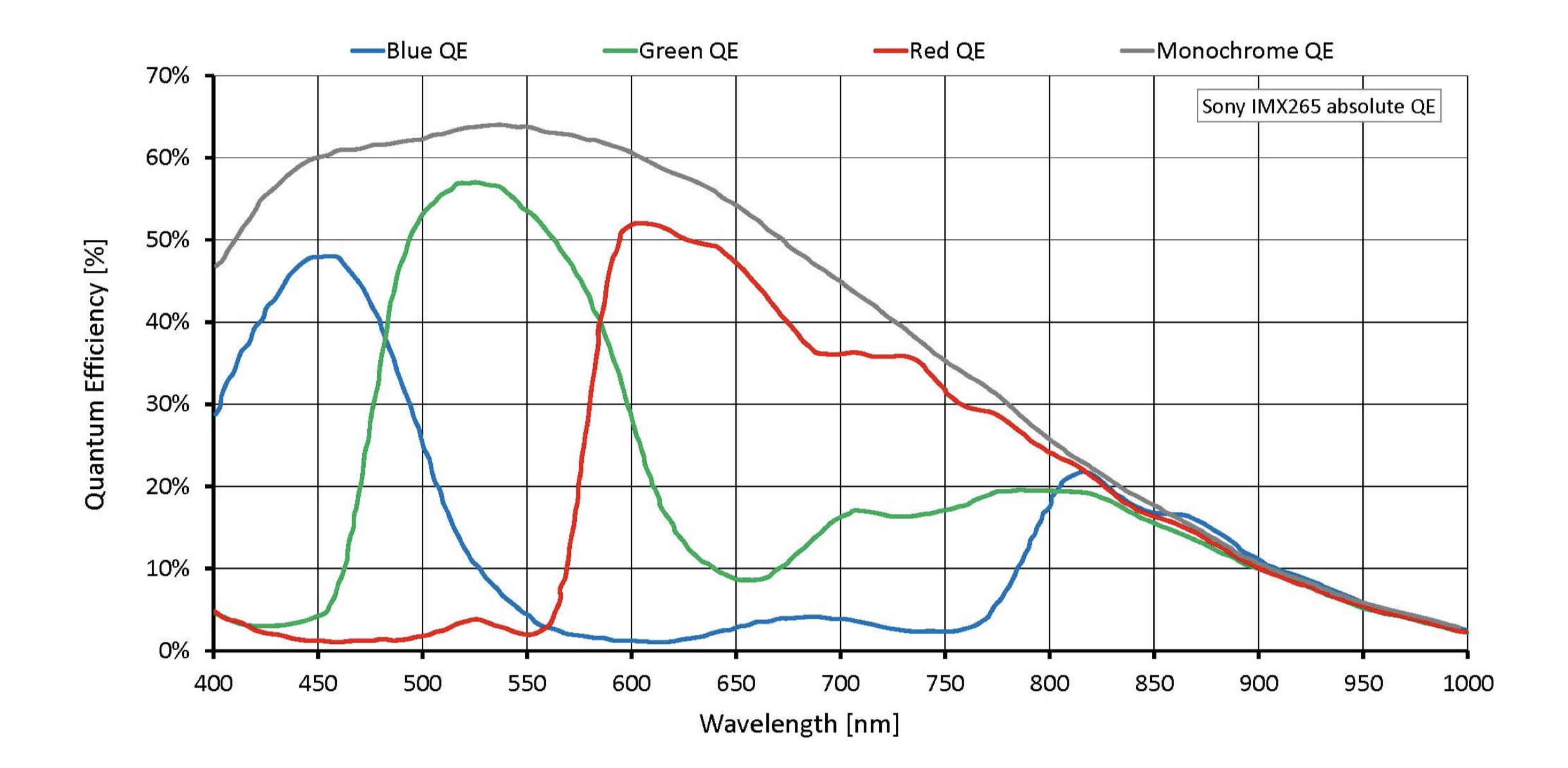

Quantum efficiency at 529 nm64 %
Temporal dark noise2.1 eˉ
Saturation capacity10400 eˉ
Dynamic range72 dB
Absolute sensitivity threshold2.7 eˉ
Bit depthMax. 12 Bit
Monochrome pixel formatsMono8, Mono10, Mono10p, Mono12, Mono12p
TTL I/Os4 programmable GPIOs
Operating temperature+5 °C to +65 °C (housing)
Power requirements (DC)Power over USB 3.1 Gen 1 | External power 5.0 V
Power consumptionUSB power: 2.2 W (typical) | Ext. power: 2.4 W (typical)
Regulations2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU Regulations (RoHS); FCC Class B digital device; CAN ICES-003 (B) /
NMB-3 (B

Configure Your Camera

Closed Housing

ClosedHousingC-Mount

1800 U-319M    C-Mount

Order code : V215098

ClosedHousingCS-Mount

1800 U-319M    CS-Mount

Order code : V215099

ClosedHousingS-Mount

1800 U-319M    S-Mount

Order code : V215100

ClosedHousingC-Mount90°

1800 U-319M    C-Mount

Order code : V215112

ClosedHousingCS-Mount90°

1800 U-319M    CS-Mount

Order code : V215113

ClosedHousingS-Mount90°

1800 U-319M    S-Mount

Order code : V215114

Open Housing

Open Housing

1800 U-319M    C-Mount

Order code :  V215104

OpenHousingCS-MountStandard

1800 U-319M     CS-Mount

Order code :  V215105

OpenHousingS-MountStandard

1800 U-319M    S-Mount

Order code :  V215106

OpenHousingC-Mount90°

1800 U-319M    C-Mount

Order code : V215118

OpenHousingCS-Mount90

1800 U-319M    CS-Mount

Order code : V215119

OpenHousingS-Mount90°

1800 U-319M    S-Mount

Order code : V215120

Bareboard Housing

BareBoard

1800 U-319M

Order code : V215096

BareBoard90°

1800 U-319M

Order code : V215110
