Alvium 1800 U-500M

Versatile USB camera with ON Semi AR0521SR CMOS sensor

Main  >  Product  >  Area Scan camera  >  USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U-500M

Alvium 1800 U-500M

Alvium 1800 U-500 with ON Semi AR0521SR runs 68.0 frames per second at 5.0 MP resolution.

Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.

  • AR0521 CMOS sensor
  • ALVIUM image processing
  • USB3Vision
Model Alvium 1800 U-500M
InterfaceUSB3 Vision
Resolution2592 (H) × 1944 (V)
SensorON Semi AR0521SR
Sensor typeCMOS
Shutter modeRolling shutter
Sensor sizeType 1/2.5
Pixel size2.2 μm × 2.2 μm
Max. frame rate at full resolution68 fps at ≥ 375 MByte/s, Mono8
ADC10 Bit
Image buffer (RAM)256 KB
Non-volatile memory (Flash)1024 KB

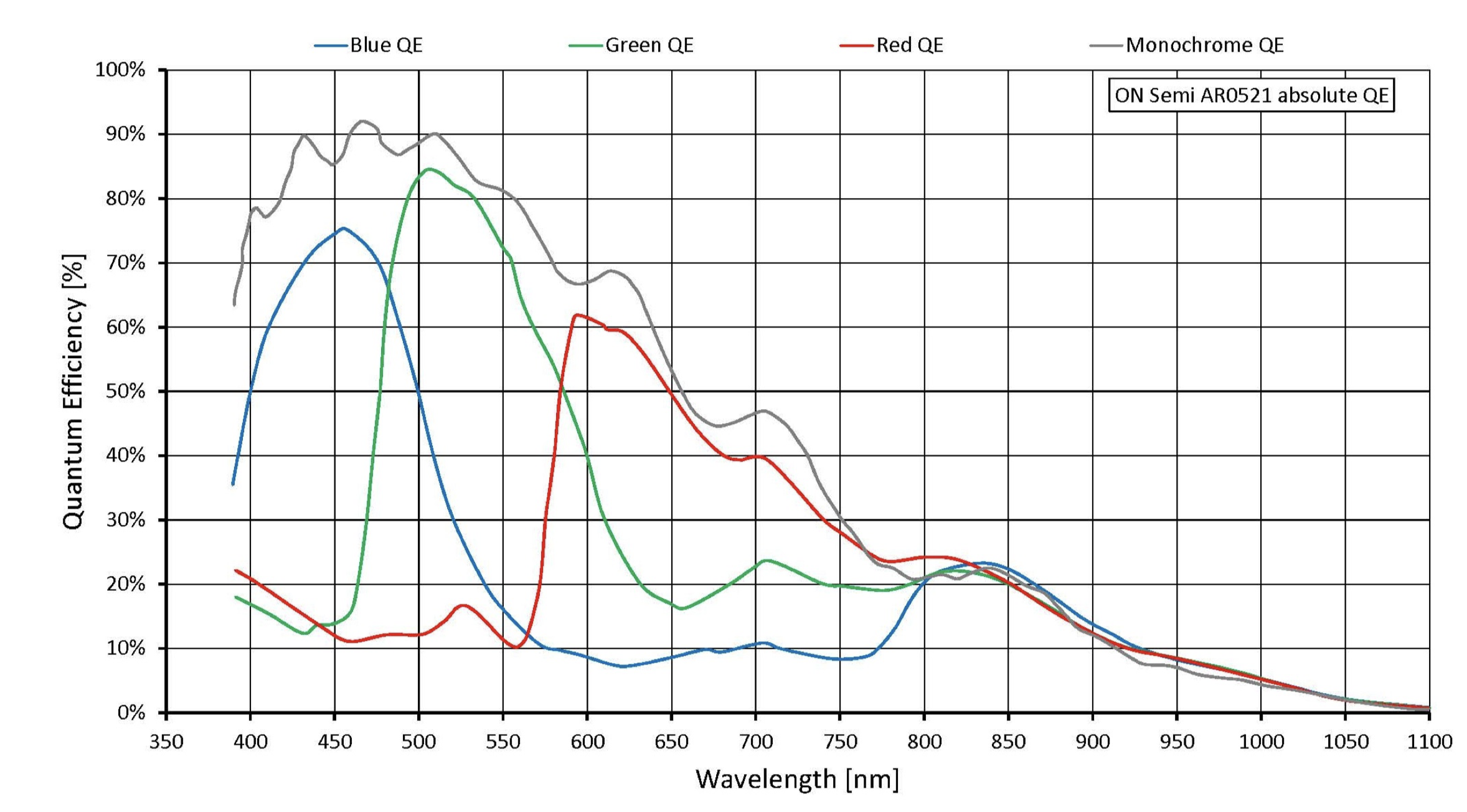

Quantum efficiency at 529 nm79 %
Temporal dark noise5.9 eˉ
Saturation capacity9890 eˉ
Dynamic range63 dB
Absolute sensitivity threshold7.1 eˉ
Bit depthMax. 10 Bit
Monochrome pixel formatsMono8, Mono10, Mono10p
TTL I/Os4 programmable GPIOs
Operating temperature+5 °C to +65 °C (housing)
Power requirements (DC)Power over USB 3.1 Gen 1 | External power 5.0 V
Power consumptionUSB power: 2.2 W (typical) | Ext. power: 2.4 W (typical)
Regulations2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU Regulations (RoHS); FCC Class B digital device; CAN ICES-003 (B) /
NMB-3 (B

Configure Your Camera

Closed Housing

ClosedHousingC-Mount

1800 U-500M    C-Mount

Order code : V213620

ClosedHousingCS-Mount

1800 U-500M  CS-Mount

Order code : V213619

ClosedHousingS-Mount

1800 U-500M    S-Mount

Order code : V213618

ClosedHousingC-Mount90°

1800 U-500M    C-Mount

Order code : V213626

ClosedHousingCS-Mount90°

1800 U-500M   CS-Mount

Order code : V213625

ClosedHousingS-Mount90°

1800 U-500M    S-Mount

Order code : V213624

Open Housing

Open Housing

1800 U-500M    C-Mount

Order code :  V212907

OpenHousingCS-MountStandard

1800 U-500M    CS-Mount

Order code :  V212906

OpenHousingS-MountStandard

1800 U-500M    S-Mount

Order code :  V212905

OpenHousingC-Mount90°

1800 U-500M    C-Mount

Order code : V212899

OpenHousingCS-Mount90

1800 U-500M      CS-Mount

Order code : V212898

OpenHousingS-Mount90°

1800 U-500M     S-Mount

Order code : V2128997

Bareboard Housing

BareBoard

1800 U-500M

Order code : V212904

BareBoard90°

1800 U-500M

Order code : V212896
