Alvium 1800 U-501 NIRM
Versatile USB camera with ON Semi AR0522 CMOS sensor
Main > Product > Area Scan camera > USB3 Cameras > Allied Vision USB3 Cameras > Alvium 1800 U-501 NIRM
Alvium 1800 U-501 NIRM
Alvium 1800 U-501 NIR with ON Semi AR0522 runs 68.0 frames per second at 5.0 MP resolution.
Alvium 1800 U is your entry into high-performance imaging with ALVIUM® Technology for industrial applications. Equipped with the newest generation of sensors, these small and lightweight cameras deliver high image quality and frame rates at the best price-performance ratio. With its USB3 Vision compliant interface and industrial-grade hardware, it is your workhorse for different machine vision applications whether it is on a PC-based or an embedded system.
- ON Semi AR0522 CMOS sensor
- ALVIUM image processing
- USB3 Vision
- Mono and color models
| Model | Alvium 1800 U-501 NIRM |
|---|---|
| Interface | USB3 Vision |
| Resolution | 2592 (H) × 1944 (V) |
| Sensor | onsemi AR0522 |
| Sensor type | CMOS |
| Shutter mode | Rolling shutter |
| Sensor size | Type 1/2.5 |
| Pixel size | 2.2 μm × 2.2 μm |
| Max. frame rate at full resolution | 68 fps at ≥ 375 MByte/s, Mono8 |
| ADC | 10 Bit |
| Image buffer (RAM) | 256 KB |
| Non-volatile memory (Flash) | 1024 KB |

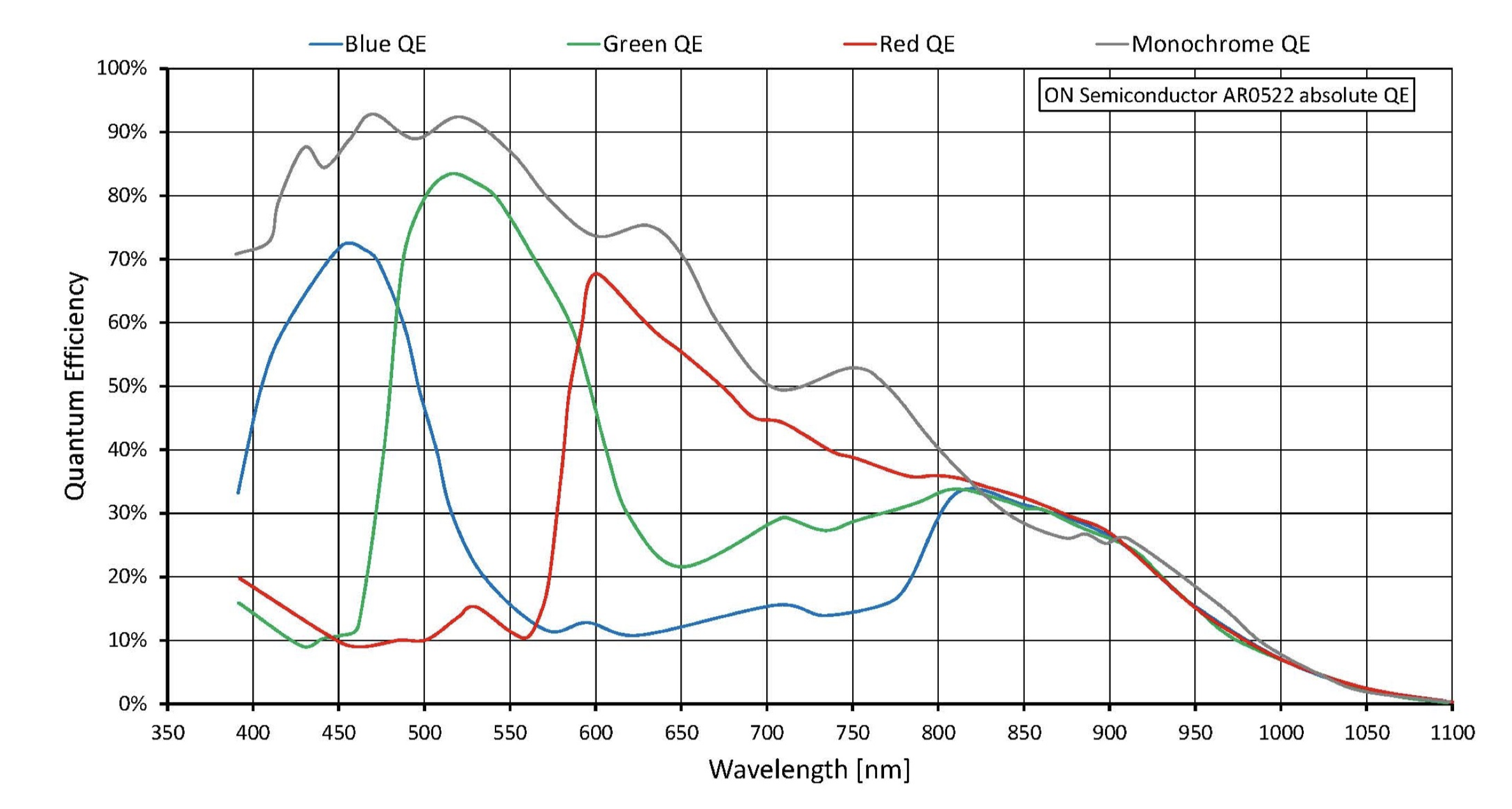

| Quantum efficiency at 529 nm | 84 % |
| Temporal dark noise | 6.9 eˉ |
| Saturation capacity | 10600 eˉ |
| Dynamic range | 62 dB |
| Absolute sensitivity threshold | 8 eˉ |
| Bit depth | Max. 10 Bit |
| Monochrome pixel formats | Mono8, Mono10, Mono10p |
| TTL I/Os | 4 programmable GPIOs |
| Operating temperature | +5 °C to +65 °C (housing) |
| Power requirements (DC) | Power over USB 3.1 Gen 1 | External power 5.0 V |
| Power consumption | USB power: 2.2 W (typical) | Ext. power: 2.4 W (typical) |
| Regulations | 2014/30/EU; 2011/65/EU, incl. amendment 2015/863/EU Regulations (RoHS); FCC Class B digital device; CAN ICES-003 (B) / NMB-3 (B |
