APT1.5-110
While being compact in size and light in weight the VS-TC & APT series are our largest collection of telecentric lenses with WDs ranging from 40- 340mm. They produce a clear distortionless, high contrast image.
- 1/2″ – 2/3″ sensor support
- 70 models available
- Compact
- Light weight
- Telecentric design
| Model | APT1.5-110 | |
|---|---|---|
| Optical mag. | x1.5 ±5% | |
| 1/1.8" | 3.6 x 4.7mm | |
| FOV (VxH) | 1/2" | 3.2 x 4.3 mm |
| 1/3" | 2.4 x 3.2mm | |
| WD | 115.0mm ± 3.5 | |
| O/I (Object & Imager distance) | 210.0mm | |
| Working F/# | 18.7 | |
| NA | 0.040 | |
| DOF at PCoC φ0.04mm | 0.7 mm | |
| TV distortion (max.) | 0.00% | |
| Wavelength | Visible | |
| Camera mount | C-mount | |
| Flange back | 17.526mm | |
| Sensor size (max.) | 1/1.8" | |
| Co-axial prism | - | |
| Weight (approx.) | 34g | |

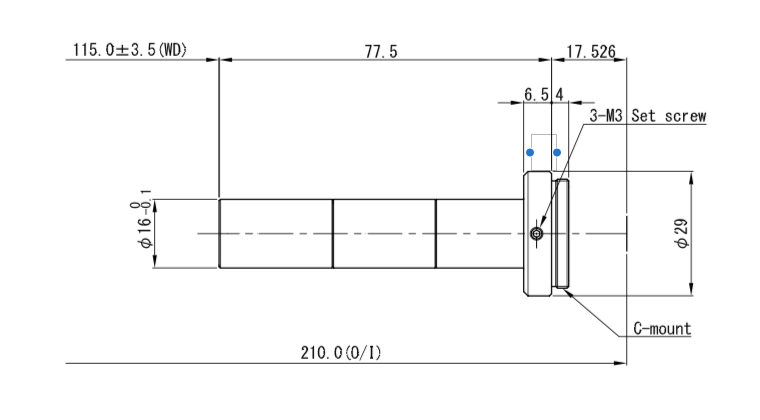

| Dimension | φ29 (MAX) x L=77.5mm |
