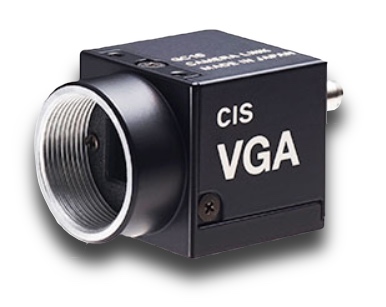

CIS VCC-GC10V31L
VCC-GC10V31L is an industrial B/W digital video camera module utilizing a 1/3 type, global shutter type, CMOS. At Full Frame Scan Mode, entire pixels can be read out within approx. 1/60s. Interface of GC10V31L complies with a camera link standard, (the one to be determined as PoCL-Lite).
22mm cubic in size, approx. 19g, very small and light, PoCL-Lite interfaced B/W camera. Only 0.65W consumed for power consumption so that it is easy to use for temperature concerned embedded systems like semiconductor related equipments. Power can be supplied via 14pins thin cable and total system cost can be reduced. Best suited for size and weight-concious systems currently using remote head cameras and others.
| Model | VCC-GC10V31L |
|---|---|
| Color/Mono | Mono |
| Resolution | VGA |
| Frame Rate | 60fps |
| Output Format | 10bit |
| Sensor | MT9V024 |
| Image Sensor | 1/3” CMOS |
| Effective Pixels | 752 x 480 |
| Unit Cell Size (μm) | 6.00 x 6.00 |
| Horizontal Frequency (kHz) | 31.468 |
| Pixel Clock (MHz) | 24.5454 |
| Power Consumption | 0.65W Typ |
| Power Requirement | DC12V ±10% |
| Min. Illumination | F1.4, 1 lx |
| Sensitivity | F5.6, 400 lx |
| Shutter Variable Range | Fixed: OFF(1/60), 1/120, 1/250, 1/1,000, 1/2,000, 1/4,000, 1/10,000, 1/30,000s Manual: OFF(1/60s) 〜 1/30,000s Pulse width: 1/2,000s 〜 1/40,000s |
| Signal I/F | PoCL-Lite |
| Lens Mount | NF Mount |
| Weight (g) | Approx 19 |
| Dimensions (W)x(H)x(D)mm | 22 x 22 x 22 |
