Teli CSC12M25BMP19-01B
Providing a wide range of sensors, camera formats and control methods as well as individual interfaces to meet a wide range of customer needs.
Teli CSC12M25BMP19-01B
Description
With CameraLink interface.Both of 6.5M(1.1 type 6.55M pixel 99 fps) and 12M(1.9 type 12.58M pixel 25 fps) are suitable for high speed image processing with CMOS sensor originally developed by TELI. 3 years warranty.Smoother image processing is achieved by TELI original functions.
Key Features
- Ultra High ResolutionEquipped with Teli original 12M CMOS sensor.
- Global electronic shutterGlobal electronic shutter makes the clear imaging possible even with faster-moving object.
- Random Trigger shutterIt is possible to grab and transfer the image on desirable timing by external trigger input.
- WOI(Window of interest)It is possible to read out desirable area by specifying Vertical and Horizontal position.
- Wide dynamic range”Muluti-slope” function makes to get the wider dynamic range.
- Low noise, High sensitivityComparing to our another 4Mega CMOS, it has the same or more sensitivity with less noise.
Functions
Functions for efficient image processing
- Any partial area in vertical or horizontal can be scanned with WOI function.
- 2 (H) x 2 (V) or 4 (H) x 4 (V) can be scan as 1 pixel without changing viewing direction by binning function.
- Higher speed scanning can be achieved by using WOI functions and binning function at the same time.
- CSC6M100BMP11 / CSC6M100CMP11
- Inverse pixel (horizontal / vertical) function
- CSC12M25BMP19-01B / CSC12M25CMP19
- Optimum lens can be selectable to 1.9 type 12.58M pixel image sensor by TFL-II Mount.
| Model | CSC12M25BMP19-01B |
|---|---|
| Image Sensor | CMOS Image sensor |
| Active Pixel | 4096(H) x 3072(V) |
| Active Area | 24.6mm(H) x 18.5mm(V) 1.9 type |
| Pixel Area | 6.0μm x 6.0μm |
| Electronic Shutter Method | Global Shutter |
| Scan Method | Progressive |
| Aspect Ratio | 4:3 |
| Video Output | Camera Link Data 10 / 8 bit switching |
| Frame Rate | 25fps (Global shutter, Under all pixel’s read out mode) |
| Sensitivity | 2000 lx (F5.6) |
| Gain | from 0 to 18 dB |
| Gamma | OFF (γ = 1.0 fixed) |
| Input Signal Specification | LVDS |
| Electrical Shutter Specification | Normal shutter, RDM shutter |
| RTS | Shutter speed preset or shutter speed control by pulse width |
| Power Consumption | Approx6W (in DC12V)Approx 3.36W (in DC12V) |
| Lens Mount | TFL-Ⅱ mount (Original mount) |

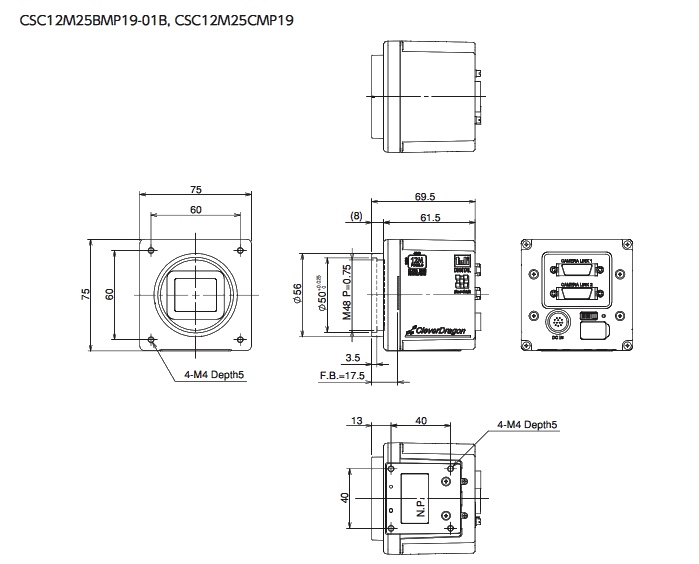

| External Dimension | 75(W) x 75(H) x 69.5(D)mm |
| Weight | Approx. 440g |
| Various Specs | CE,FCC |
