Chromasens 3DPIXA compact 30µm

The 3DPIXA is ideally suited for fast and precise 3D measurements. With its unique combination of line scan camera technology and fast 3D stereo calculation on graphics cards, the 3DPIXA simultaneously delivers 3D data and color images. In principle, all types of illumination can be used for image capturing with 3DPIXA.

CameraStereo camera with lenses (factory calibrated)
SensorTri-linear CCD line-sensor (RGB)
Active pixel size10 μm x 10 μm
InterfacesCamera Link Base/Medium
External I/O
Serial (RS-232)
Power supply (Hirose)
Power supply24 V DC +/- 10% 16 W
Trigger modeFree run / external trigger
Operating temperature0°C to 60°C, 32°F to 140°F (housing temperature)
Additional accessoriesChromasens Corona II illumination
CertificationsCE, FCC compliant, RoHS



Optical resolution (µm/pixel)30
Field of view (mm)105
Number of pixel3500
Height resolution (µm)*10
Height range (mm)**8.2

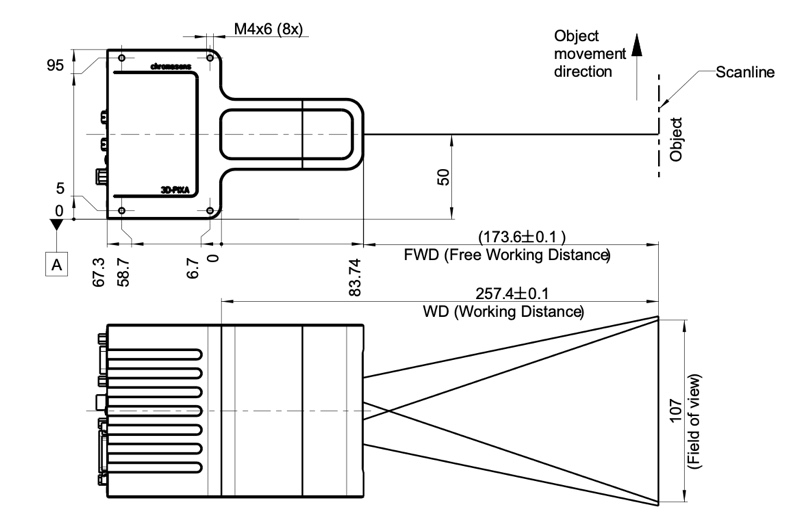

Free working distance (mm)173.6
Maximum speed (mm/s)630
Line frequency (kHz)21.2
Dimensions LxWxH (mm)151.04 x 102 x 100
