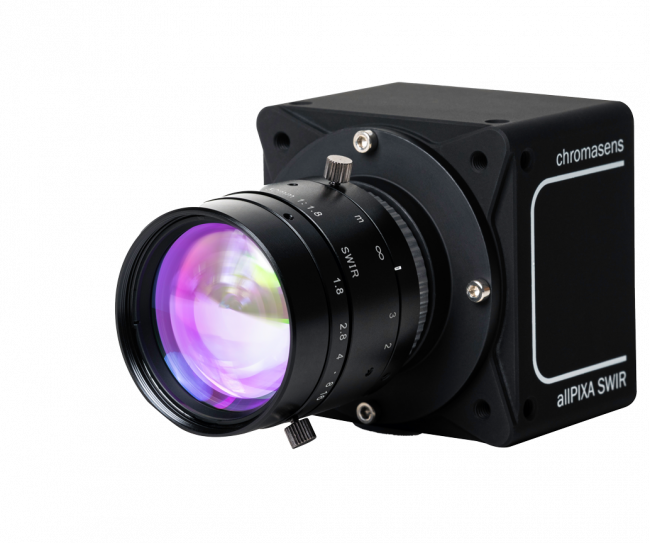

Chromasens allPIXA SWIR 512 CameraLink
Chromasens’ allPIXA SWIR is the company’s first short-wave infrared (SWIR) linescan camera. The tiny footprint of the state-of-the-art InGaAs sensor allows it to be used in a variety of machine vision applications. It features an uncooled sensor with 512 or 1k resolution with pixel sizes of 25×25 or 12.5×12.5 m for high resolution, sensitivity, and a line rate of 40 kHz. GigE Vision and CameraLink interfaces that are GenICam compliant make it simple to integrate existing machine vision systems.
The Highlight Features
- Highly-sensitive CCD line scan sensor
- Line length up to 7.3k
- Scan rates up to 92.7 kHz
- Color calibration allows internal conversion in sRGB, eciRGB, AdobeRGB, CIE-L*a*b* or CIE-XYZ in real time
- Calibration with ColorChecker and other color targets
- Stable white point is guaranteed by continuous white balancing
- Measurement for every single pixel without interpolation
Applications
- Sorting
- Recycling
- Semiconductor inspection
- Solar panel inspection
- Moisture detection
- Chemical identification
- Anti-counterfeiting
- Medical / Biomedical
| Model | Chromasens allPIXA SWIR 512 CameraLink |
|---|---|
| Sensor | Linear InGaAs |
| Number of pixels | 512 x 1 pixels |
| Active pixel size | 25 μm x 25 μm (512) |

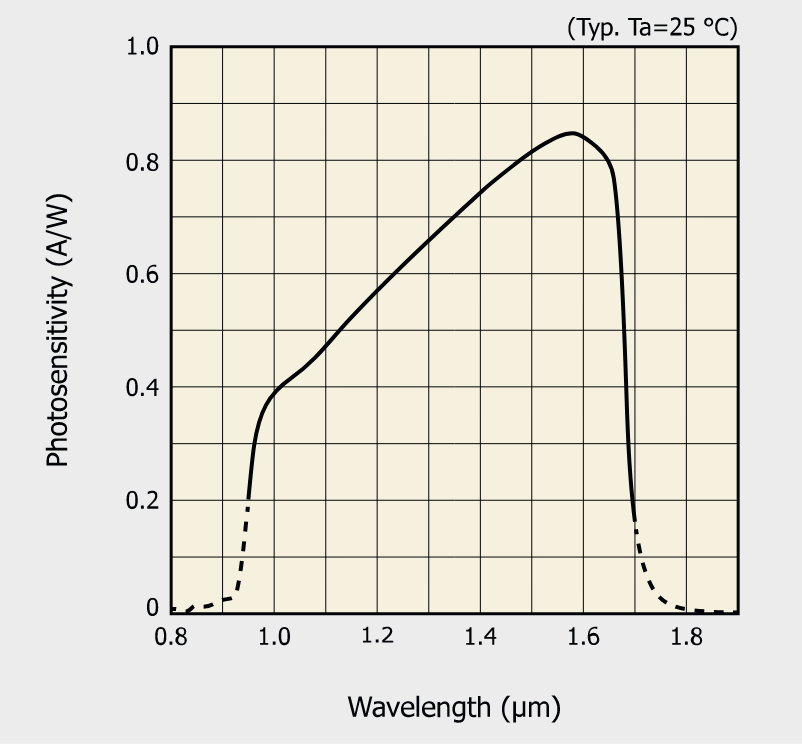

| Spectral band | 950 nm to 1700 nm |
| Lens Mount | C-Mount (others on request) |
| Interfaces | CameraLink |
| Max. line rate | 40 kHz |
| Camera link pixel clock | 32.5 / 65 MHz |
| Sync | External trigger / Software trigger signal / Free run |
| Data format | 8, 10, 12 Bit |
| Digital inputs | 3 x RS422 (only GigE version) |
| Digital outputs | 2 x RS422 (only GigE version) |
| Power supply | 12 to 24 V DC ±10% |
| Power consumption | 6 W |

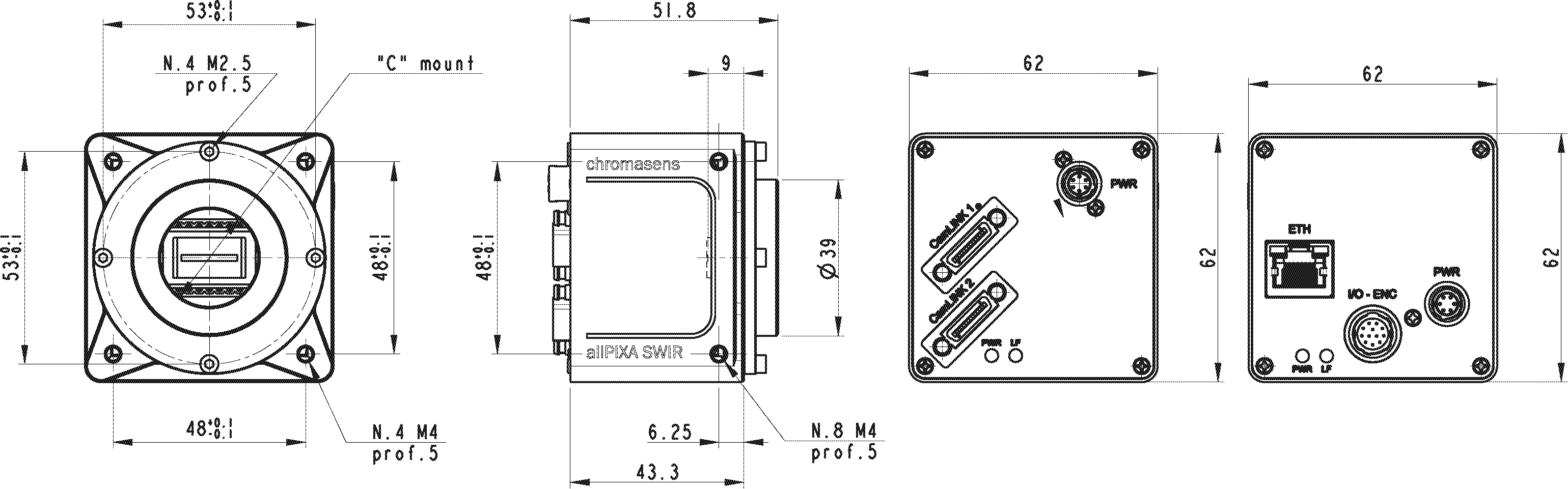

| Dimensions | L=62 mm, H=62 mm, D=52 mm |
| Weight | 170 g |
| Operating temperature | -10°C ... +50°C |
| Protection Class | IP40 |
| Conformity | CE, RoHS, REACH |
