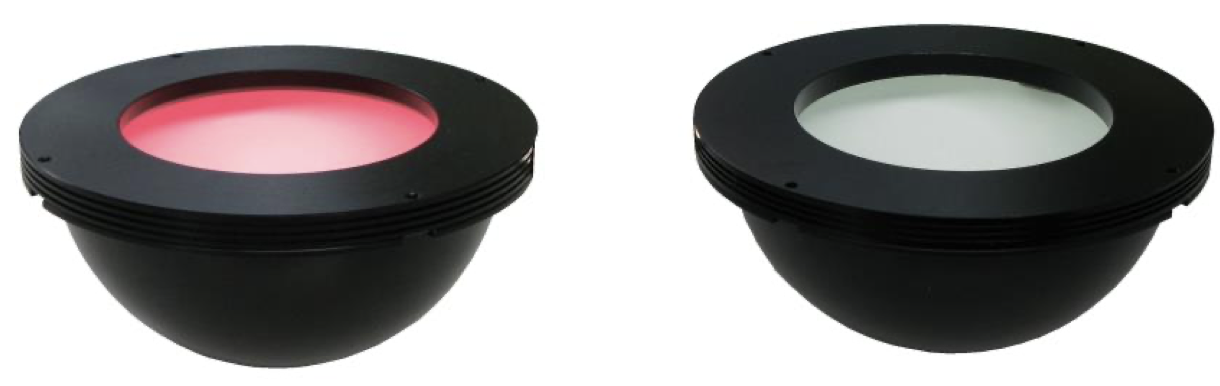

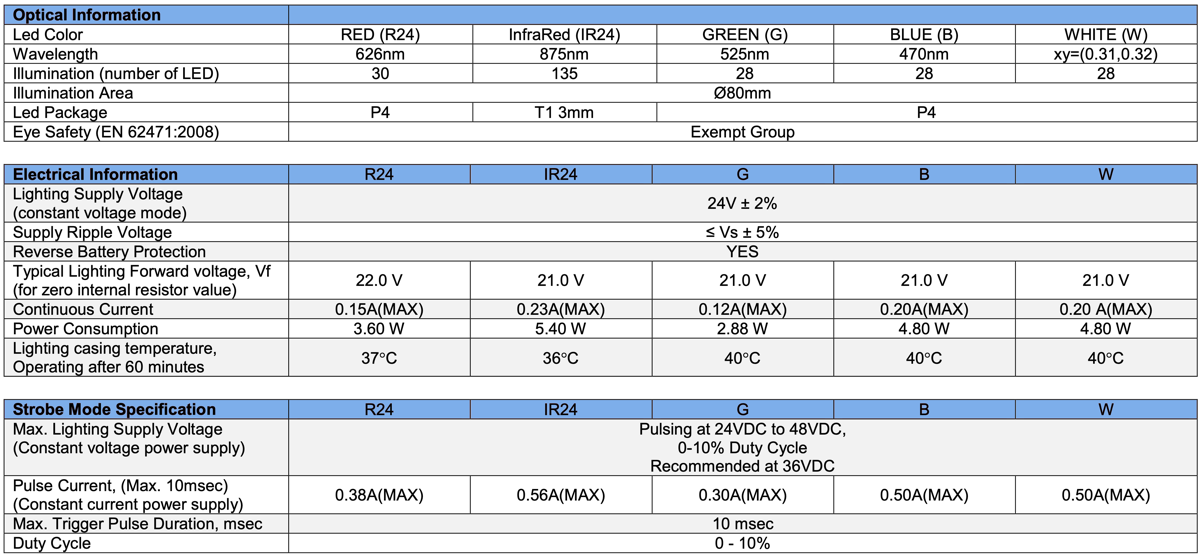

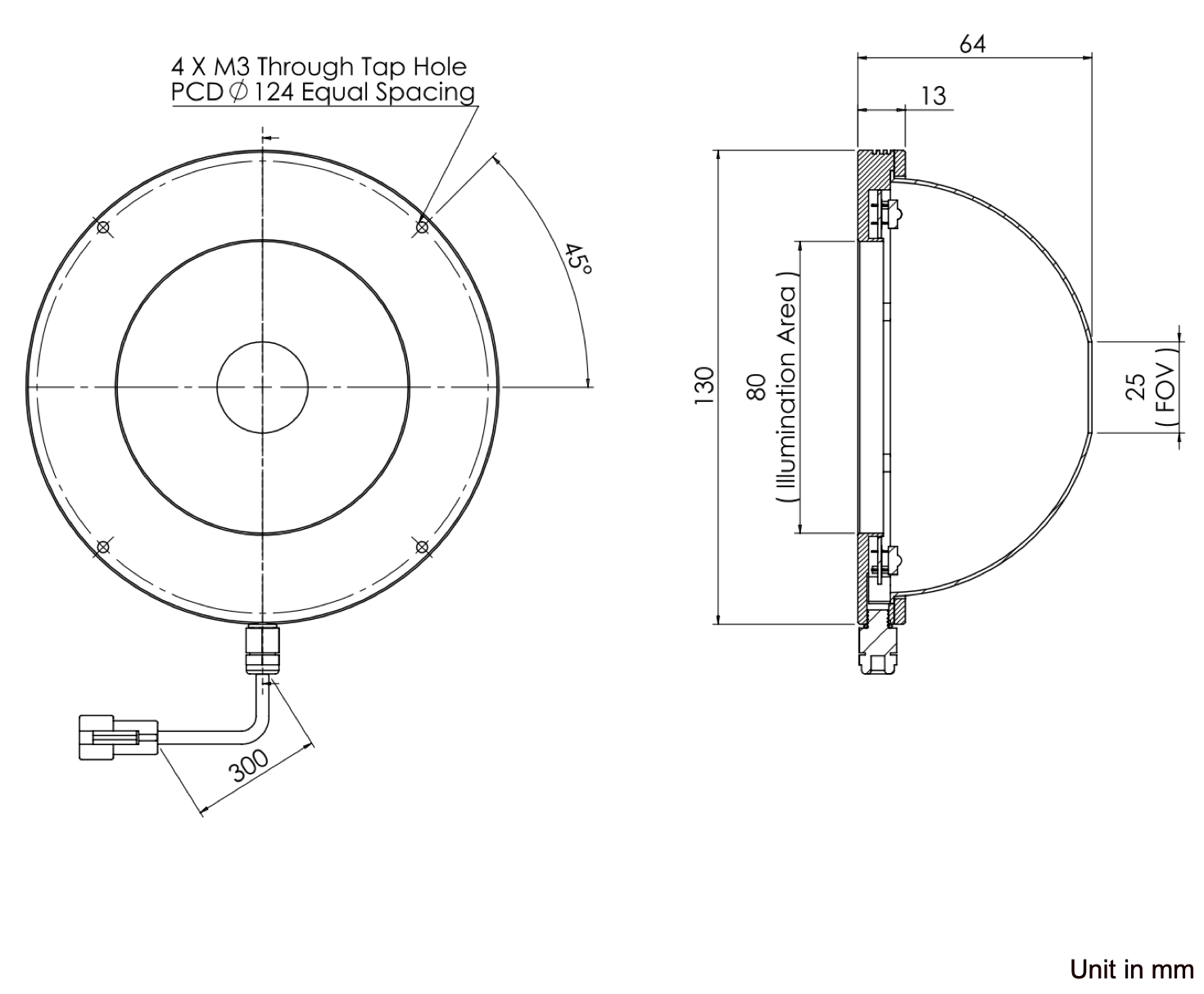

V2DM-i100  is a Dome Light  designed for machine vision application to give a very bright diffused omni-directional light to create a uniformed shadow-free illumination area . It has an external  Diameter of 130 mm and opening Diameter  of 25 mm, an illumination area of 80 mm in diameter. It comes in 5 spectrum, Red,NIR,  Blue, Green and White.

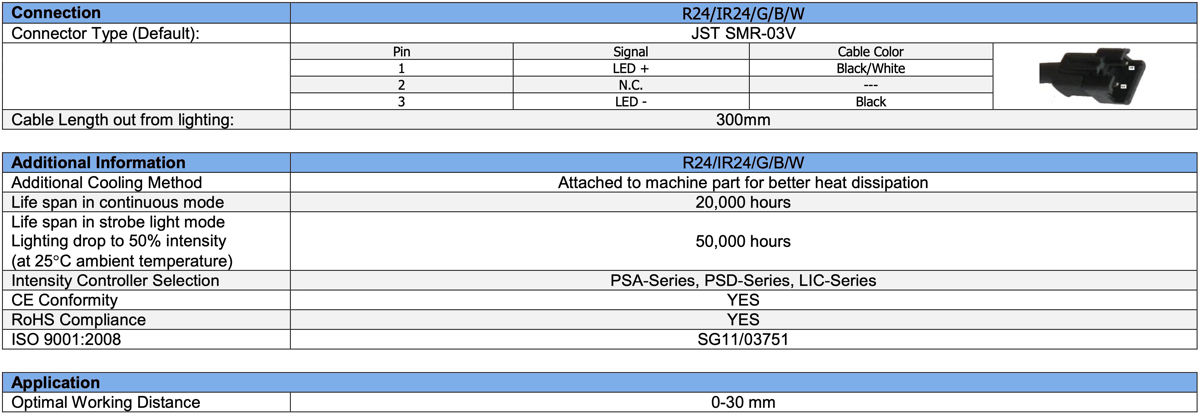

Ordering Information

Models with Resistors :        V2DM-i100-R24/IR24/G/B/W

Models without Resistors :  V2DM-i100-R24/IR24/G/B/W-O

Example : Model for Blue version with no resistor : “V2DM-i100-B-O”,   Model for Green version with resistor “V2DM-i100-G”
