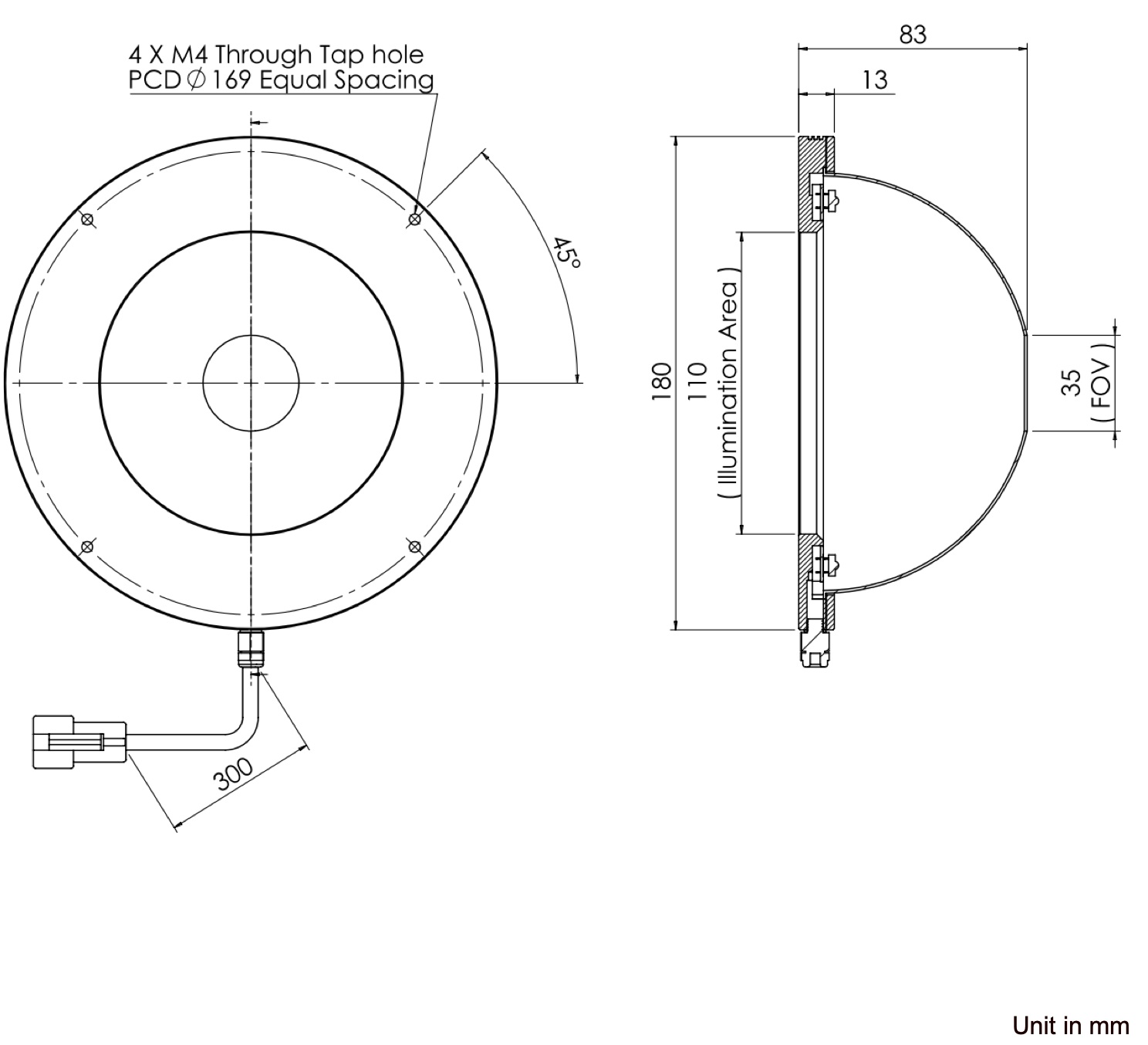

V2DM-i150  is a  Dome Light  designed for machine vision application to give a very bright diffused omni-directional light to create a uniformed shadow-free illumination area . It has an external  Diameter of 180 mm and opening Diameter  of 35 mm, an illumination area of 110 mm in diameter. It comes in 45 spectrum, Red, NIR, Blue, Green and White.

Ordering Information

Models with Resistors :         V2DM-i150-R24/IR24/G/B/W

Models without Resistors :  V2DM-i150-R24/IR24/G/B/W-O

Example : Model for Blue version with no resistor : “V2DM-i150-B-O”,   Model for Green version with resistor “V2DM-i150-G”
