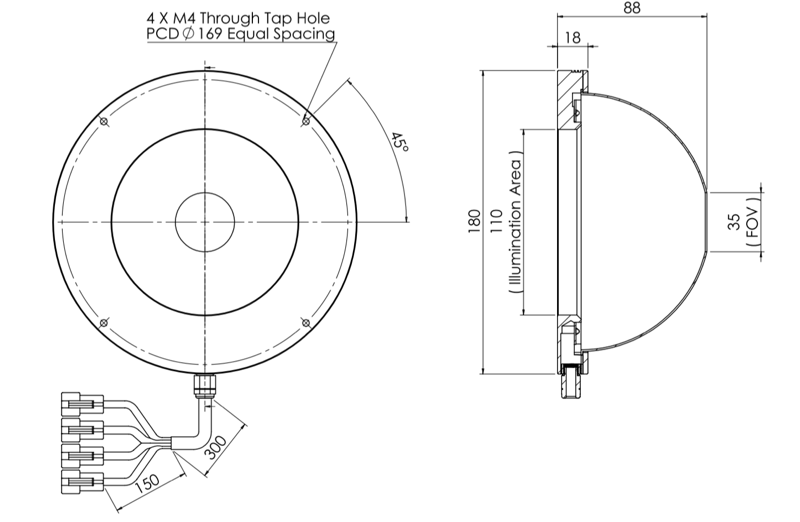

V2DM-Si150-4  is a Dome Light designed for machine vision application to give a very bright diffused omni-directional light to create a uniformed shadow-free illumination area . It has an external  Diameter of 180 mm and opening Diameter  of 35 mm, an illumination area of 110 mm in diameter. It comes in 3 spectrum Green, Blue and White. V2DM-Si150-4 provide a super bright lighting, avoid stare at exposured lighting when operation. Useful for application where needs to be visible in long distance, recommended to use as strobe lighting to perform high brightness lighting with longer life span.

Ordering Information

Models with Resistors :         V2DM-Si150-4-G/B/W

Models without Resistors :  V2DM-Si150-4-G/B/W-O

Example : Model for White version with no resistor : “V2DM-Si150-4-W-O”,   Model for Green version with resistor “V2DM-Si150-4-G”
