Easy 3D Object
Easy3DObject is a library able to automatically extract and measure 3D objects from a Point Cloud or ZMap. Easy3D is required when using any Open eVision’s 3D library and is provided when purchasing Easy3DLaserLine, Easy3DObject, Easy3DMatch or the 3D Bundle.
The Highlight Features
- Detection of 3D objects in point clouds or ZMaps
- Metric detection criteria
- Compatible with arbitrary regions
- Computation of precise 3D measurements, like size, orientation, area, volume…
- Automatic extraction of object local support plane
- 2D and 3D graphical display of the results
- Full-featured interactive demo application
Key Features

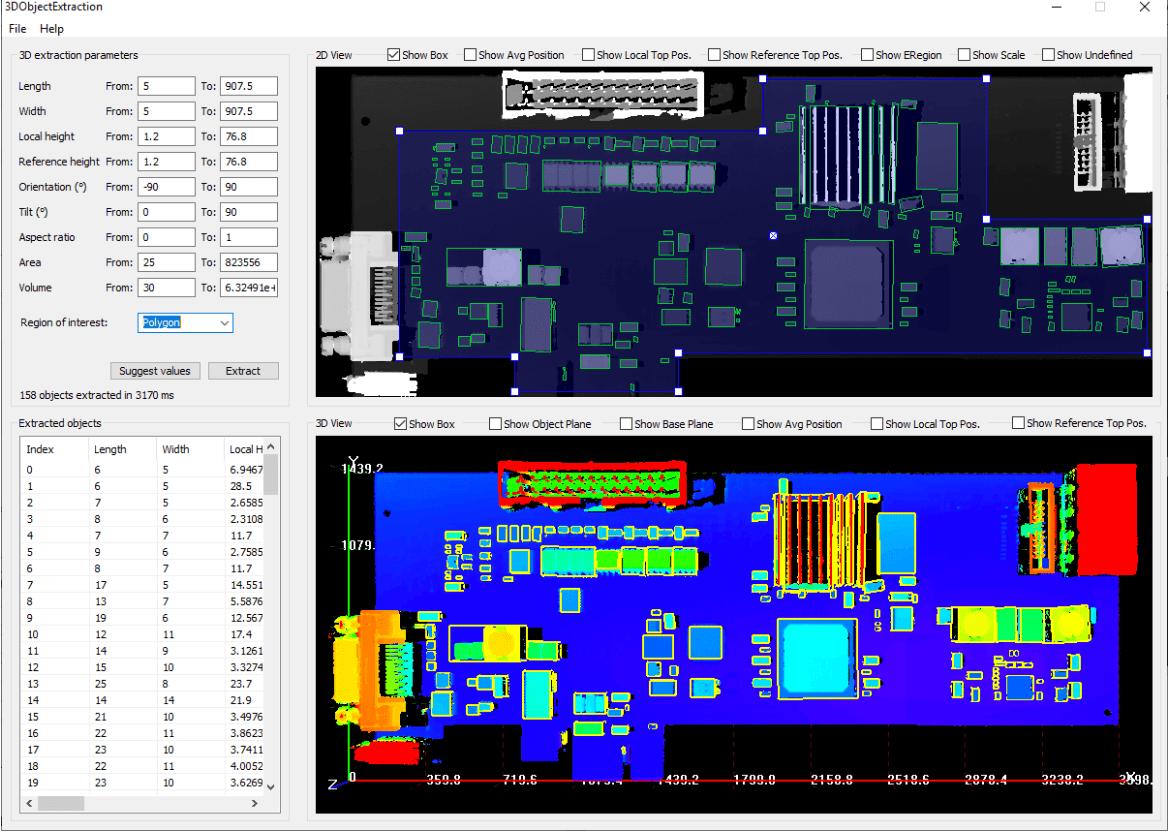

Full featured interactive demo application
A demo application for Easy3DObject is provided with complete source code. Using that application, the user will be able to learn and experiment with all the features of the Easy3DObject library. Additionally, code snippets can be generated and integrated into their applications.

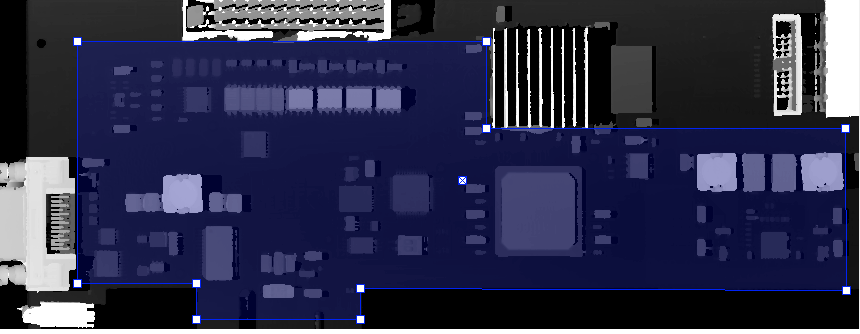

Compatible with arbitrary regions

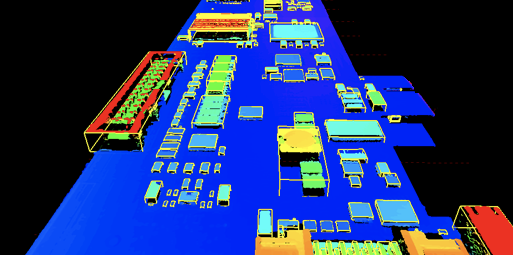

2D and 3D graphical display of the results

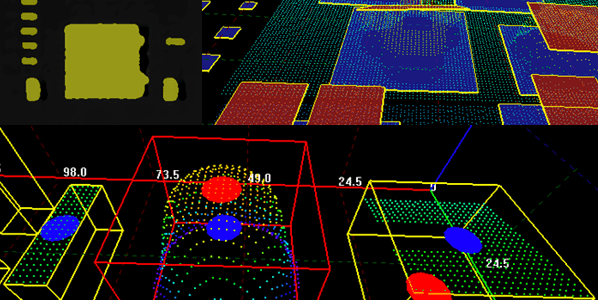

Detection of 3D objects in point cloud and ZMapDetection of 3D objects in point cloud and ZMap

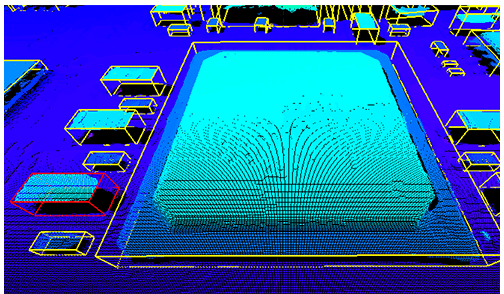

Compute precise 3D measurements, such as size, orientation, area, volume

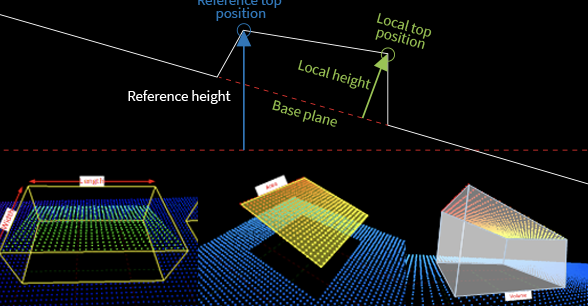

Metric detection criteria
The 3D object detection algorithm uses several geometric criteria to focus only on the required objects. These criteria are the size (length, width and height), the angle (orientation and tilt), the aspect ratio, the area and the volume of the objects. These parameters are expressed in real-world coordinate units. Using these criteria, the user can limit the extraction to the objects relevant to the inspection.
Extra Note
- All Open eVision libraries are available for Windows and Linux
- Developed with the support of the DG06 Technology Development Department
