Easy 3D
3D image processing library
Main > Product > Image Processing Software > Euresys eVision > Open eVision Libraries > Easy 3D
Easy 3D
This is the foundation library of Open eVision’s 3D libraries. It contains a set of functions to manage 3D Depth Maps, Point Clouds and ZMap objects. This is required when using any Open eVision’s 3D library and is provided when purchasing Easy3DLaserLine, Easy3DObject, Easy3DMatch or the 3D Bundle.
The Highlight Features
- Point cloud processing and management
- Flexible ZMap generation
- 3D processing functions for cropping, decimating, fitting and aligning point clouds
- Compatible with many 3D sensors
- Interactive 3D display with the 3D Viewer
Key Features

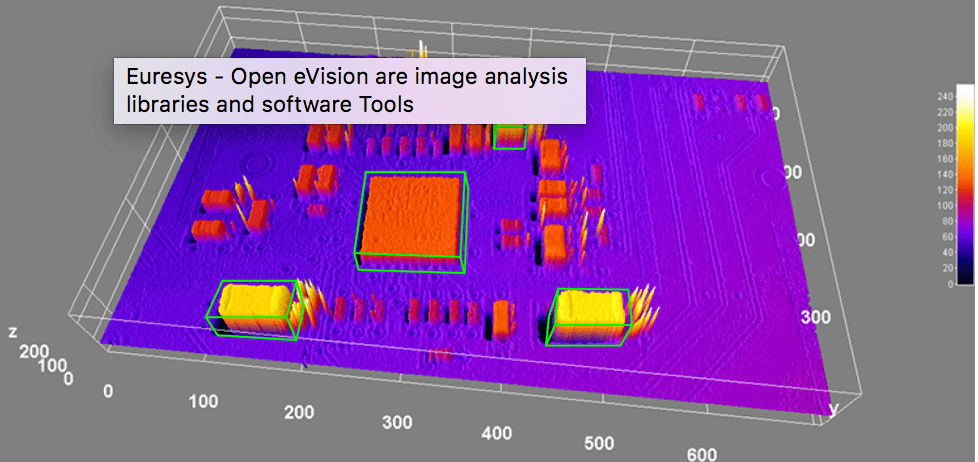

Use the 3D Viewer class to create an interactive 3D display. The 3D Viewer can display point clouds and 3D objects. It uses the OpenGL interface and requires a compatible display device.
After calibration, the 3D point cloud contains distortion-free data using a real-world 3D coordinate system. Process 3D point clouds using Easy3D functions such as coordinates transformation, point cloud cropping and decimation, plane finding and fitting or part alignment.
A ZMap is the projection of a point cloud on a reference plane, where distances are stored as pixel gray scale values. You can apply all Open eVision 2D processing functions to ZMaps: filtering and thresholding with EasyImage, blob analysis with EasyObject, sub-pixel measurement with EasyGauge, pattern matching with EasyFind and EasyMatch
Supported by Neo Licensing System
Compatibility with 3D sensors
The Easy3D library is able to import data from third-party 3D sensors from Automation Technology, Intel Realsense, Lucid Helios, LMI Gocator and others. Point Clouds and ZMaps are managed efficiently and allow 3D processing and analysis to be performed.
Extra Note
- All Open eVision libraries are available for Windows and Linux
- Developed with the support of the DG06 Technology Development Department
