V2B-D-5M-62-2.7

3D Stereo Cameras powered by Phase Shift projector for very high accuracies 3D Imaging requirement.

V2B-D-5M-62-2.7

V2B-D-5M-62-2.7 is a Stereo snap shots 3D camera powered by Blue-LED structured light pre-calibrated to give the most accurate 3D Imaging reading. Built with 5 mega pixels camera, it covers FOV of 151 x 107 mm with a XY pixels resolution of 62 um with a Z-height resolution of 2.7um at a maximum DOF of 106 mm.

Unlike lasers triangulation technology that require constant movement of objects or cameras, snapshot 3D cameras like V2B-D-5M-62-2.7 combine the use of Stereo and Phase-shift projection technologies that enable the camera in capturing 3D data of the object precisely  without needing to move either the cameras of objects. With a patented technologies, it also enables the camera to have very high DOF with respect to its FOV with unbeatable accuracies.



Vital Vision Pte Ltd logo 2022
Model NameV2B-D-5M-62-2.7
Model TypeDUE
Camera Type5MP USB3.0 Camera x 2
Projector typeStandard Projector x 1
Control BoxNone
Physical

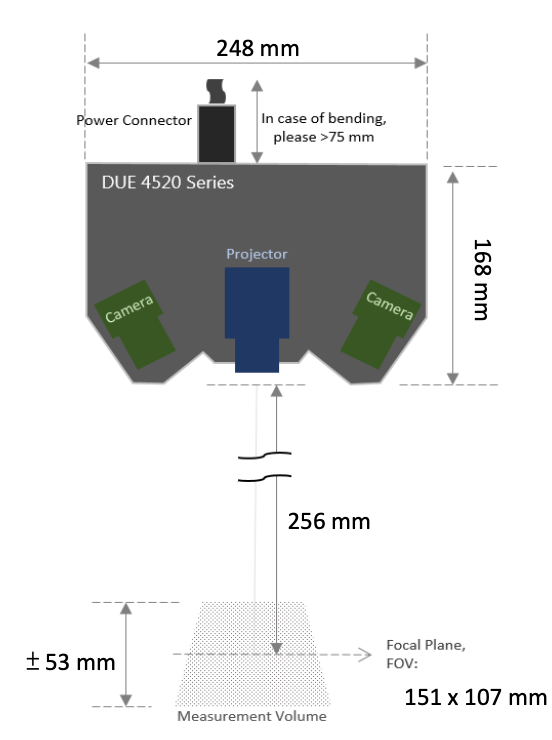

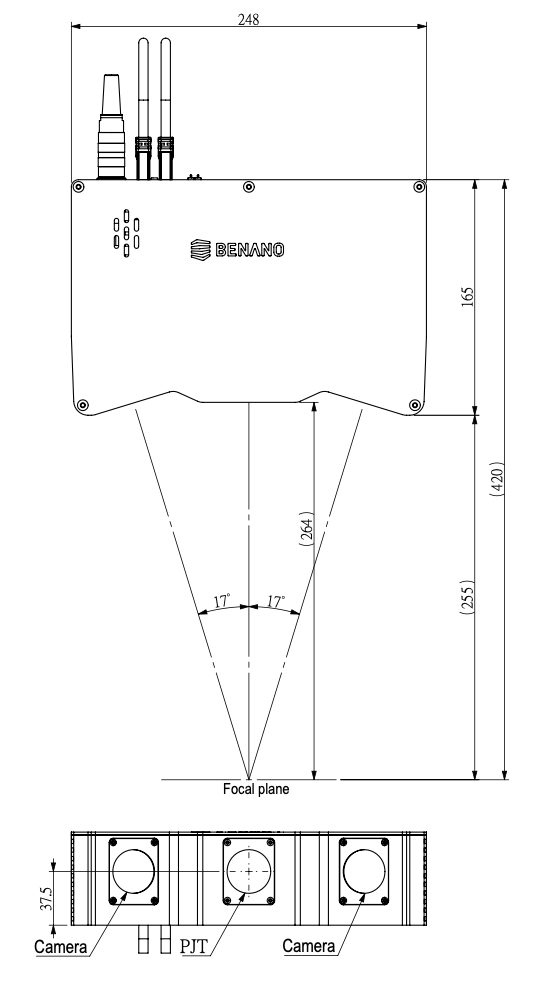

Model Size 248 x 168 x 65 mm
Weight 2.5 KG
Working Distance 256 mm
FOV 151 x 107 mm
Effective Depth +- 53 mm
XY Resolution at Focus 62 um
Z Resolution 2.7 um
Min 3D Grabbing Time 0.2 sec / FOV
Electrical Information
Power Connector 09-0331-00-12; Binder
Input Voltage DC 48V ± 10%
Current 3A
Trigger Type Serial & Parallel (1 trigger in + 3 trigger out)
Trig. Signal Type (In: LVDS / Out: LVDS)
Recommended PC
System Configuration 1
Support OS Windows 10 (64 bit Pro)
Recommended CPU Core i7 8700
Graphic Card GTX 1650 / 4G (Optional)
Minium RAM32 GB
System Configuration 2
Support OS Windows 7 SP1 / Windows 10 (64 bit Pro)
Recommended CPU Xeon E5-1620V4
Graphic Card GTX 1650 / 4G (Optional)
Minimum RAM32 GB
