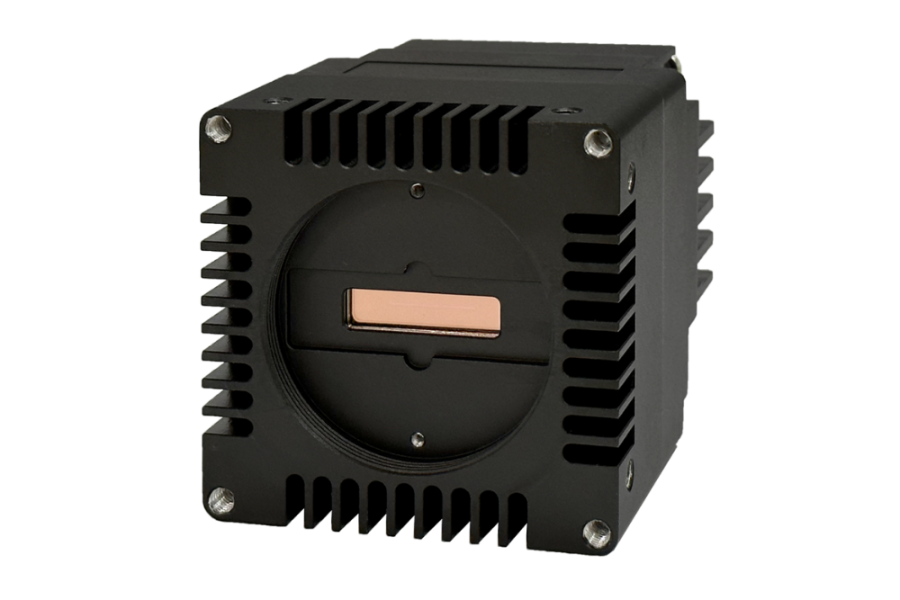

ITEK SWIR Line Scan Camera

Main > Product > SWIR Cameras > SWIR Line Scan Cameras > ITEK Line Scan Cameras

The ITEK TPL SWIR series is built on advanced InGaAs sensor technology and enhanced with thermoelectric (TEC) cooling, offering exceptional imaging performance and thermal stability. Tailored for demanding industrial and scientific environments, these cameras capture short-wave infrared (SWIR) images in the 900–1700 nm range with high sensitivity and precision. With resolution options from 0.5K to 2K, including a unique 2K model enabled by proprietary sensor design, the TPL SWIR series delivers clear, high-resolution images ideal for challenging inspection and quality control tasks.
Features Highlight
-
Advanced InGaAs sensor technology for superior SWIR imaging
-
Integrated TEC cooling ensures thermal stability and consistent performance
-
Spectral range: 900–1700 nm for deep material penetration and hidden feature detection
-
Proprietary sensor architecture enables unique 2K SWIR resolution
-
Low noise and high responsivity for improved image clarity
-
Suitable for scientific analysis, quality control, material inspection, and feature detection
| Model | Resolution | Pixel Size | Sensor Type | Max Line Rate | Mono/Color | Data Interface |
|---|---|---|---|---|---|---|
| TPL512GV-30KS2 | 512 * 2 | 25μm | Global Shutter InGaAs | 29.4kHz | Mono | GigE Vision |
| TPL512CL-30KS2 | 512 * 2 | 25μm | Global Shutter InGaAs | 29.4kHz | Mono | Camera Link |
| TPL1KGV-30KS | 1024 * 1 | 12.5μm | Global Shutter InGaAs | 29.4kHz | Mono | GigE Vision |
| TPL1KCL-40KS | 1024 * 1 | 12.5μm | Global Shutter InGaAs | 40kHz | Mono | Camera Link |
| TPL1KBGV-30KS | 1024 * 1 | 12.5μm | Global Shutter InGaAs | 29.4kHz | Mono | GigE Vision |
| TPL2KGV-40KS2 | 2048 * 1 | 12.5μm | Glogal Shutter InGaAs | 40kHz | Mono | GigE Vision |
| TPL2KCL-40KS2 | 2048 * 1 | 12.5μm | Glogal Shutter InGaAs | 40kHz | Mono | Camera Link |
