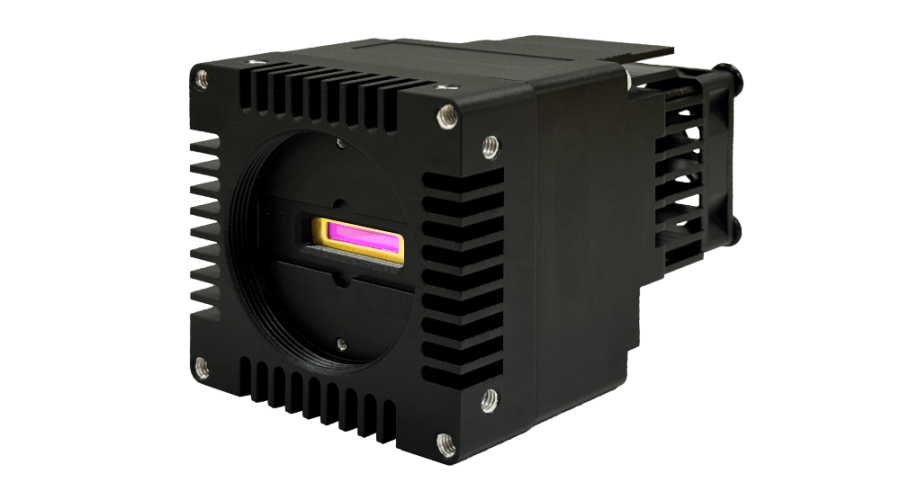

TPL2KGV-40KS2
Detects wavelengths from 400 nm to 1700 nm
Main > Product > SWIR Cameras > SWIR Line Scan Cameras > ITEK Line Scan Cameras > TPL2KGV-40KS2
TPL2KGV-40KS2
The Highlight Features
- Global Shutter InGaAs
- 2048 * 1 pixels, 12.5μm * 12.5μm
- Up to 40 kHz Line Rate
- High sensitivity and low noise
| Model | TPL2KGV-40KS2 |
|---|---|
| Sensor | Glogal Shutter InGaAs |
| Image Mode | Mono |
| Optical Size | 12.8 mm |
| Resolution | 2048 * 1 |
| Pixel Size | 12.5μm * 12.5μm |
| Max Line Rate | 40kHz |
| Bit Depth | 8/10/12/14 bit |
| Dynamic Range | ≥63. 1dB |
| Data Rate | 143 MB/s |
| Trigger Mode | Free Run / External Pulse |
| Exposure Control | Pulse Width / Program |
| Exposure Time | 2μs-1s(Step:0. 1μs) |
| Analog Gain | 1/5/25/50x |
| Digital Gain | 0.01-8.00x |
| Data Interface | GigE Vision |
| Lens Mount | M42 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2.0A |
| Power Dissipation | TEC On: 16.2 W TEC Off: 6.2W |
| Dimensions | 60.0mm(W) x 60.0mm(H) x 75.76mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
