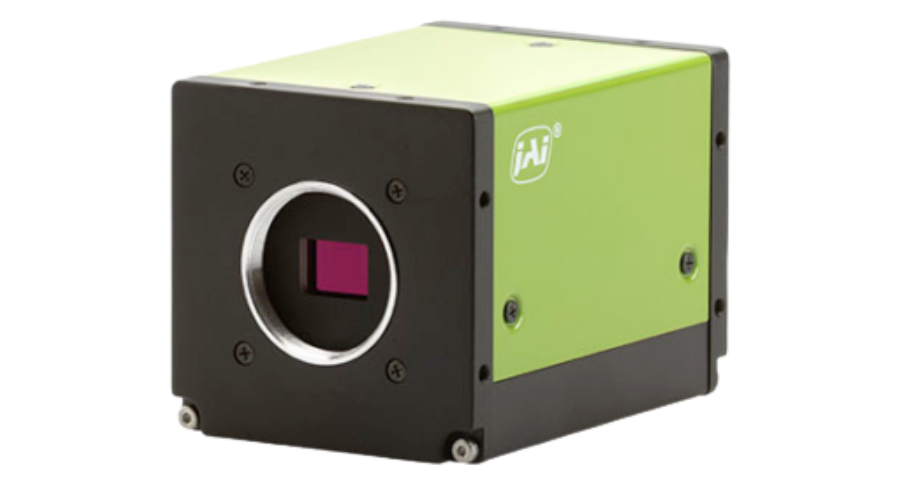

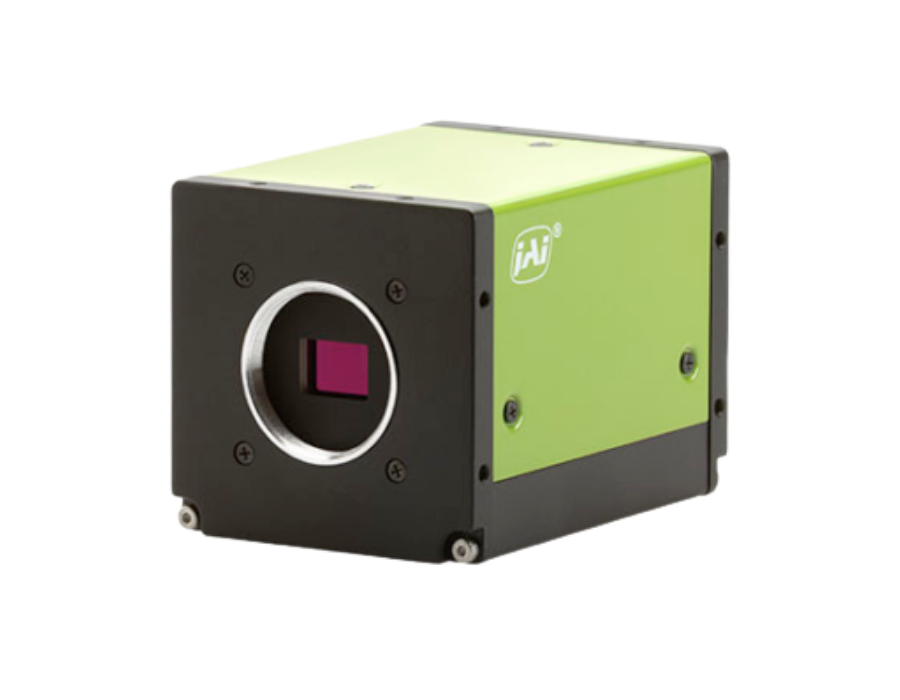

JAI AP-5100T-5GE
The JAI Apex AP-5100T-5GE is a 3-CMOS RGB prism-based industrial area scan camera delivering 3 × 5.1 MP at 32 fps. Designed for color-critical applications, it offers superior color accuracy and resolution compared to Bayer cameras—ideal for display, PCB, MLCC, electronics, food, and pharmaceutical inspection.
Features
| Model Name | Apex AP-5100T-5GE |
|---|---|
| Type | Area Scan |
| Color / Mono | Color |

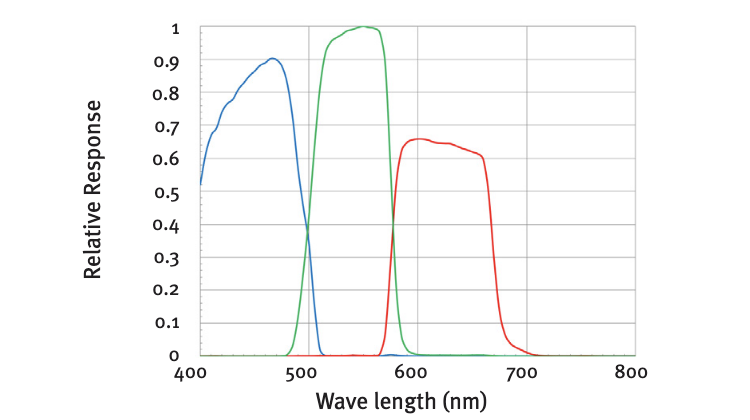

| Light Spectrum | Visible |
| Resolution | 5.1 MP |
| Resolution WxH | 2464 x 2056 px |
| Frame rate / Line rate | 32 fps |
| ROI | Yes |
| Interface | 5 Gbps GigE Vision |
| Sensors | 3xCMOS RGB |
| Sensor Name | IMX548 Pregius S |
| Optical Format | 1/1.8 inch |
| Cell Size WxH | 3.45 x 3.45 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 8.8 mm |
| Active Sensor Dimensions WxH | 6.77 x 5.66 mm |

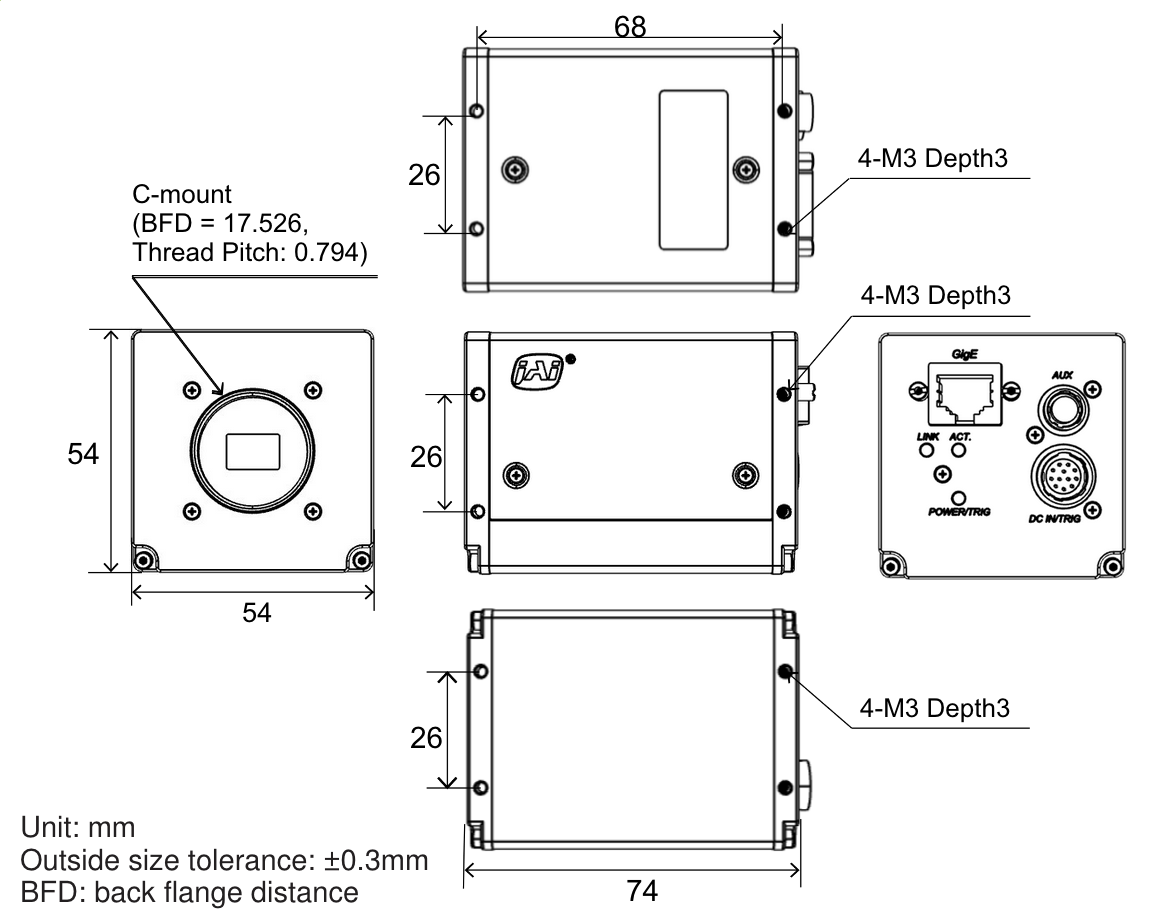

| Camera Dimensions HxWxL | 54 x 54 x 74 mm |
| Weight | 215 g |
| Video Output | 8/10/12-bit * |
| Lens Mount | C-mount |
| Power Consumption | 7.6 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
