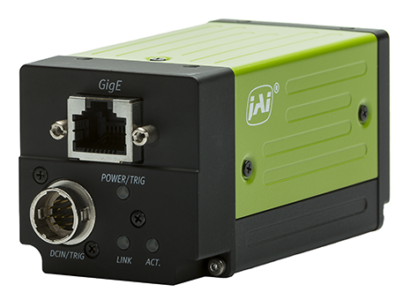

JAI Apex AP-1600T-PGE

The Apex AP-1600T-PGE is a 3-CMOS prism-based industrial R-G-B area scan camera delivering 3 x 1.6 megapixels at 24 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.

Features

  • 3-CMOS prism-based RGB camera.
  • 3 x IMX273 Sony Pregius sensors.
  • True raw image data (Red, Green and Blue).
  • GigE Vision interface.
  • Analog gain and exposure setting for each individual R-G-B channel.
  • Flexible color space conversion.
  • Single and Multi-Region-of-Interest (ROI).
  • Automatic level control.
  • Shading correction on ROI.
  • Color temperature presets.
  • Color enhancer tool.
  • Edge enhancer tool.
  • Pixel binning (2×1, 1×2 and 2×2).
  • Chunk data for each image.
  • Robust and compact design (Shock 50G/Vibration 3G).
Model NameJAI Apex AP-1600T-PGE
TypeArea Scan
Color / MonoColor
Light SpectrumVisible
Resolution1.6 MP
Resolution WxH1456 x 1088 px
Frame rate / Line rate24 fps
ROIYes
InterfaceGigE Vision 1-Cable (PoE)
Sensors3xCMOS RGB
Sensor NameIMX273
Optical Format1/2.9 inch
Cell Size WxH3.45 x 3.45 µm
Shutter typeGlobal shutter
Sensor Diagonal6.3 mm
Active Sensor Dimensions WxH5.0 x 3.8 mm
Camera Dimensions HxWxL44 x 44 x 84 mm
Weight
200 g
Video Output8/10/12-bit *
Lens MountC-mount
Power Consumption7.50 Watt
Operating Temperature (ambient)-5°C to +45°C
