JAI GO-5000M-PMCL-UV
Compact industrial area scan camera
Main > Product > Area Scan camera > JAI Industrial Machine Vision Cameras > JAI Go UV Series > GO-5000M-PMCL-UV
JAI GO-5000M-PMCL-UV

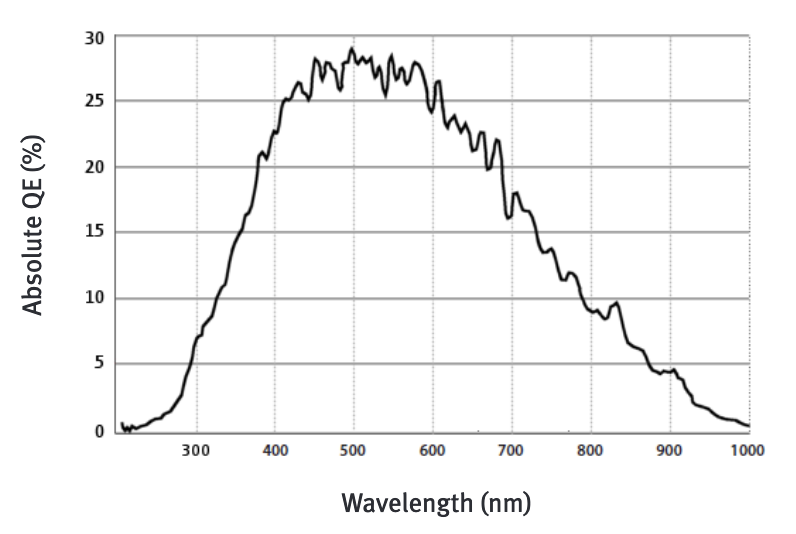

The GO-5000M-PMCL-UV is a compact industrial area scan camera delivering UV imaging capability along with an excellent blend of size, versatility, performance, and price. It delivers 5-megapixel output at up to 107 fps, with flexible ROI and binning capabilities that enable the camera to be tailored to various UV imaging applications in the 300 to 400 nm range.
| Model | GO-5000M-PMCL-UV |
|---|---|
| Type | Area Scan |
| Color/Mono | Mono |
| Light Spectrum | Visible + UV |
| Resolution | 5.0 MP |
| Resolution WxH | 2560 x 2048 px |
| Frame rate / Line rate | 107 fps |
| ROI | Yes |
| Interface | Mini Camera Link (PoCL) |
| Sensors | 1XCMOS |
| Sensor Name | Lince5M |
| Optical Format | 1 inch |
| Cell Size WxH | 5.0 x 5.0 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 16.4 mm |
| Active Sensor Dimensions WxH | 12.8 x 10.2 mm |
| Camera Dimensions HxWxL | 29 x 29 x 51.5 mm |
| Weight | 46 g |
| Video Output | 8/10/12-bit |
| Lens Mount | C-mount |
| Power Consumption | 3.19 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
