LIC-X256N, LIC-8, LIC-16
LIC-2256N/LIC-4256N
LIC-8/LIC-16
The Highlight Features
In contrast to the LIC-VA the light intenity controllers LIC-X256N, LIC-8 and LIC-16 offer the possibility of communication. Via RS232-interface individual output-channels can be controlled. Intensities can be set and activated by software or manually. In addition, a display allows to adjust the brightness accurately. Like the LIC-VA, this series is also equipped with jumpers, which switch between the Continuous/Trigger- Mode (12/24 Volt) and the Strobe-Mode (48 Volt). In Strobe-Mode, the Switch-ON-Time is limited to 7.5ms by the hardware side. A special feature of the LIC-X256N is that different voltages can be connected. Thus it is possible to operate a controller with 12 volt and 24 volt lights.
| Model | Input/output voltage | Quantity Output Channel | Output Rating per Channel (w) |
|---|---|---|---|
| LIC-2256N | 12 - 48 | 2 | 40 |
| LIC-2256N-4A | 12 - 48 | 2 | 120 |
| LIC-4256N | 12 - 48 | 4 | 40 |
| LIC-4256N-4A | 12 - 48 | 5 | 120 |
| LIC-8 | 12 - 48 | 8 | 40 |
| LIC-16 | 12 - 48 | 16 | 40 |
Optional Accessories : Mounting rail Adapter for LIC-X256N

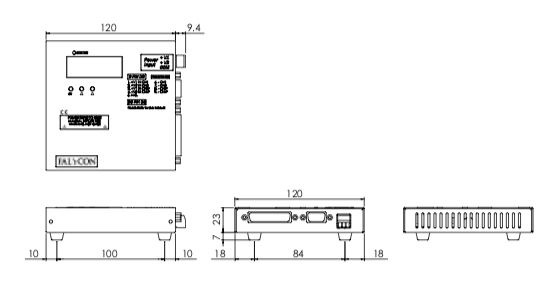

LIC-2256N/LIC-4256N

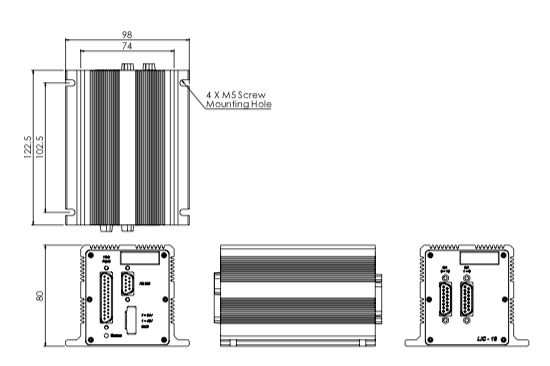

LIC-8/LIC-16
